Home › Isuzu › 2003 › Axiom Base, RWD › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics › Diagnostic Tests › DTC P1280: Accelerator Position Sensor 2 Circuit Fault › Diagnostic Procedure

Diagnostic Procedure

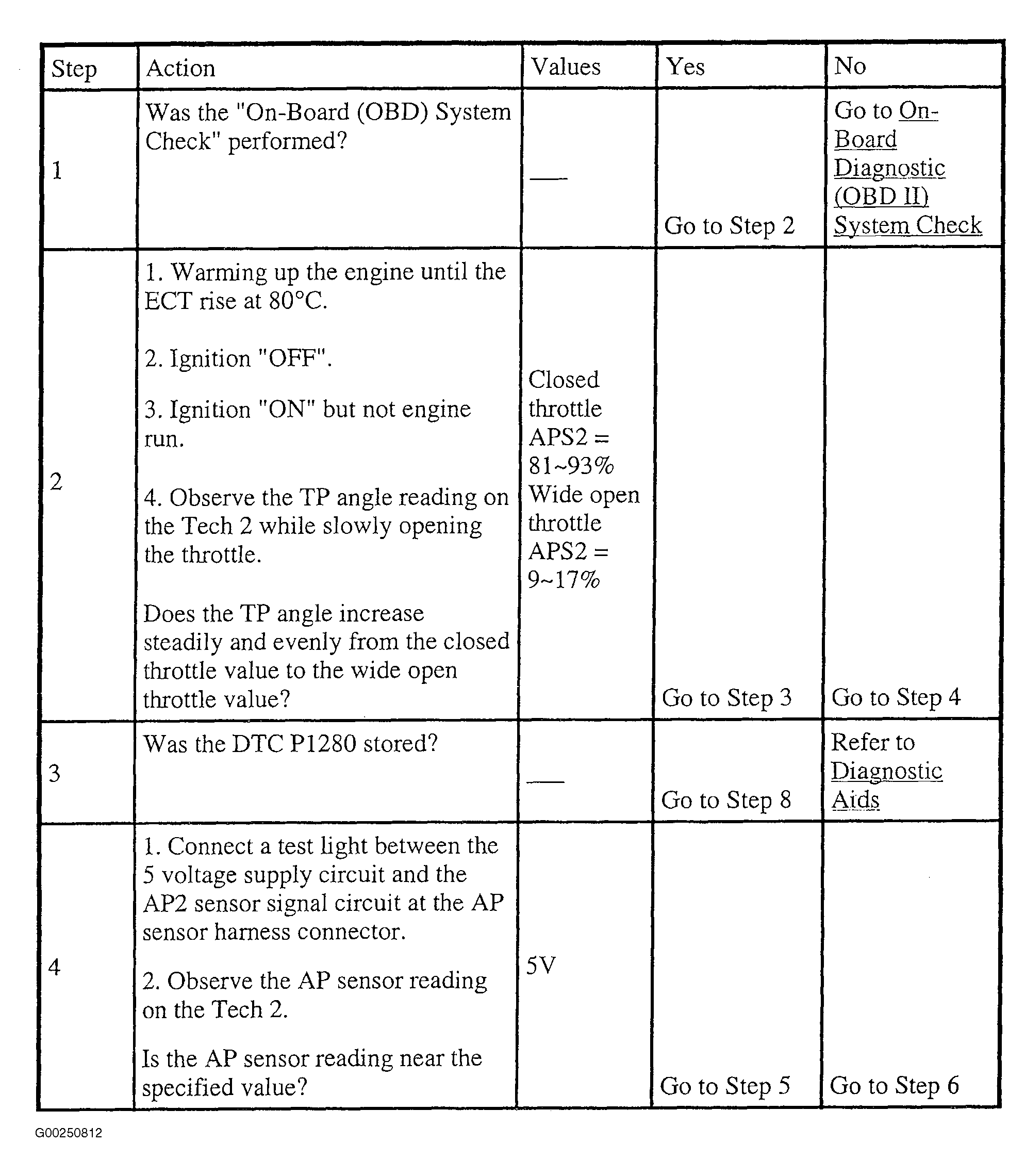

Fig 1: DTC P1280: AP Sensor 2 Circuit Fault (Steps 1-4)
G00250812Courtesy of ISUZU MOTOR CO.

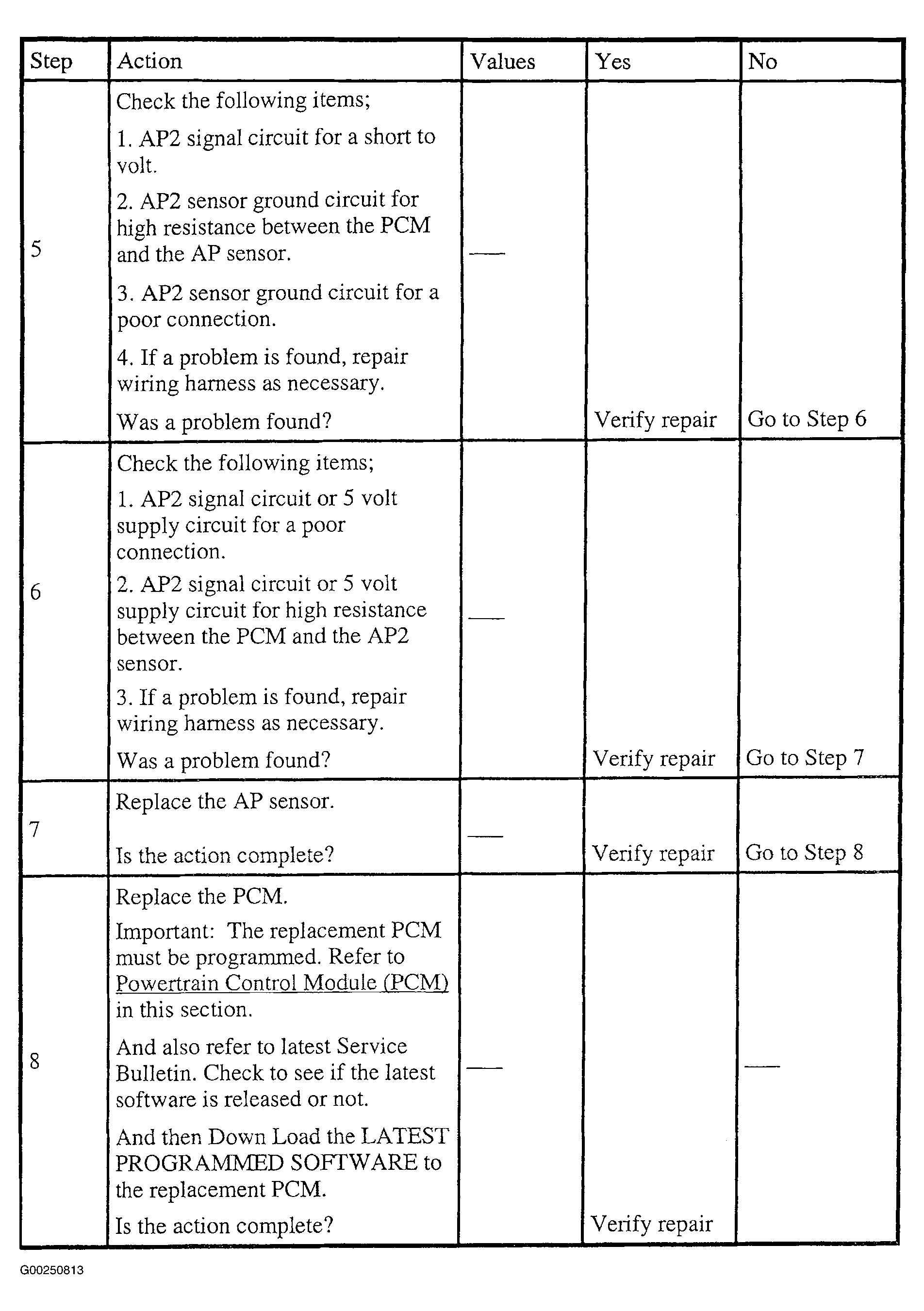

Fig 2: DTC P1280: AP Sensor 2 Circuit Fault (Steps 5-8)
G00250813Courtesy of ISUZU MOTOR CO.
