Diagnostic Procedure

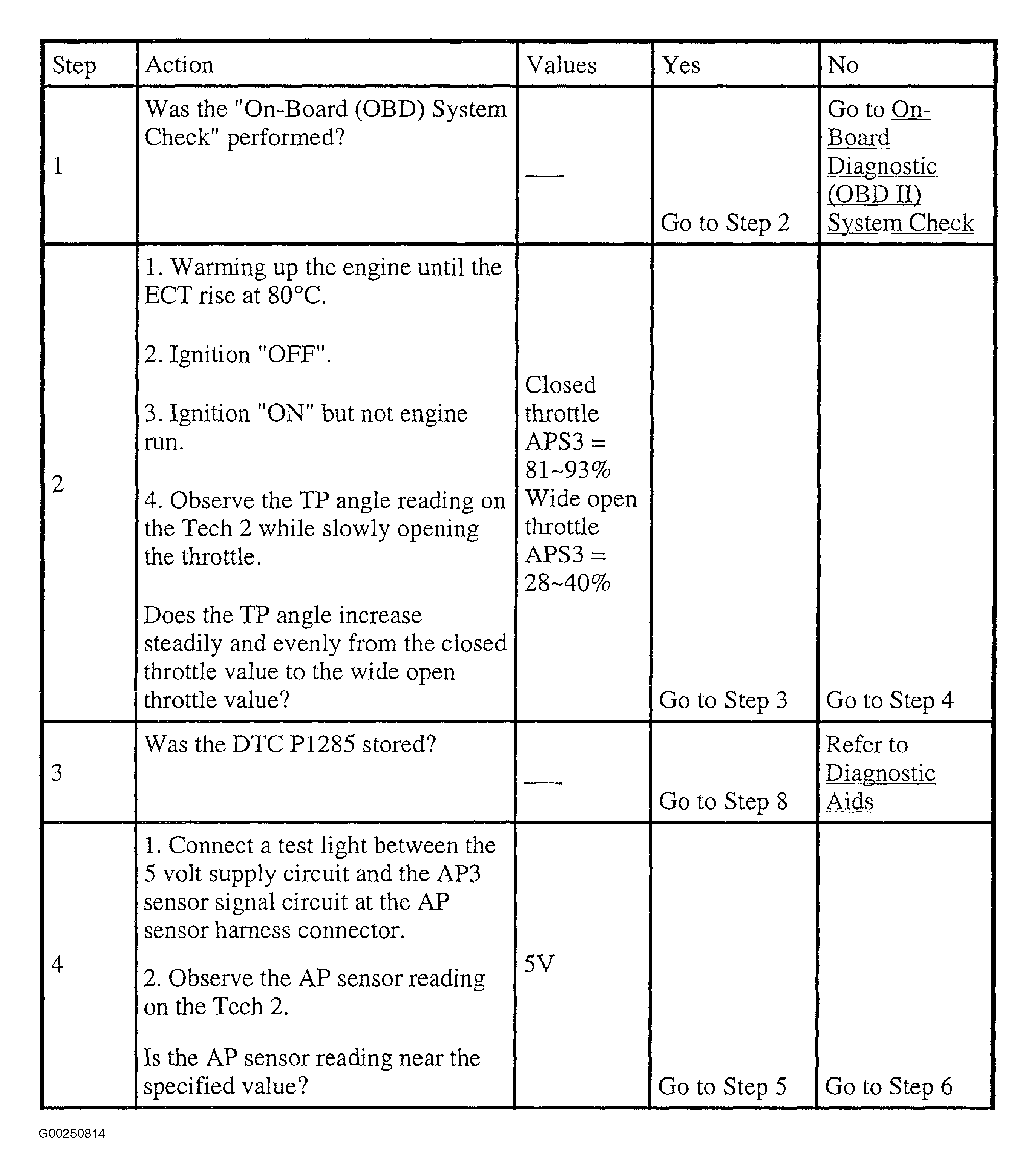

Fig 1: DTC P1285: AP Sensor 3 Circuit Fault (Steps 1-4)
G00250814Courtesy of ISUZU MOTOR CO.

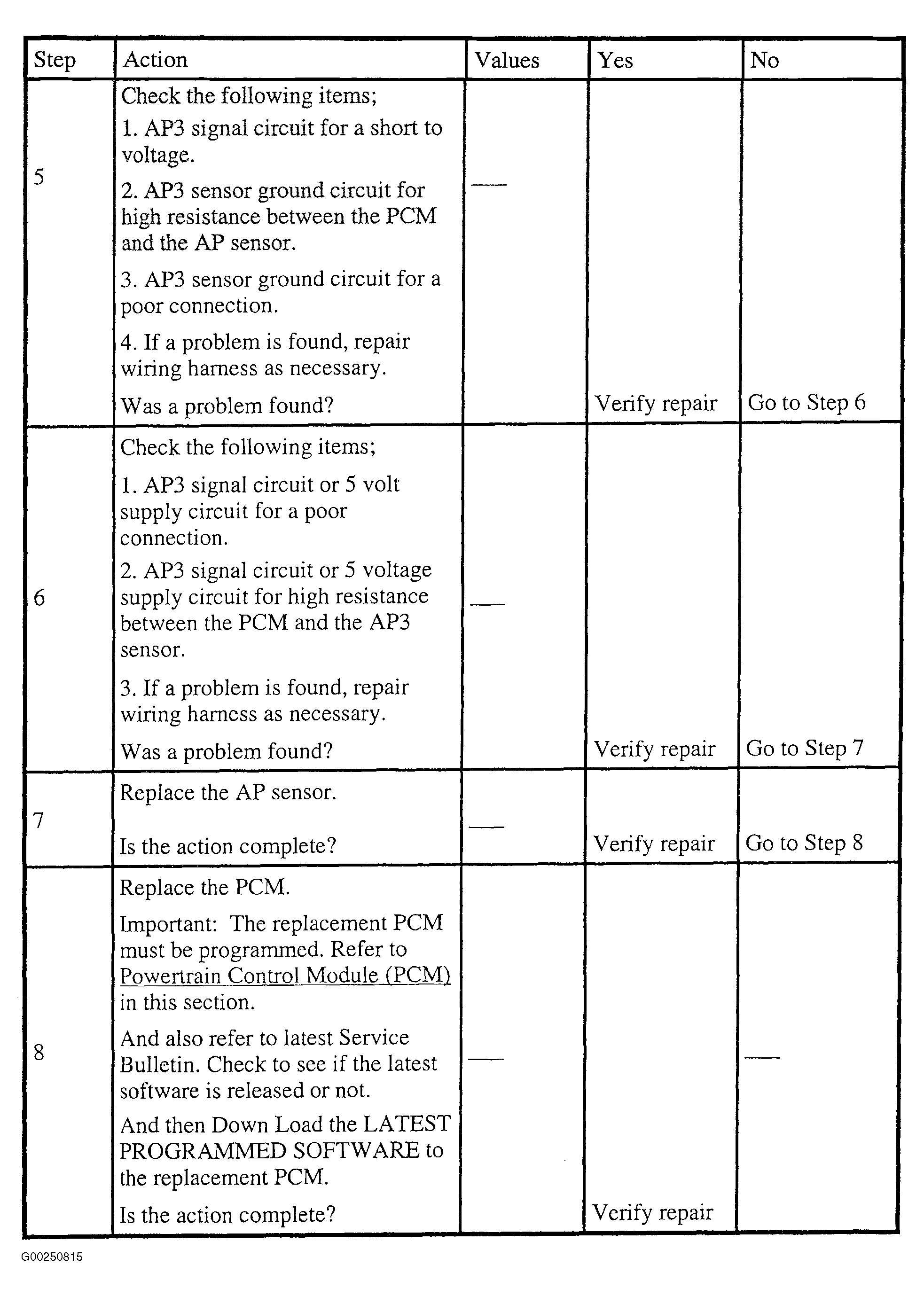

Fig 2: DTC P1285: AP Sensor 3 Circuit Fault (Steps 5-8)
G00250815Courtesy of ISUZU MOTOR CO.
