Diagnostic Procedure

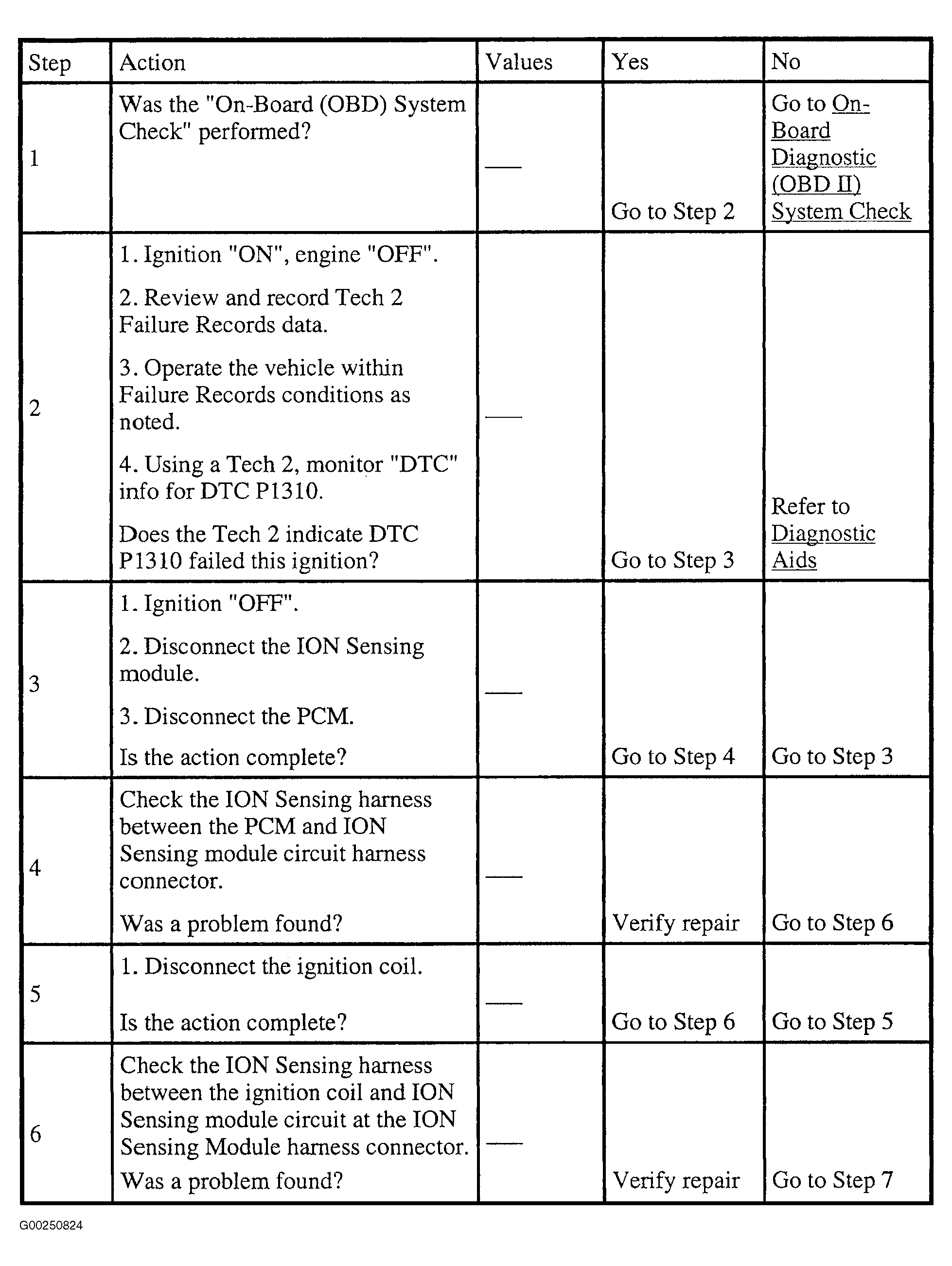

Fig 1: DTC P1310: ION Sensing Module Diagnostic (Steps 1-6)
G00250824Courtesy of ISUZU MOTOR CO.

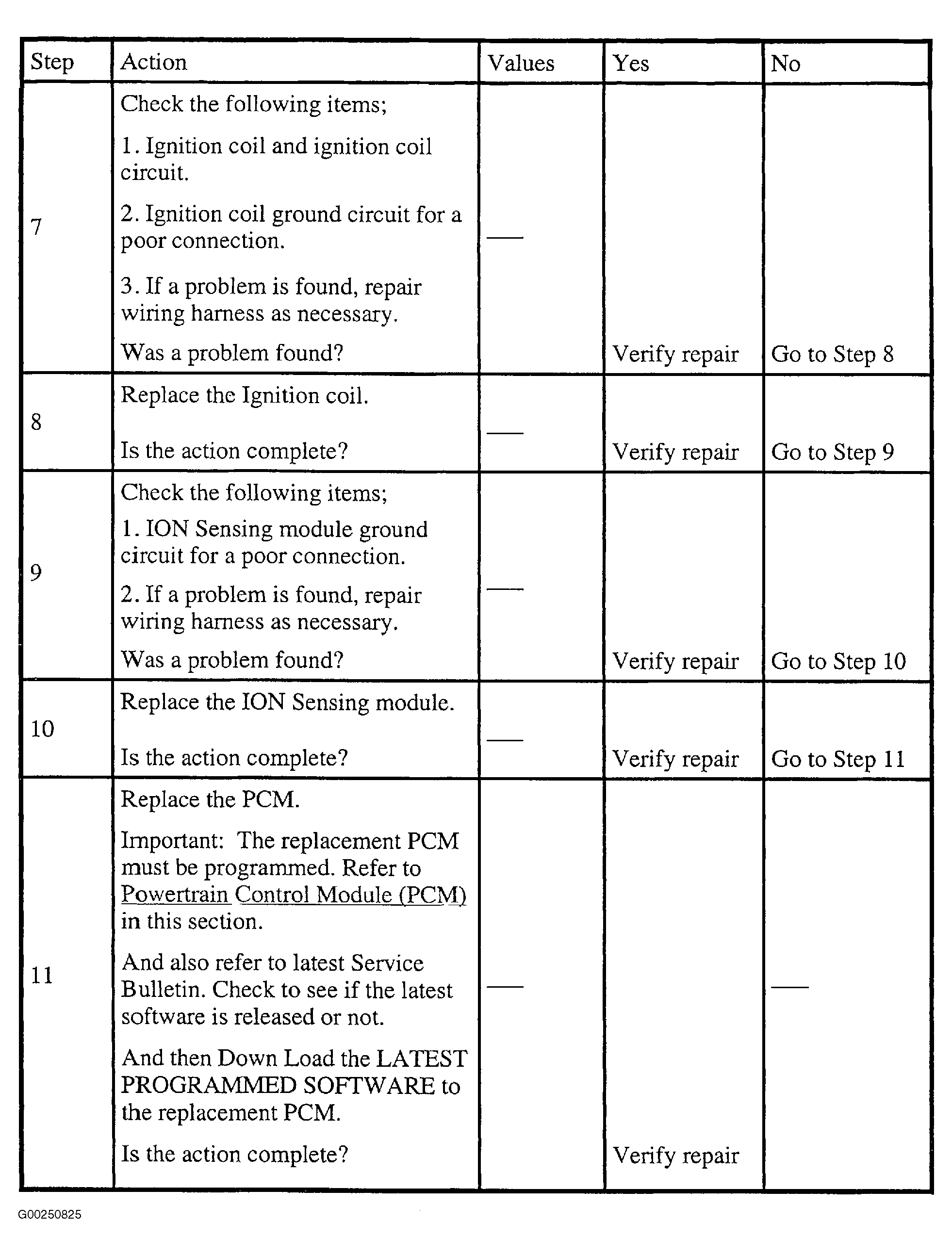

Fig 2: DTC P1310: ION Sensing Module Diagnostic (Steps 7-11)
G00250825Courtesy of ISUZU MOTOR CO.
