FixVault
Home
›
Isuzu
›
2003
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
System Tests
›
Malfunction Indicator Light On Steady
›
Diagnostic Procedure
Diagnostic Procedure

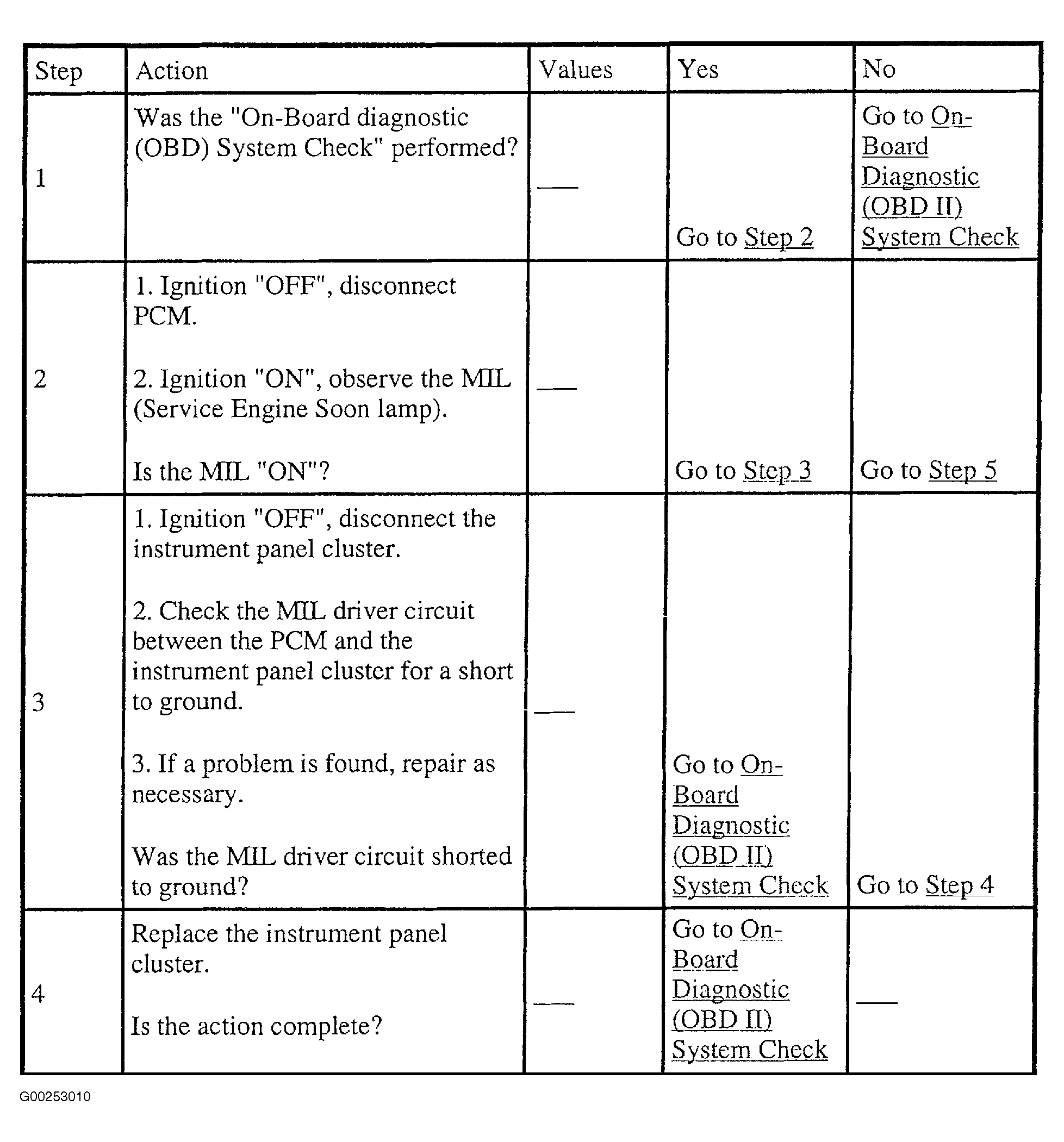

Fig 1: Malfunction Indicator Light On Steady (Steps 1-4)
Courtesy of ISUZU MOTOR CO.

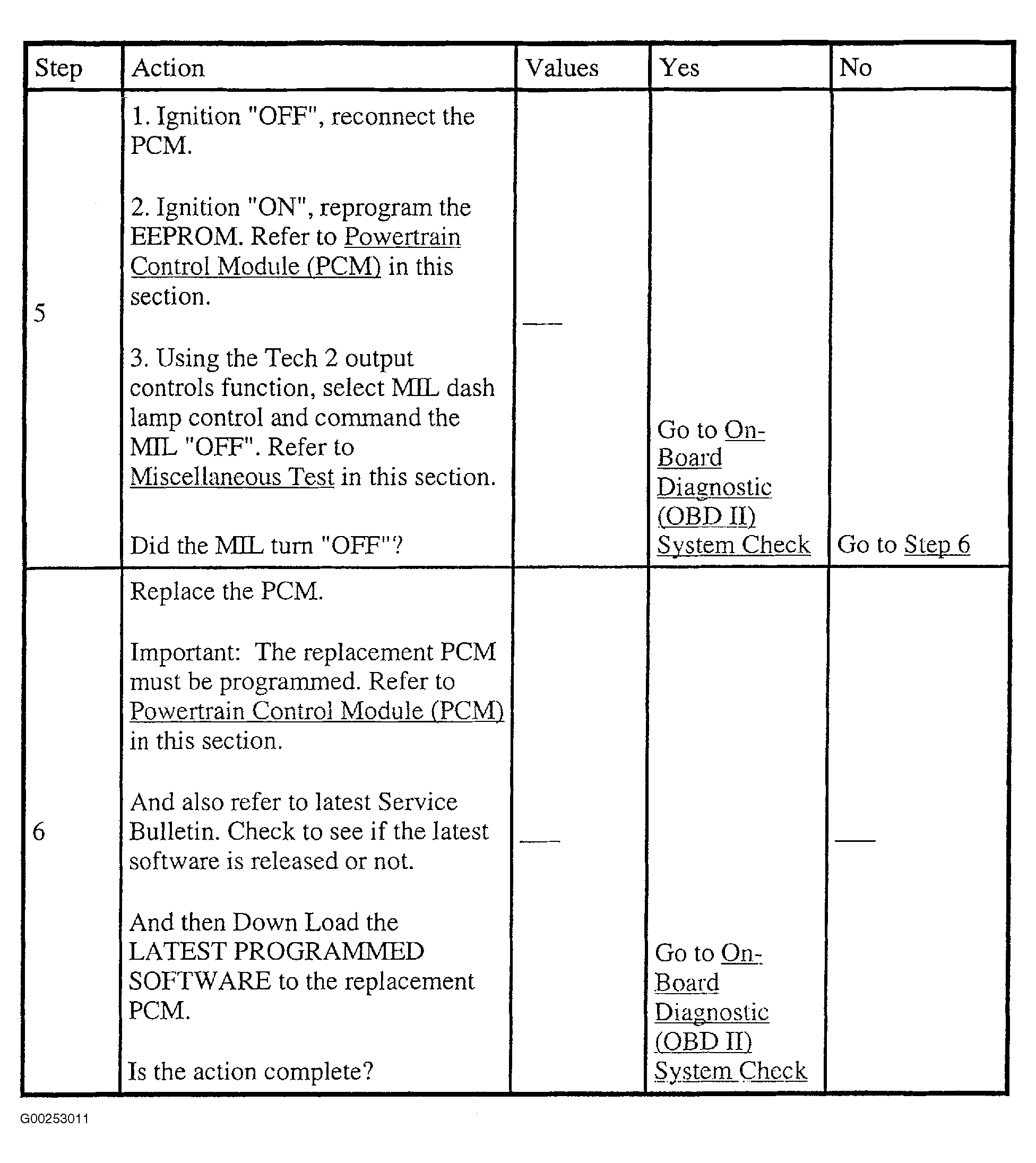

Fig 2: Malfunction Indicator Light On Steady (Steps 5 & 6)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
