No Malfunction Indicator Light (Check Engine Light)
›
Diagnostic Procedure
Diagnostic Procedure

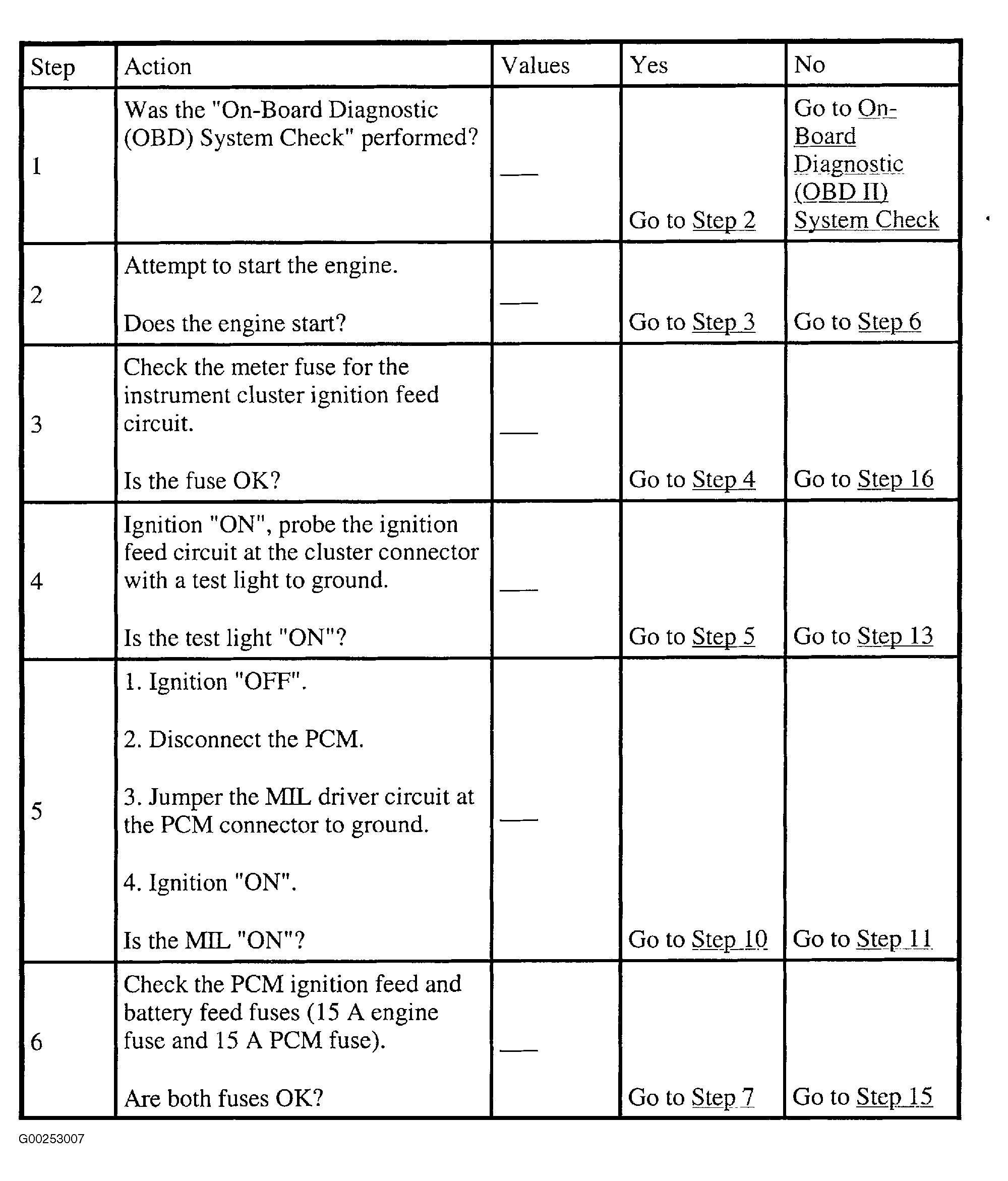

Fig 1: No Malfunction Indicator Light (Steps 1-6)
Courtesy of ISUZU MOTOR CO.

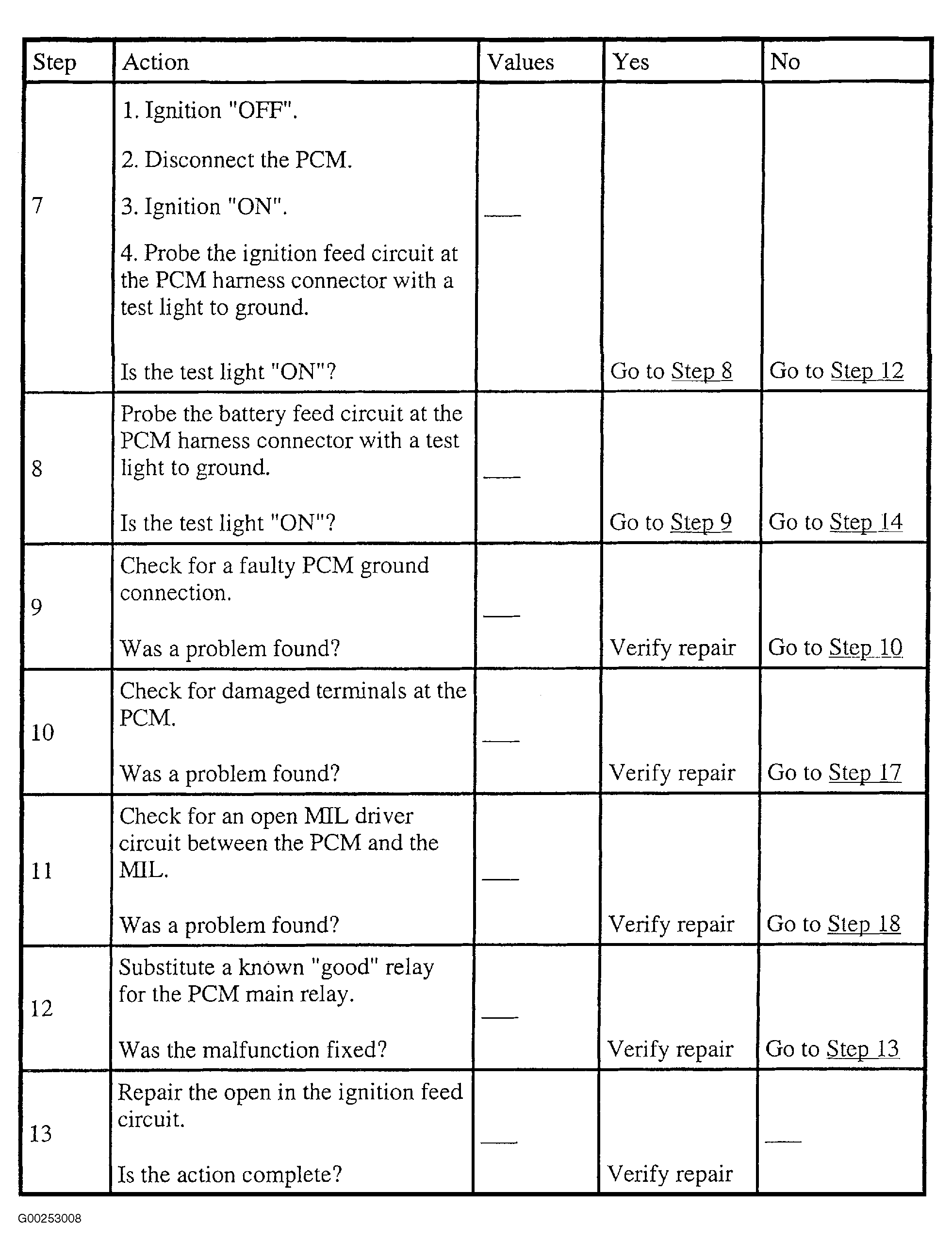

Fig 2: No Malfunction Indicator Light (Steps 7-13)
Courtesy of ISUZU MOTOR CO.

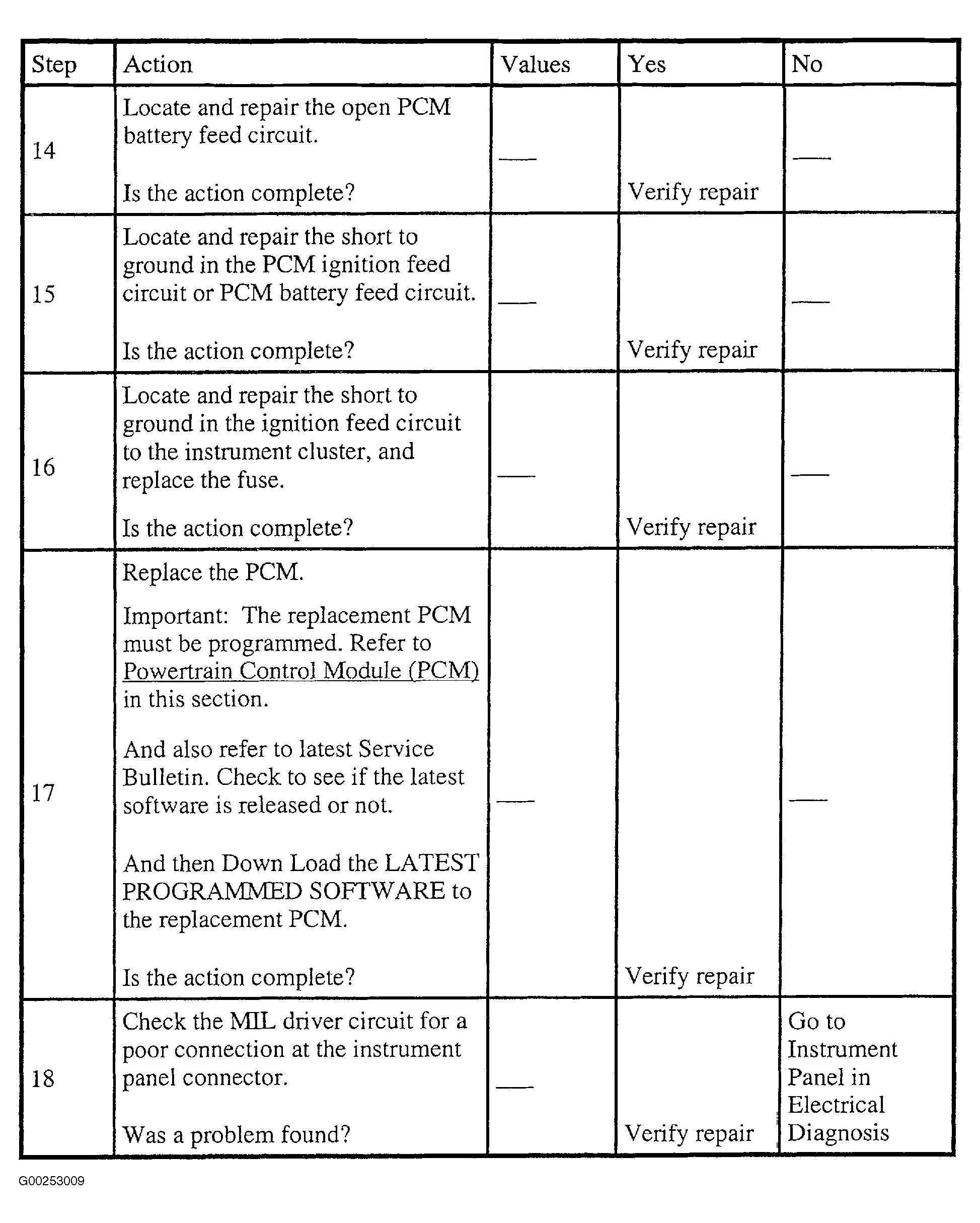

Fig 3: No Malfunction Indicator Light (Steps 14-18)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
