Engine Controls - Self-Diagnostics
›
System Tests
›
Reduced Power Lamp On Steady
›
Diagnostic Procedure
Diagnostic Procedure

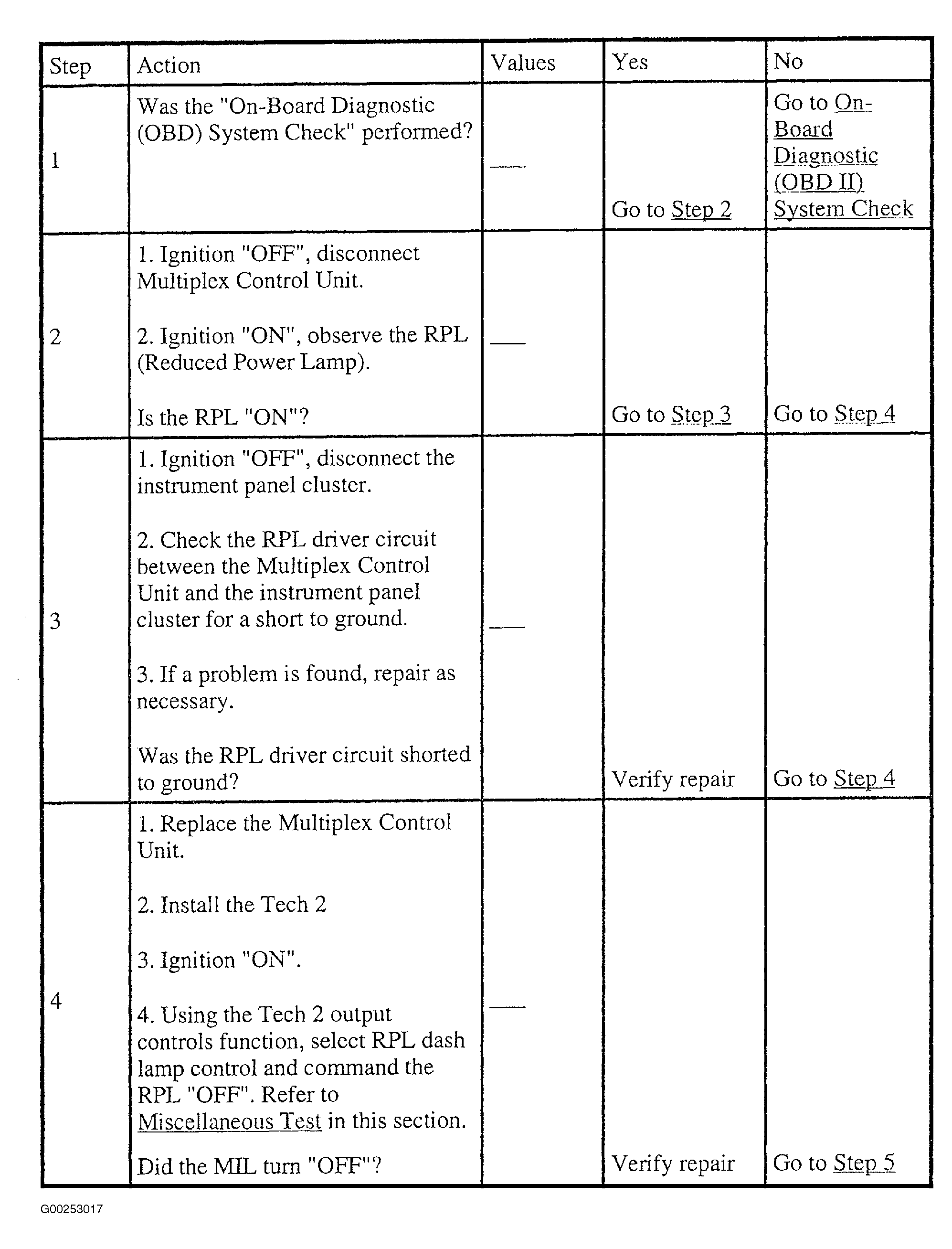

Fig 1: Reduced Power Lamp On Steady (Steps 1-4)
Courtesy of ISUZU MOTOR CO.

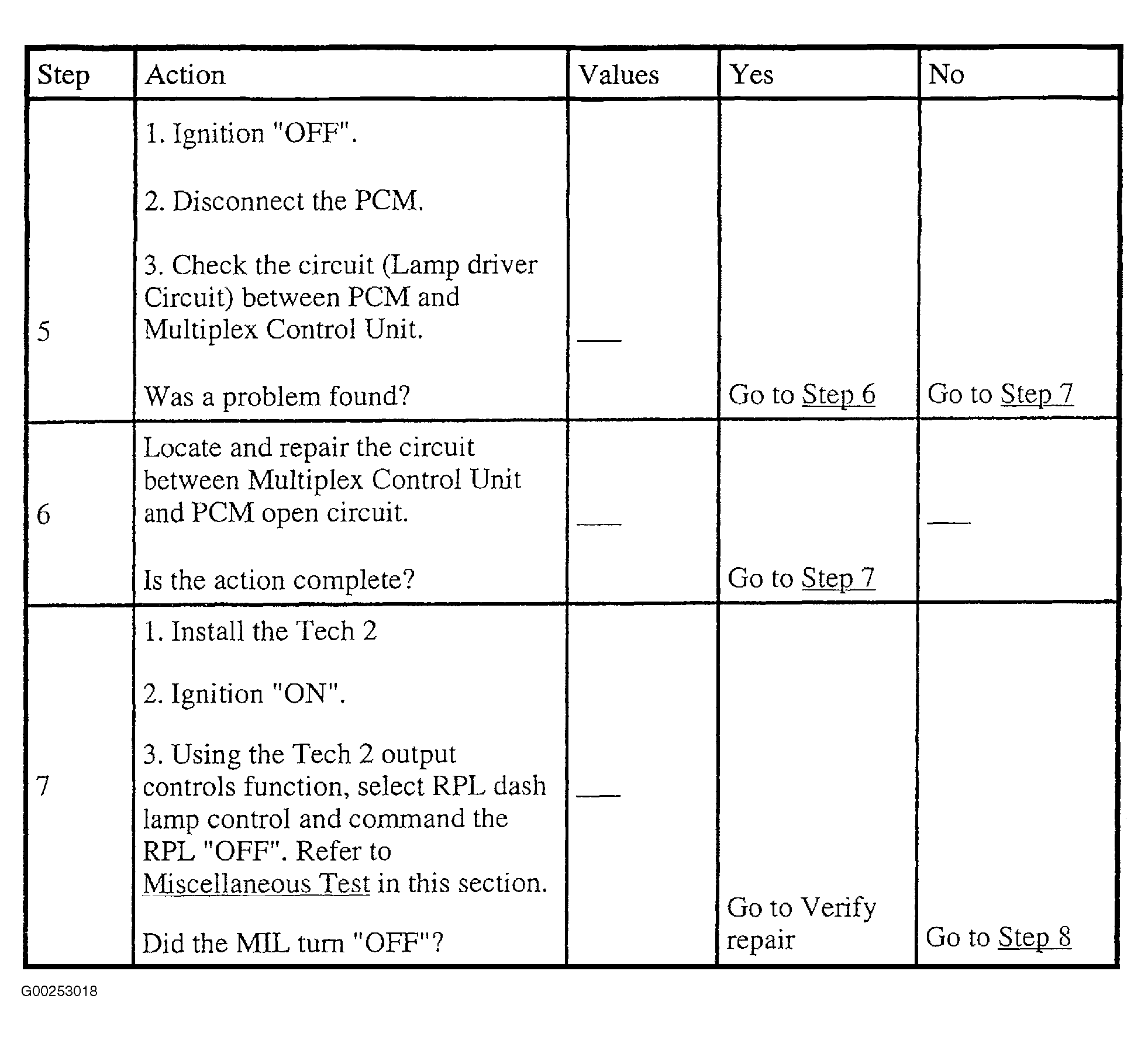

Fig 2: Reduced Power Lamp On Steady (Steps 5-7)
Courtesy of ISUZU MOTOR CO.

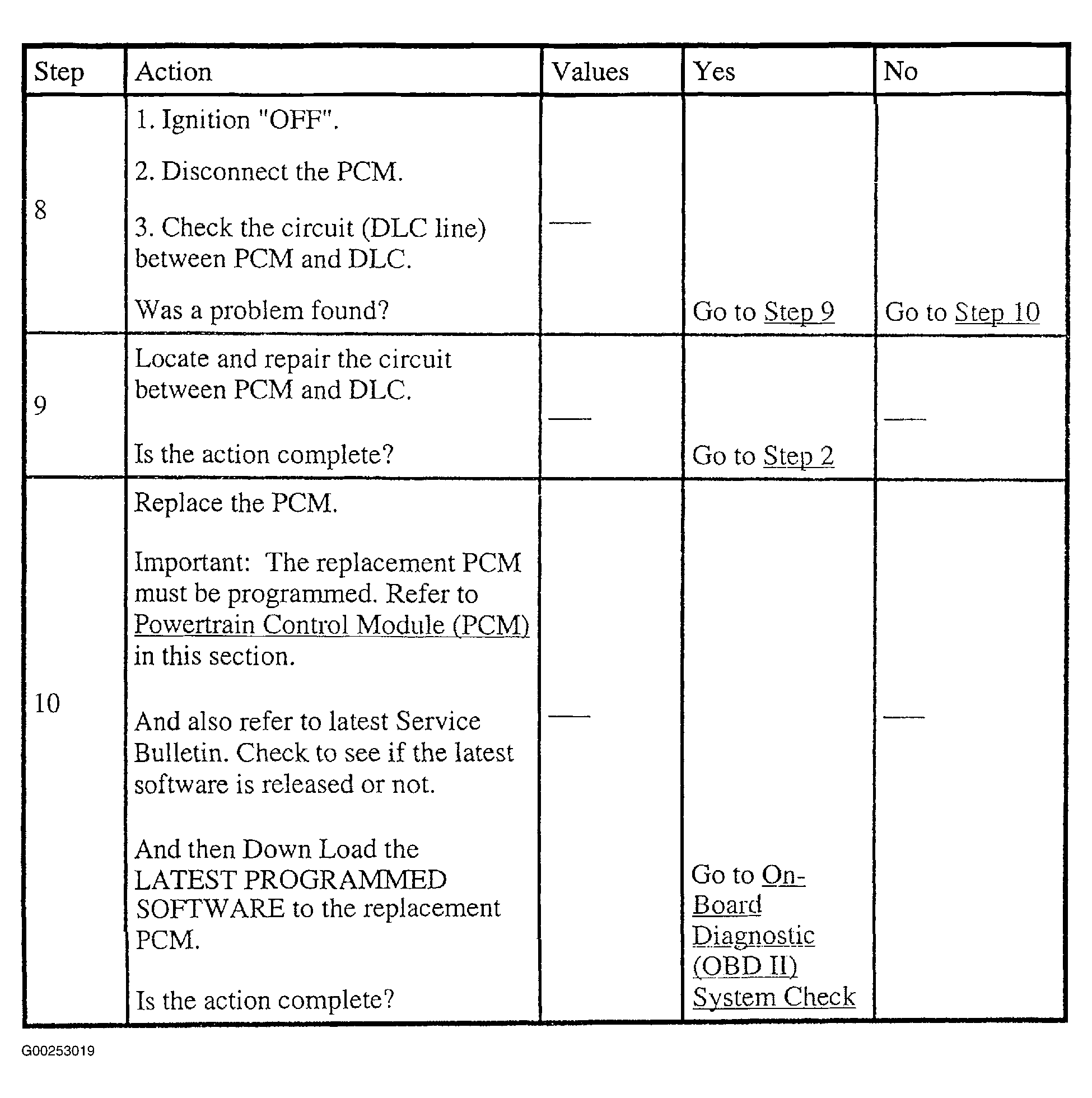

Fig 3: Reduced Power Lamp On Steady (Steps 8-10)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
