DTC P0706: Transmission Range Switch (Mode Switch) Performance
›
Notes
DTC P0706: Transmission Range Switch (Mode Switch) Performance: Notes

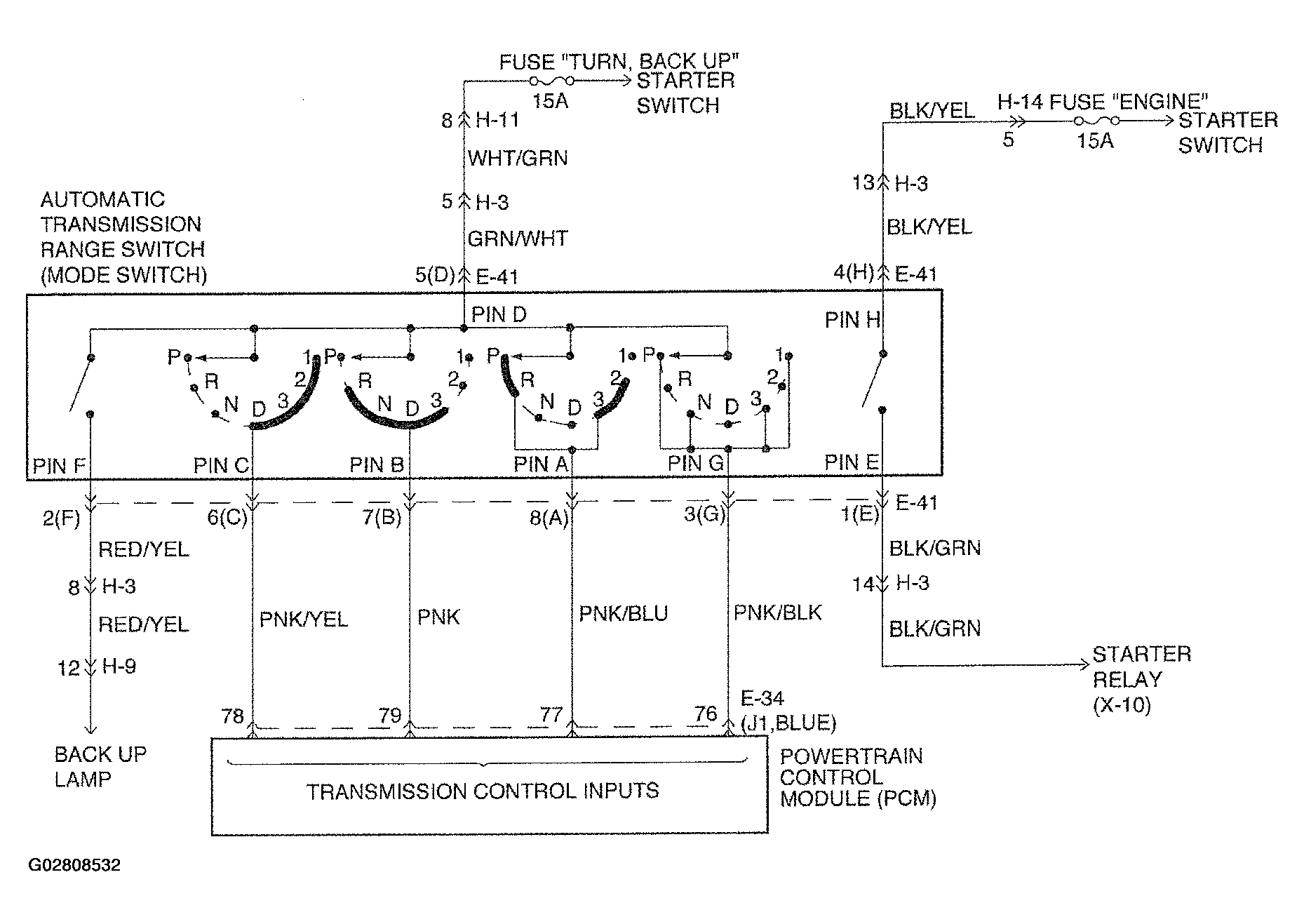

Fig 1: DTC P0706 Transmission Range Switch (Mode Switch) Performance Circuit Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
