DTC P0712: Transmission Fluid Temperature (TFT) Sensor Circuit Low Input: Notes

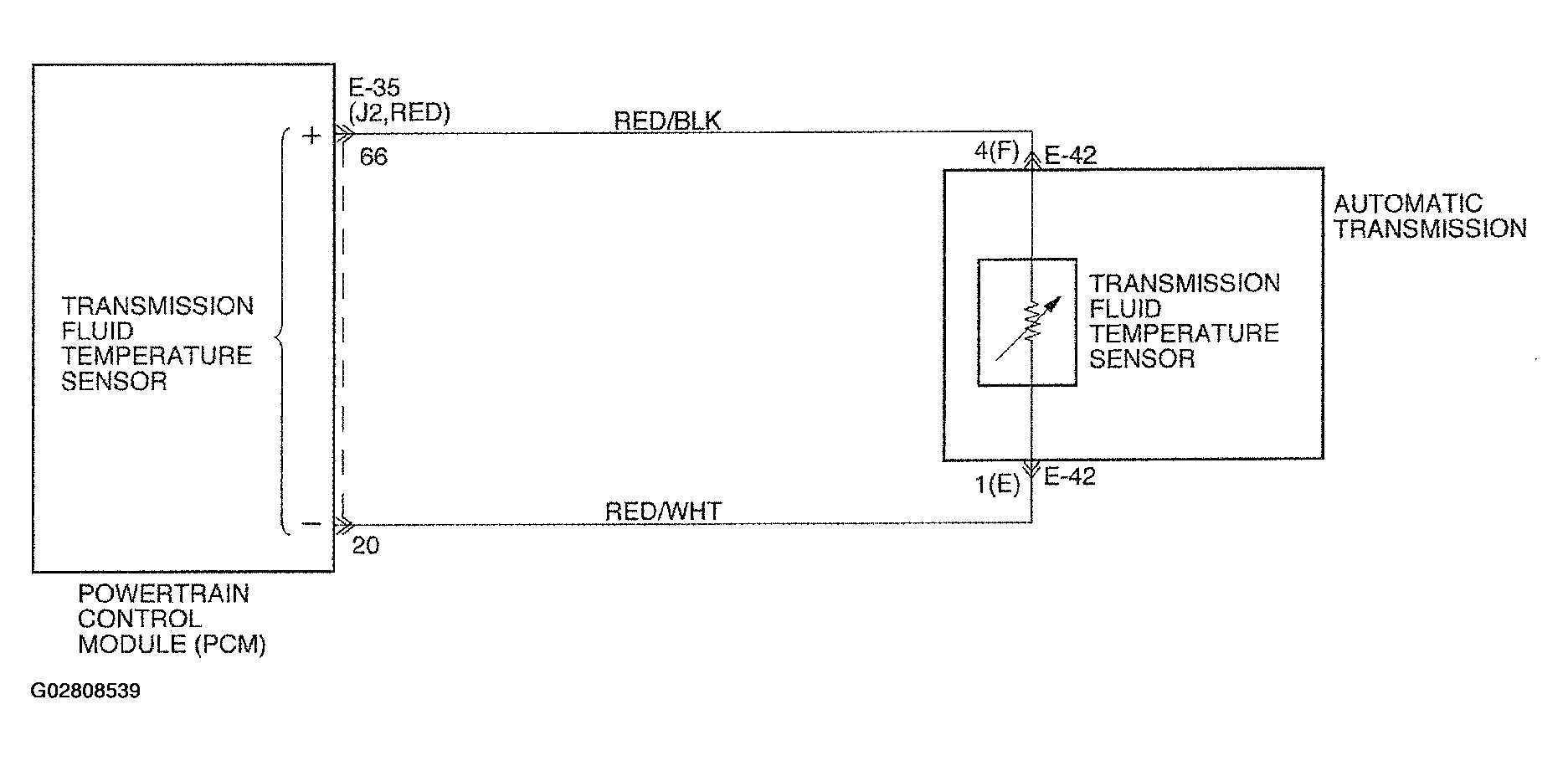

Fig 1: DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input Circuit Diagram
G02808539Courtesy of ISUZU MOTOR CO.
