DTC P0722: Automatic Transmission Output Speed Sensor (OSS) Low Input: Notes

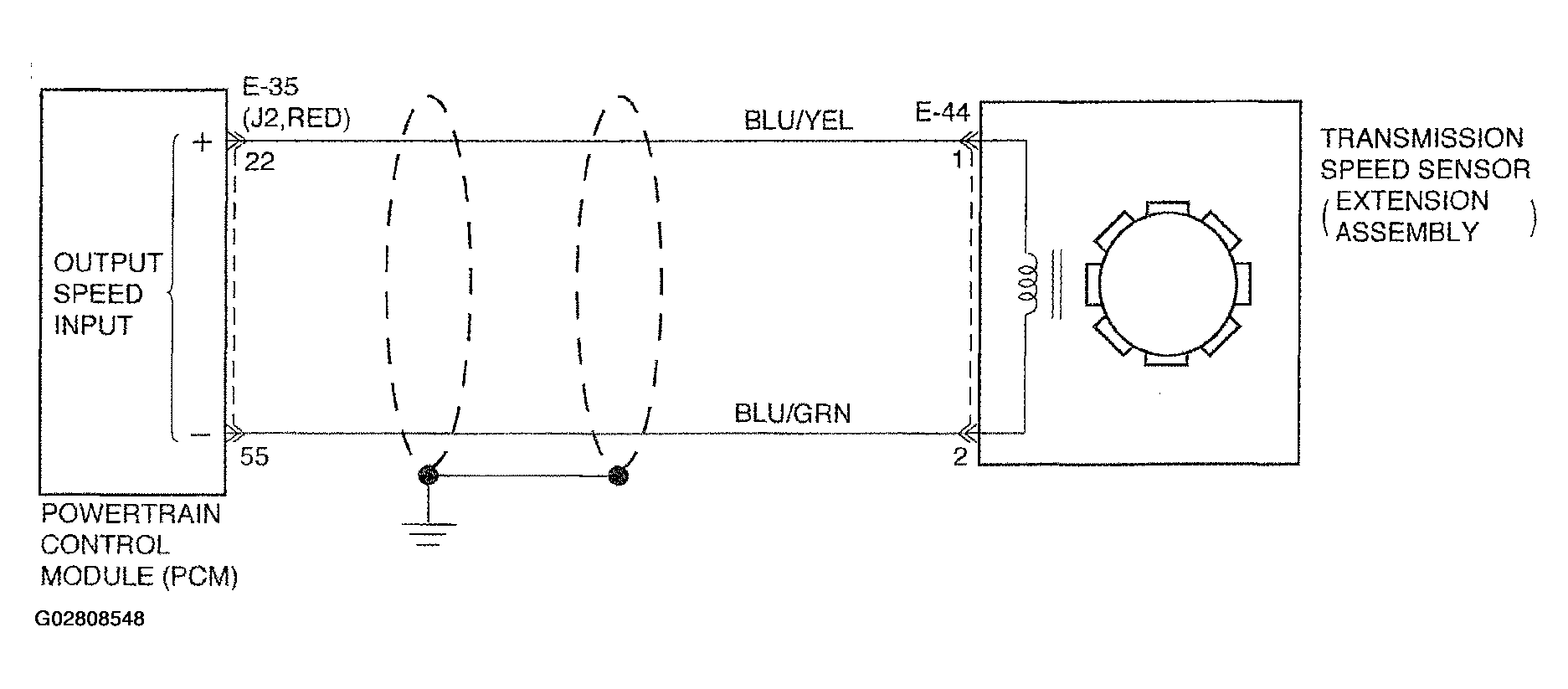

Fig 1: DTC P0722 Automatic Transmission Output Speed Sensor Low Input Circuit Diagram
G02808548Courtesy of ISUZU MOTOR CO.
