DTC P0753: Shift Solenoid A Electrical
›
Notes
DTC P0753: Shift Solenoid A Electrical: Notes

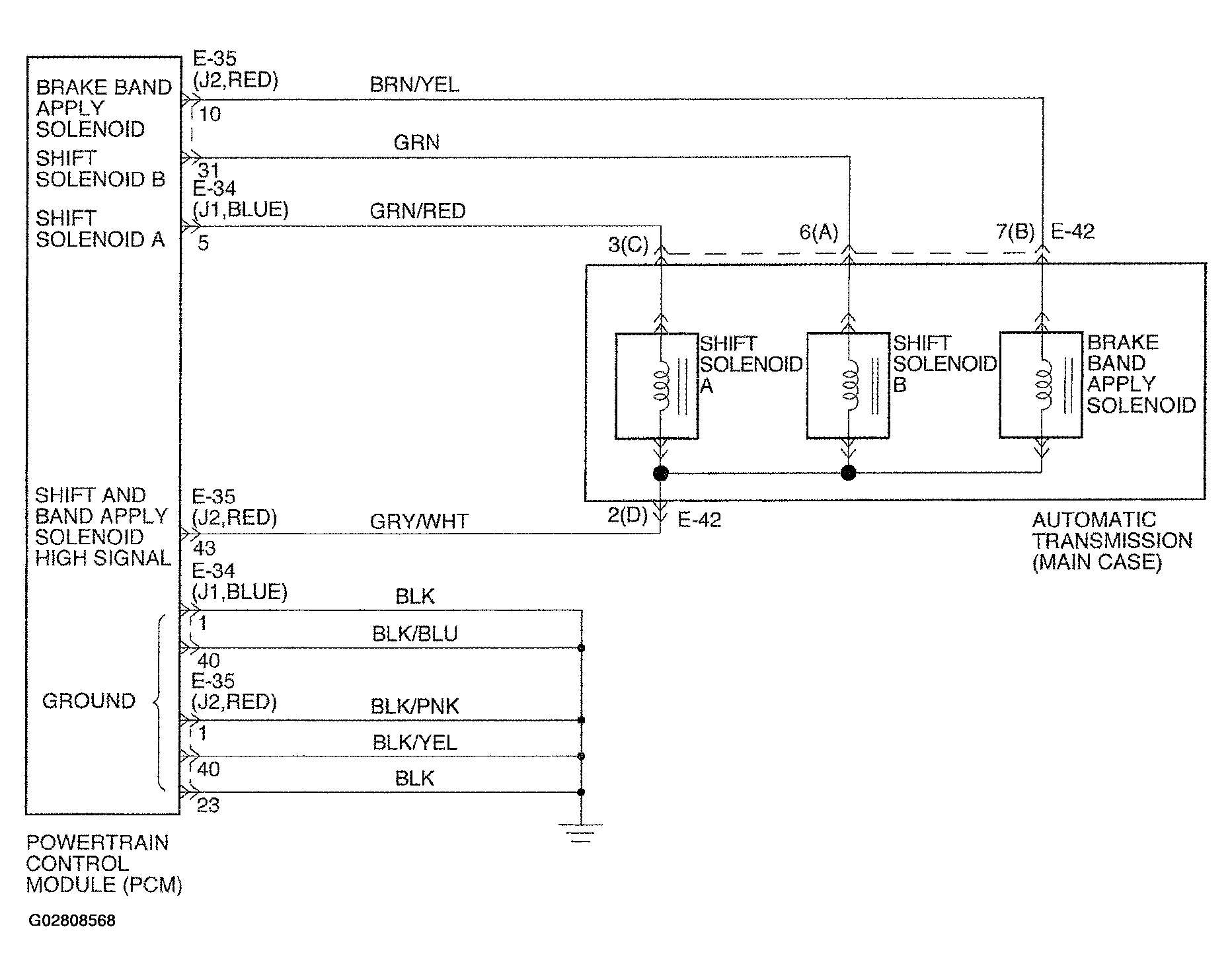

Fig 1: DTC P0753 Shift Solenoid A Electrical Circuit Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
