DTC P0758: Shift Solenoid B Electrical
›
Notes
DTC P0758: Shift Solenoid B Electrical: Notes

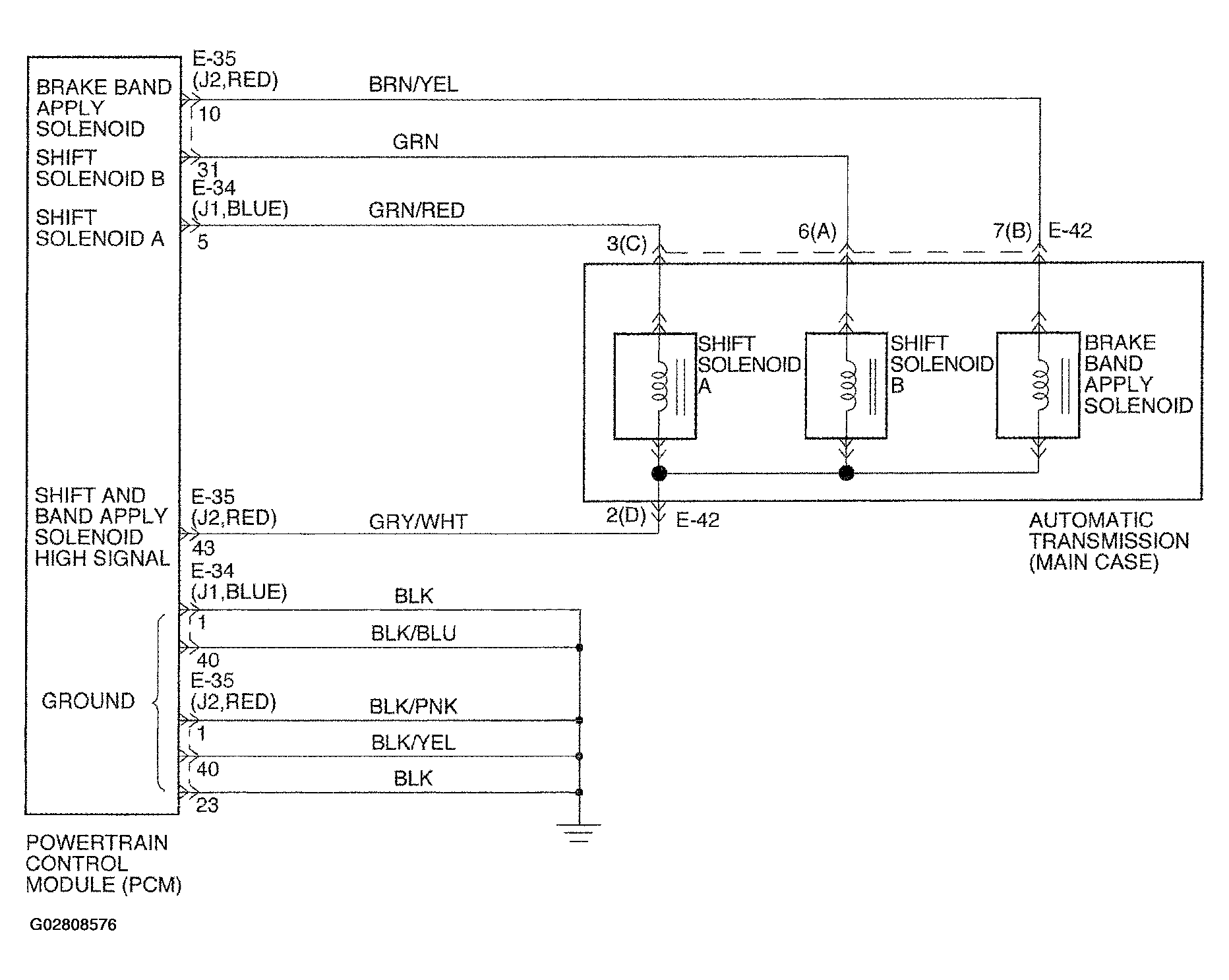

Fig 1: DTC P0758 Shift Solenoid B Electrical Circuit Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
