DTC P1860: TCC PWM Solenoid Electrical: Notes

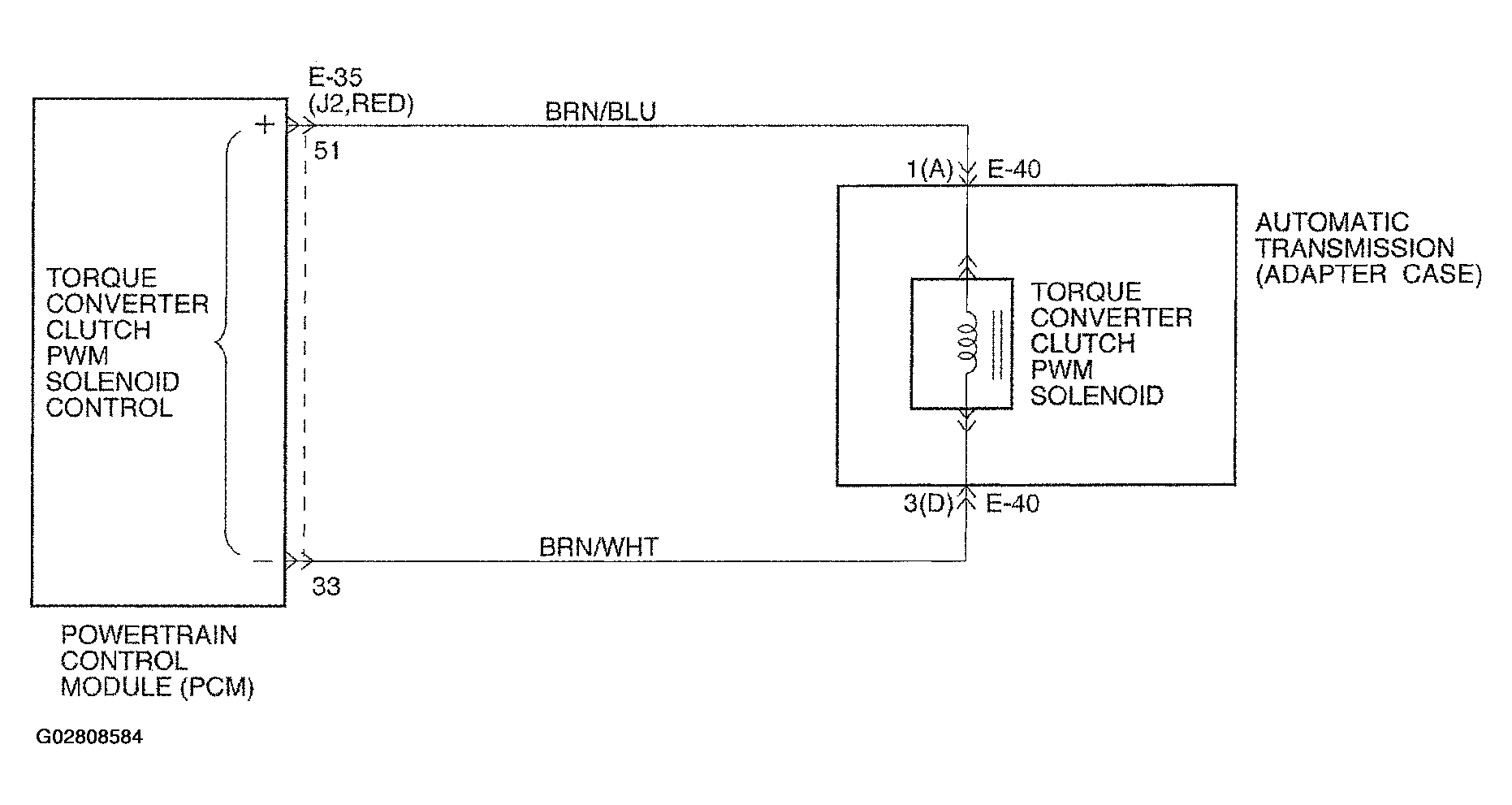

Fig 1: DTC P1860 TCC Solenoid Electrical Circuit Diagram
G02808584Courtesy of ISUZU MOTOR CO.
