DTC P1870: Transmission Component Slipping (TCC Stuck Off): Notes

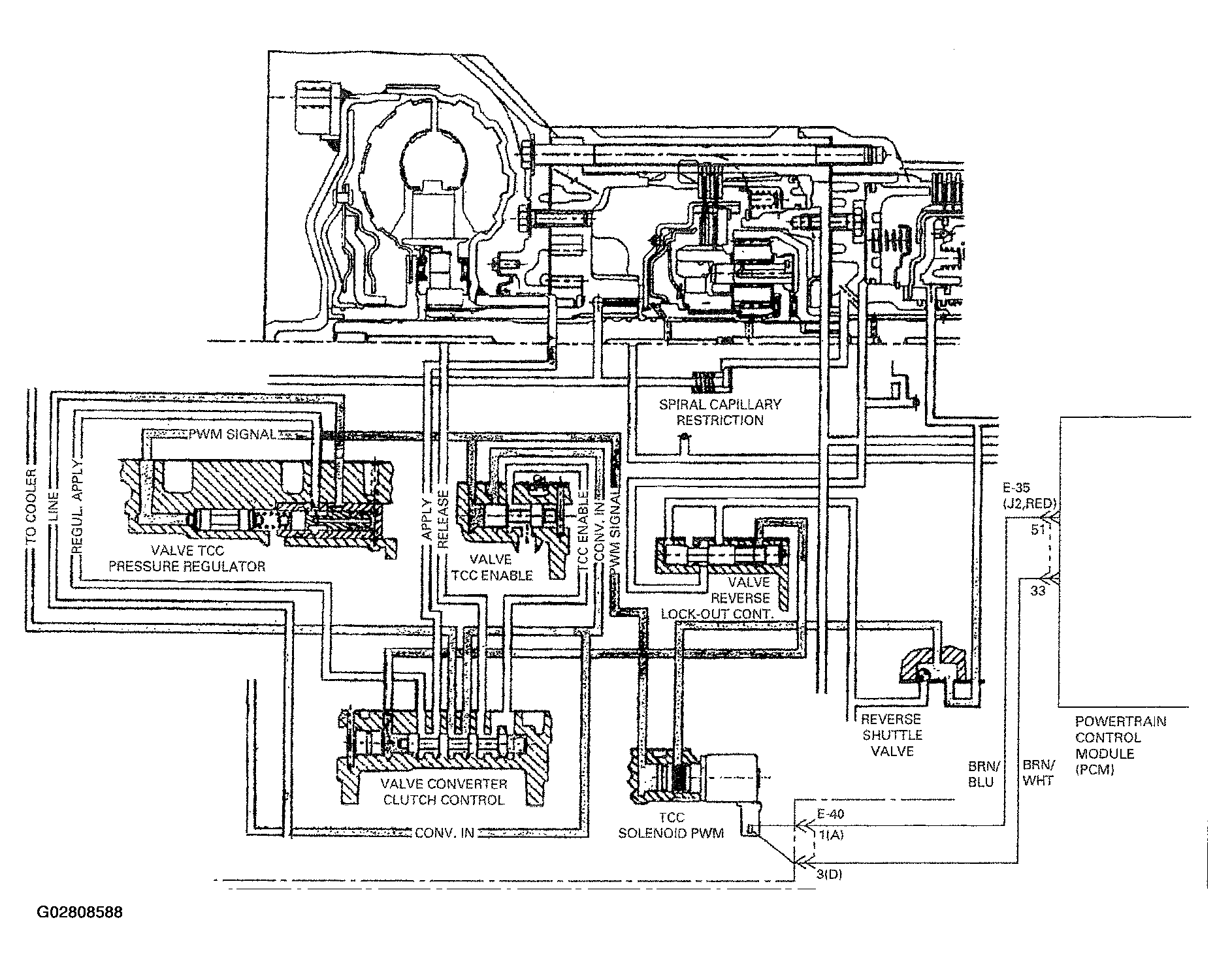

Fig 1: DTC P1870 Transmission Component Slipping (TCC Stuck Off) (Hydraulic Flow & Circuit Diagrams)
G02808588Courtesy of ISUZU MOTOR CO.
