FixVault
Home
›
Isuzu
›
2003
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Power-Assisted Steering System
›
Diagnosis
›
Steering Column Lock System
Steering Column Lock System

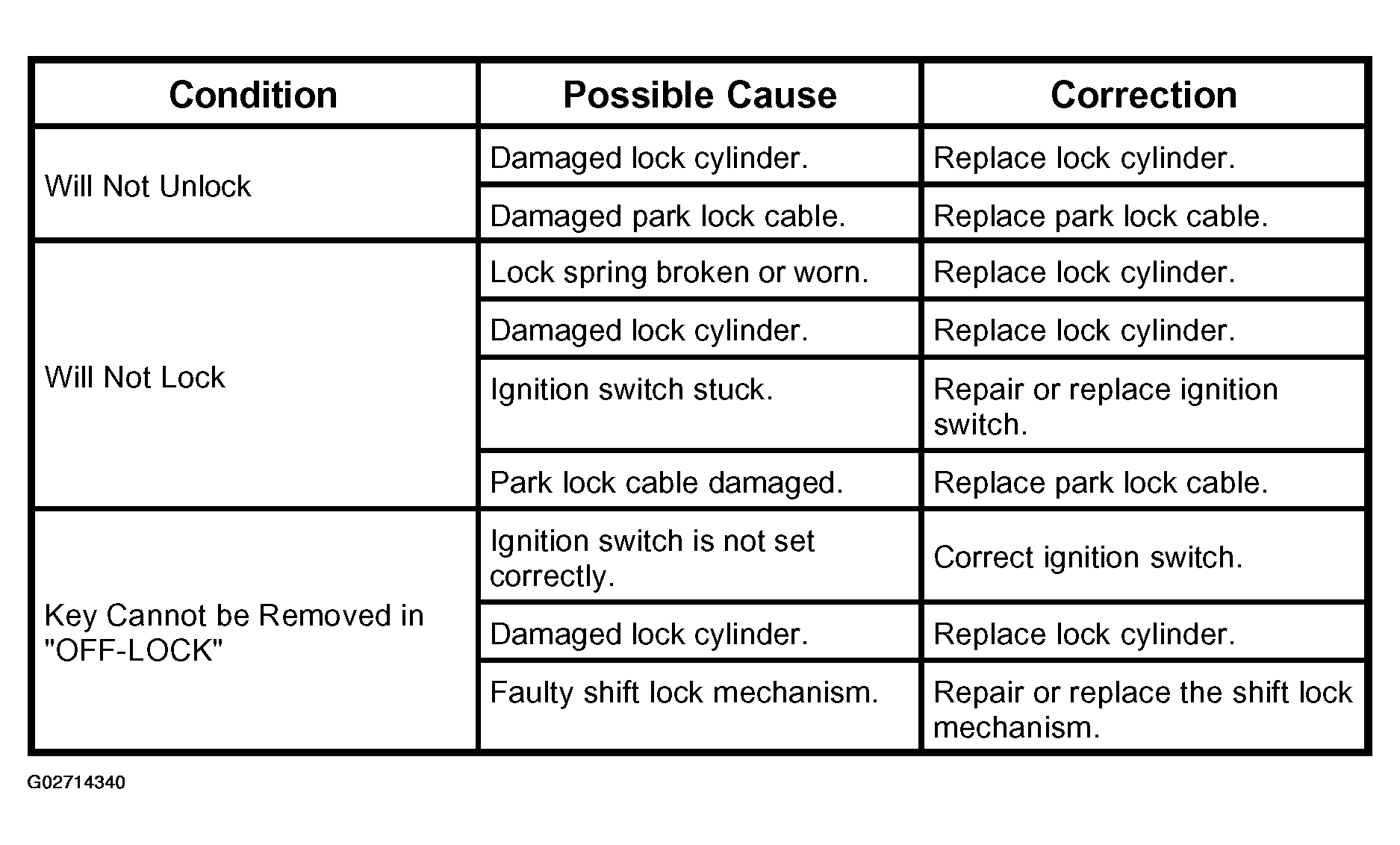

Fig 1: Power Steering Column Lock System Symptom Diagnostic Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
