Power Steering Pump Disassembled View

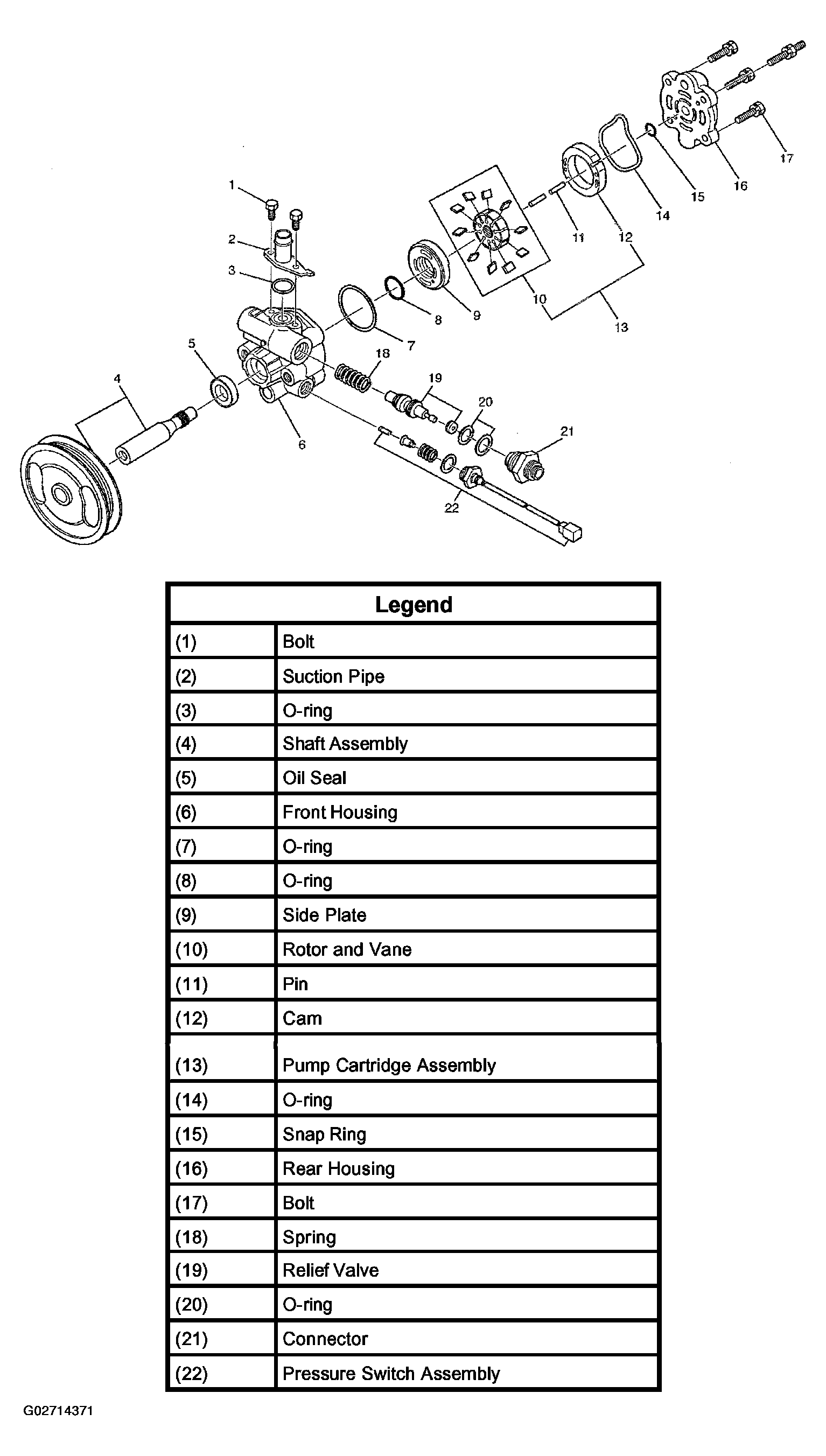

Fig 1: Identifying Power Steering Pump Components
G02714371Courtesy of ISUZU MOTOR CO.
