Converter Housing And Oil Pump Assembly: Reassembly
- Install wear plate onto oil pump assembly.

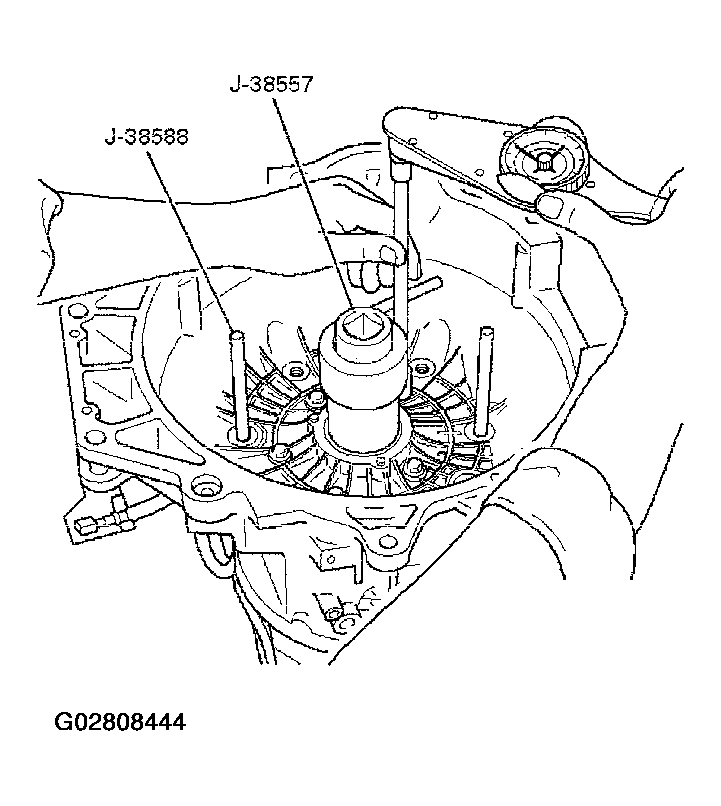

- Install converter housing onto complete oil pump assembly. Align with two short J -38588 guide pins on outer bolt holes.
- Loosely install five 13 mm bolts.
- Center converter housing using J-38557 centering tool.
- Tighten five inner 13 mm bolts in an alternating pattern.
Torque: 20 N.m (15 lb ft)
- Install oil seal ring (3 screws).
Torque: 3 N.m (26 lb in)
- Install gasket.
- Install outer seal ring.
