Axle Shaft Connection And Disconnection: Notes

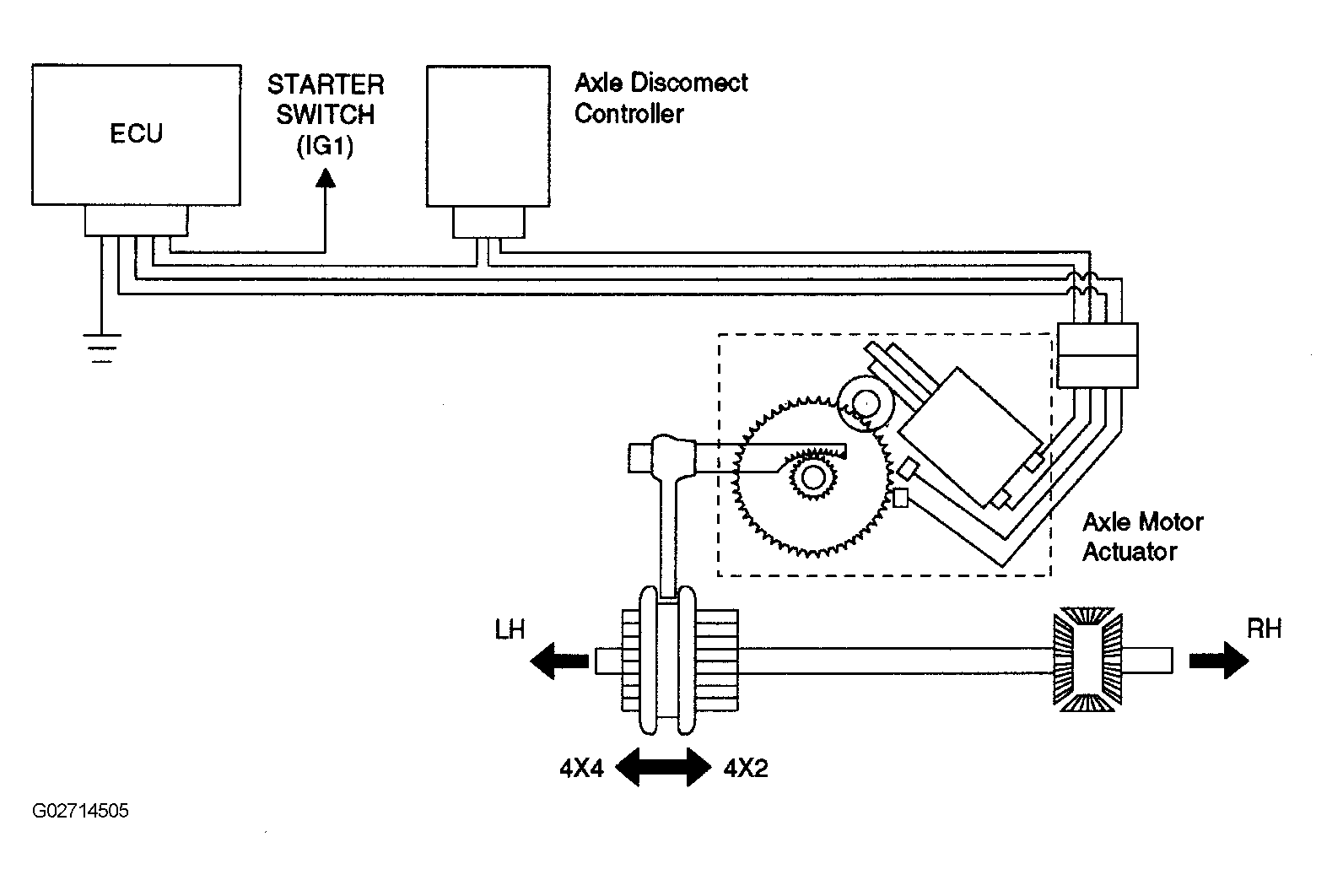

Fig 1: Identifying Axle Shaft Connection & Disconnection To Starter Switch
G02714505Courtesy of ISUZU MOTOR CO.
