Driveline Control System: General Description: Notes

Fig 1: Identifying Traction State Control System

Courtesy of ISUZU MOTOR CO.

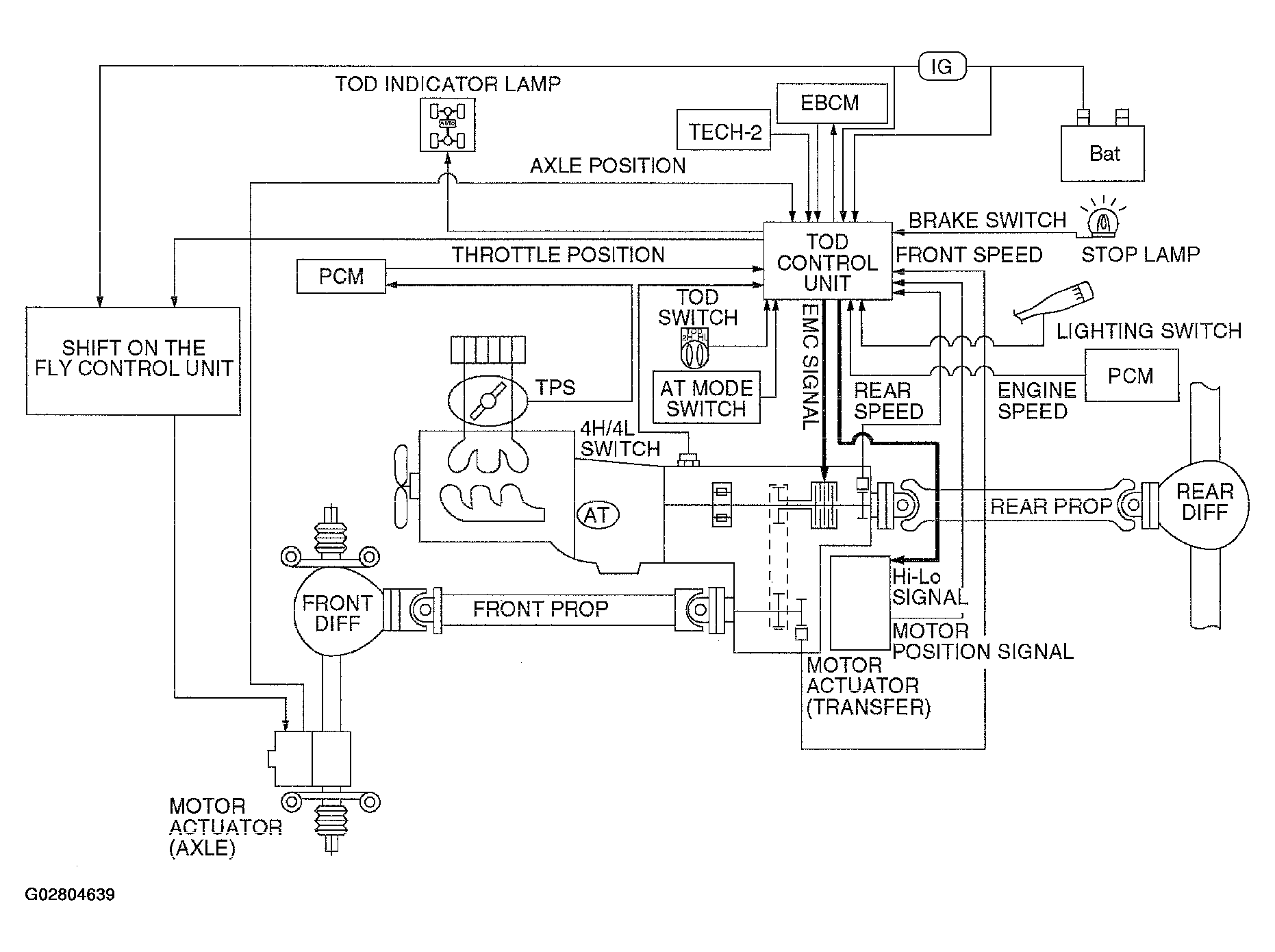

Fig 2: Driveline Control System (TOD) Electronic Control Diagram

Courtesy of ISUZU MOTOR CO.

TOD (Torque on Demand) system is traction state control system to vehicle.
