Engine Lubrication
›
General Description
Engine Lubrication: General Description

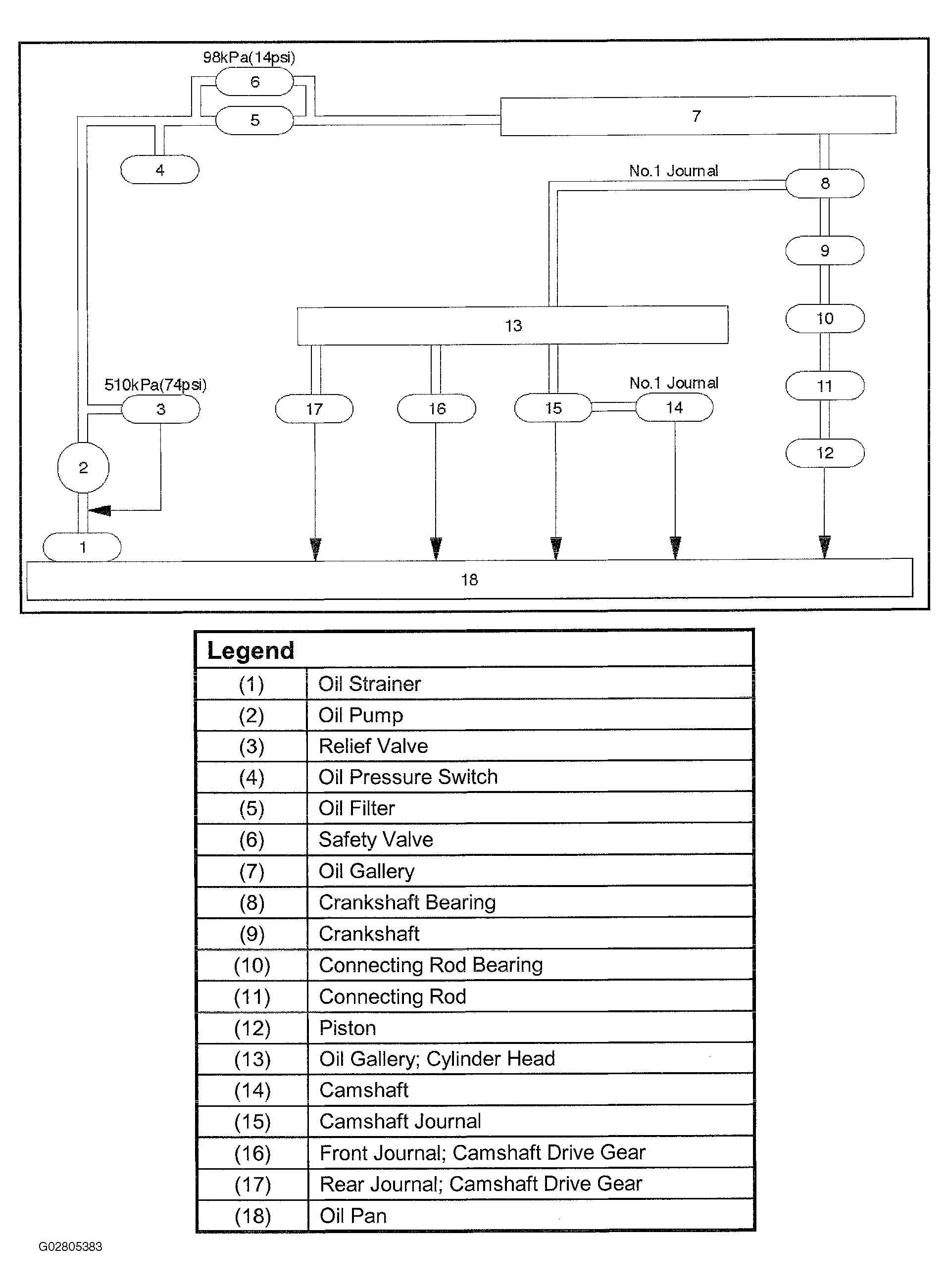

Fig 1: General Description Of Engine Lubrication
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
