No Reduced Power Lamp
›
Diagnostic Procedure
Diagnostic Procedure

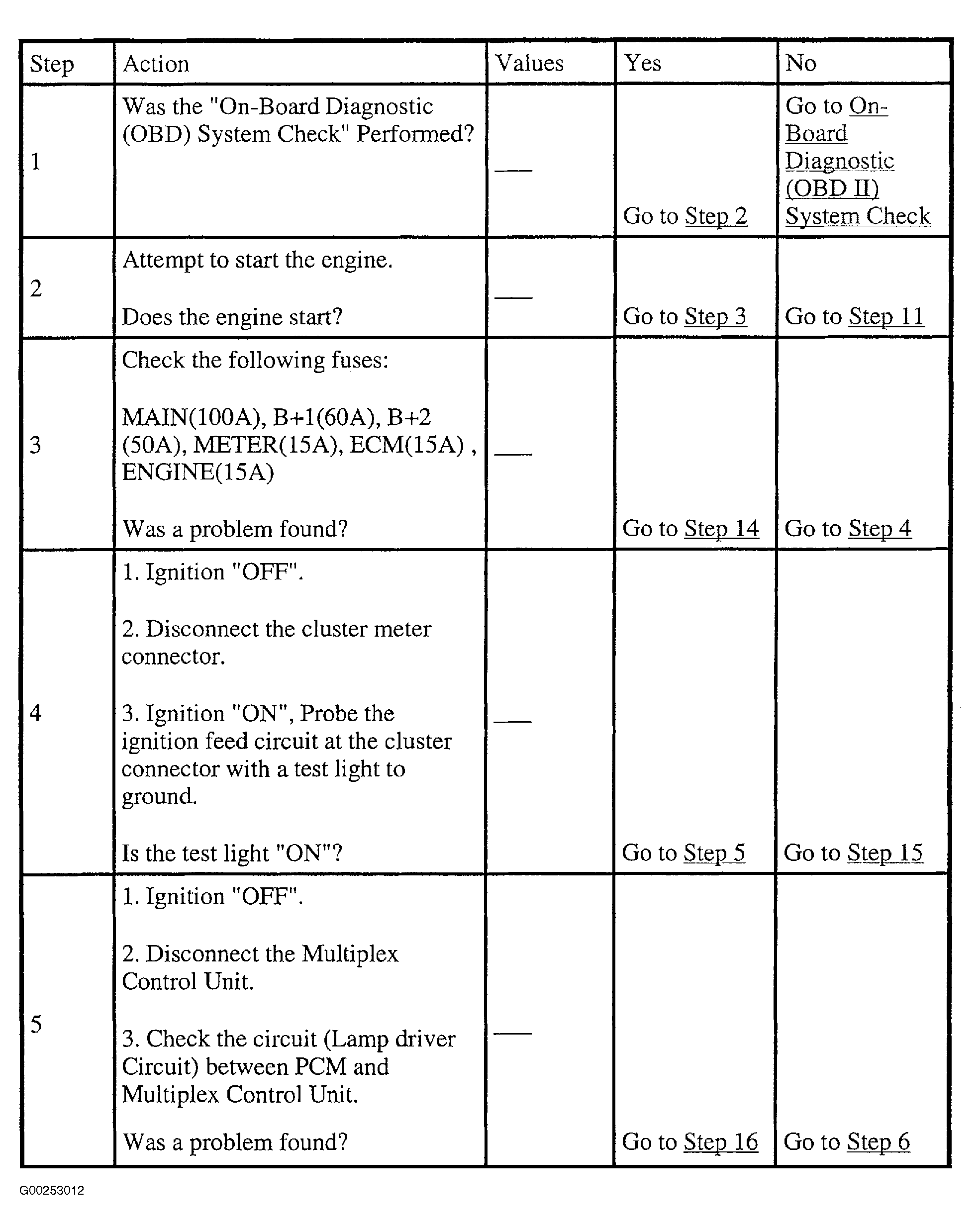

Fig 1: No Reduced Power Lamp (Steps 1-5)
Courtesy of ISUZU MOTOR CO.

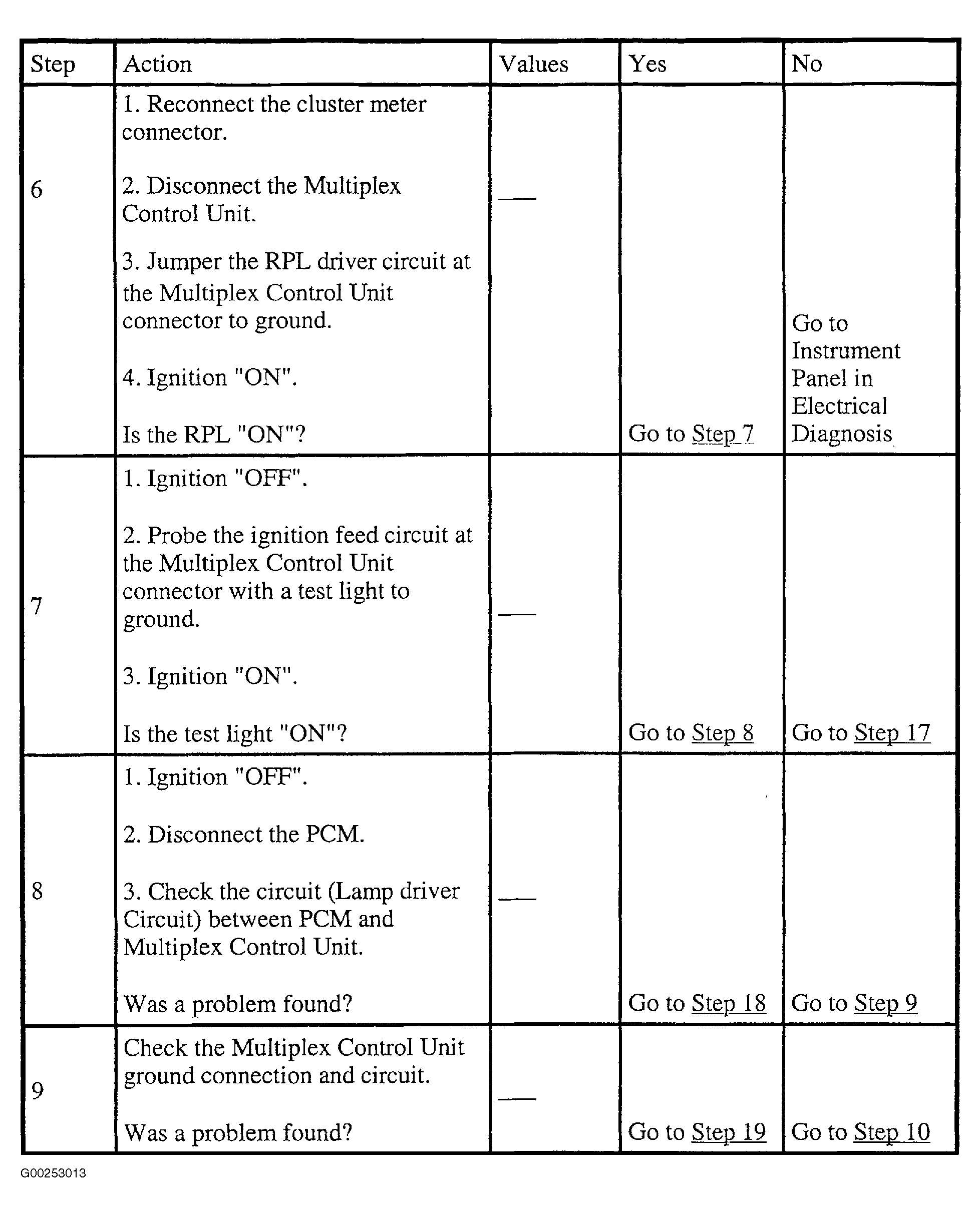

Fig 2: No Reduced Power Lamp (Steps 6-9)
Courtesy of ISUZU MOTOR CO.

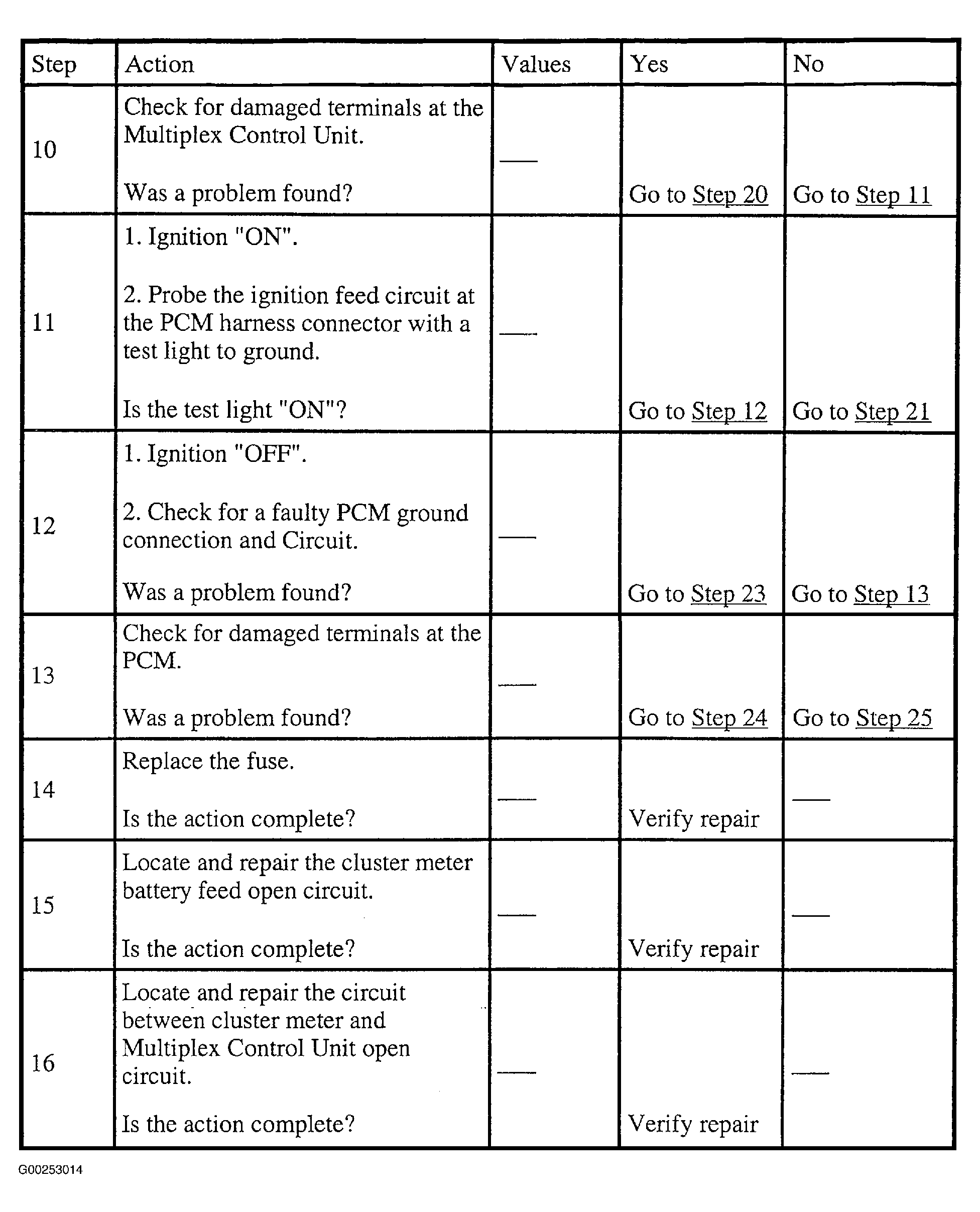

Fig 3: No Reduced Power Lamp (Steps 10-16)
Courtesy of ISUZU MOTOR CO.

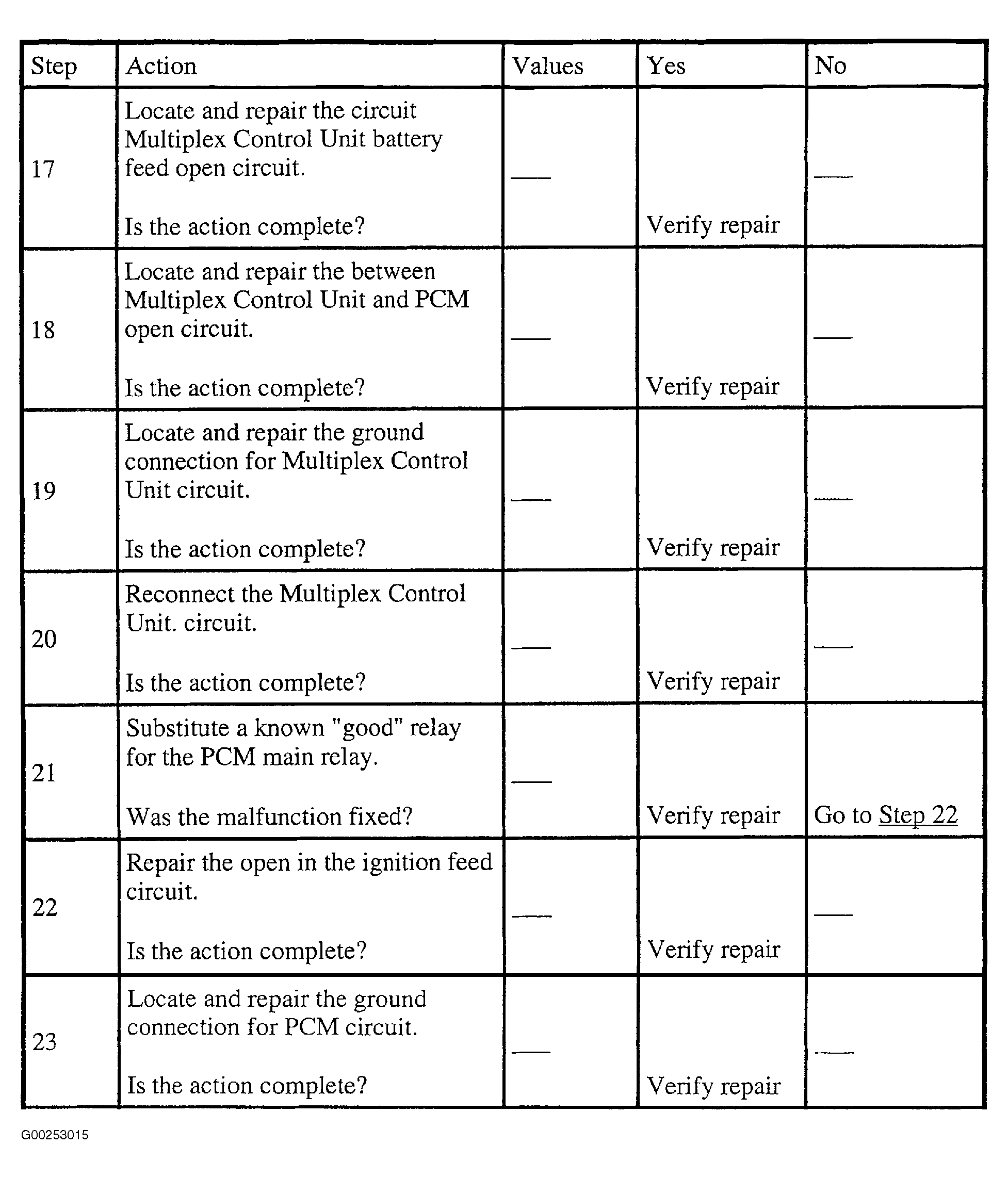

Fig 4: No Reduced Power Lamp (Steps 17-23)
Courtesy of ISUZU MOTOR CO.

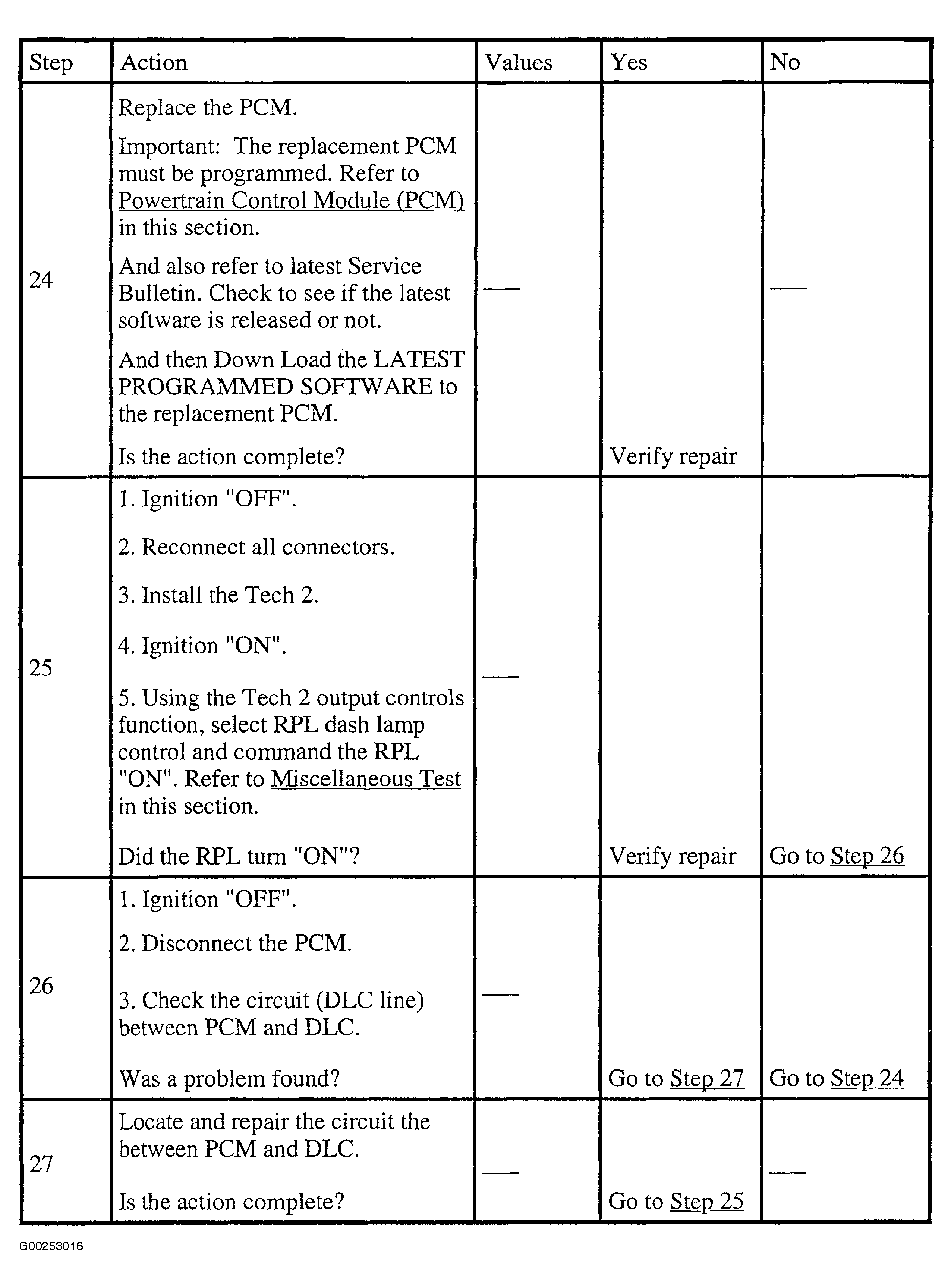

Fig 5: No Reduced Power Lamp (Steps 24-27)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
