New Compressor Installation

The new compressor is filled with 150cc (5.0 fl oz) of compressor Oil and nitrogen gas. When mounting the compressor on the vehicle, perform the following steps:

1. Gently release nitrogen gas from the new compressor.
   • Take care not to let the compressor Oil flow out.
   • Inspect O-rings and replace if necessary.

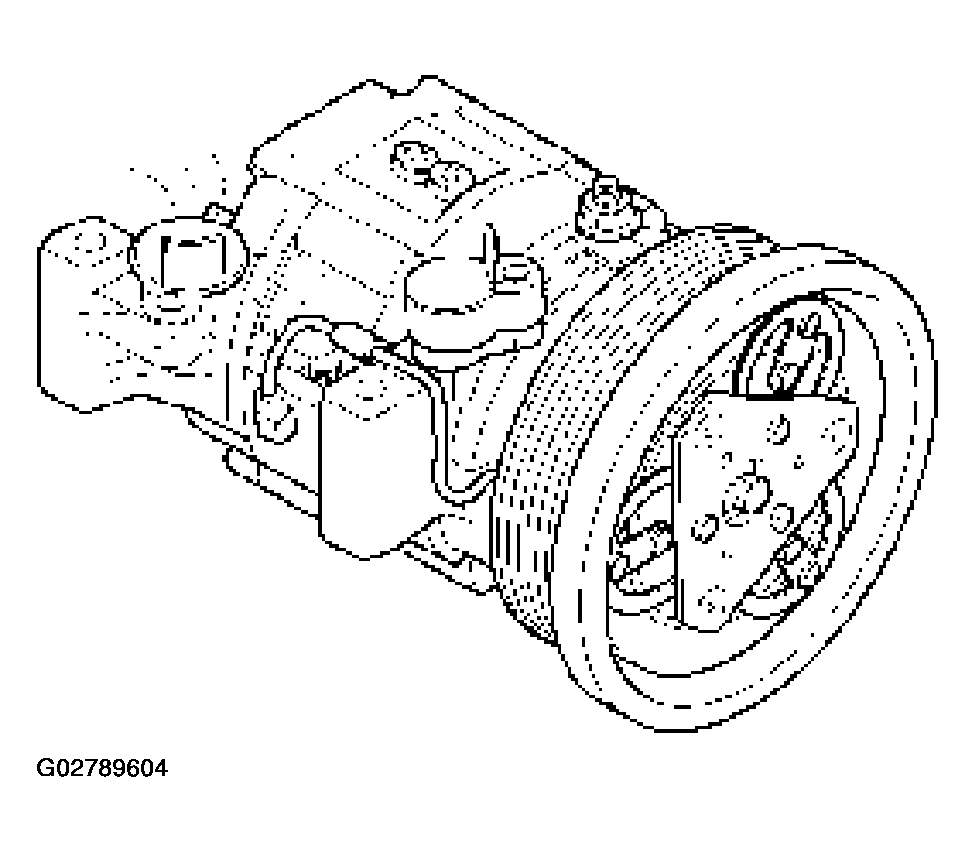

     Fig 1: Releasing Nitrogen Gas From Compressor

     Courtesy of ISUZU MOTOR CO.
2. Turn the compressor several times by hand and release the compressor Oil in the rotor.
3. When installing on a new system, the compressor should installed as it is. When installing on a used system, the compressor should be installed after adjusting the amount of compressor Oil. (Refer to COMPRESSOR  in this section).

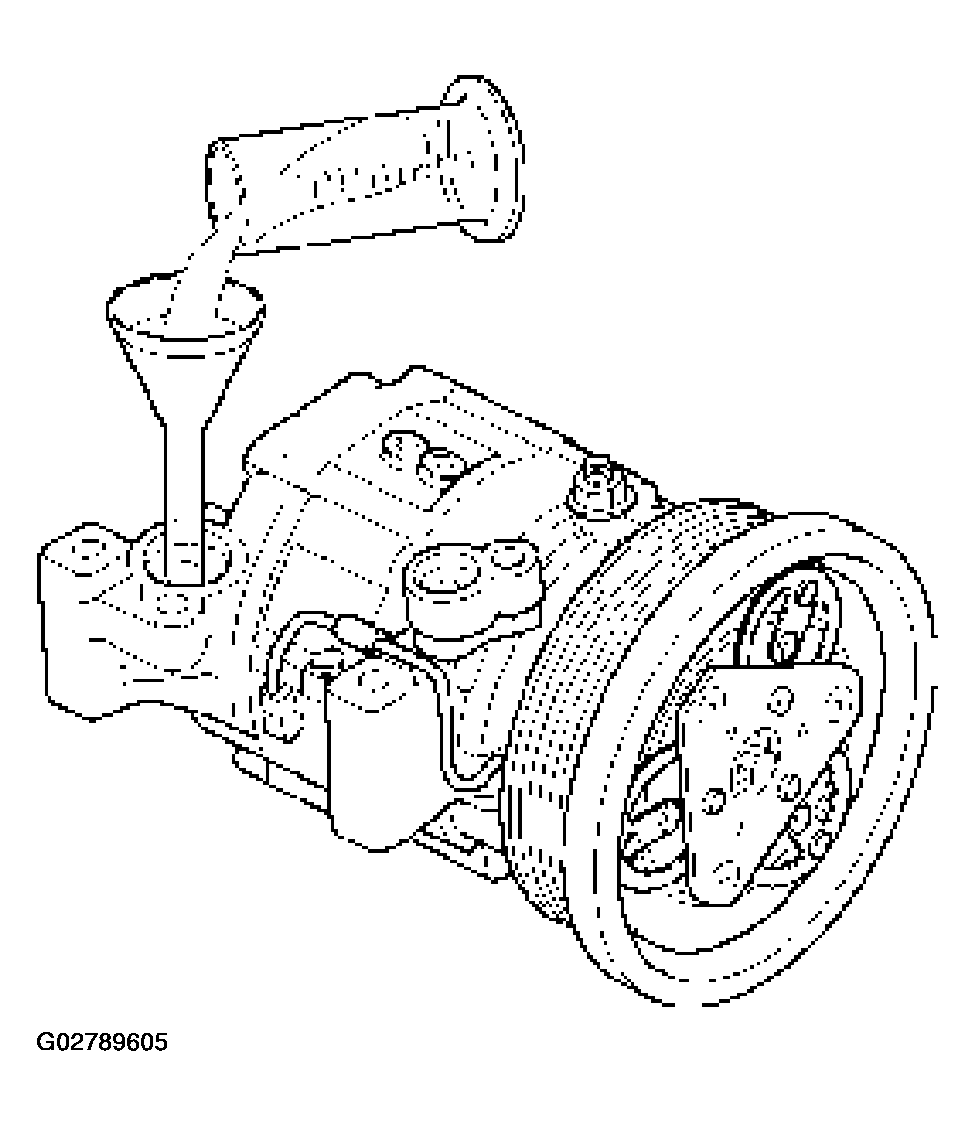

   Fig 2: Adjusting Amount Of Compressor Oil

   Courtesy of ISUZU MOTOR CO.

The new compressor is filled with 150cc (5.0 fl oz) of compressor Oil and nitrogen gas. When mounting the compressor on the vehicle, perform the following steps:

1. Gently release nitrogen gas from the new compressor.
   • Take care not to let the compressor Oil flow out.
   • Inspect O-rings and replace if necessary.
     Fig 1: Releasing Nitrogen Gas From New Compressor

     Courtesy of ISUZU MOTOR CO.
2. Turn the compressor several times by hand and release the compressor Oil in the rotor.
3. When installing on a new system, the compressor should installed as it is. When installing on a used system, the compressor should be installed after adjusting the amount of compressor Oil. (Refer to COMPRESSOR  in this section).
   Fig 2: Adjusting Amount Of Compressor Oil

   Courtesy of ISUZU MOTOR CO.
