Windshield Washer Spray Pattern

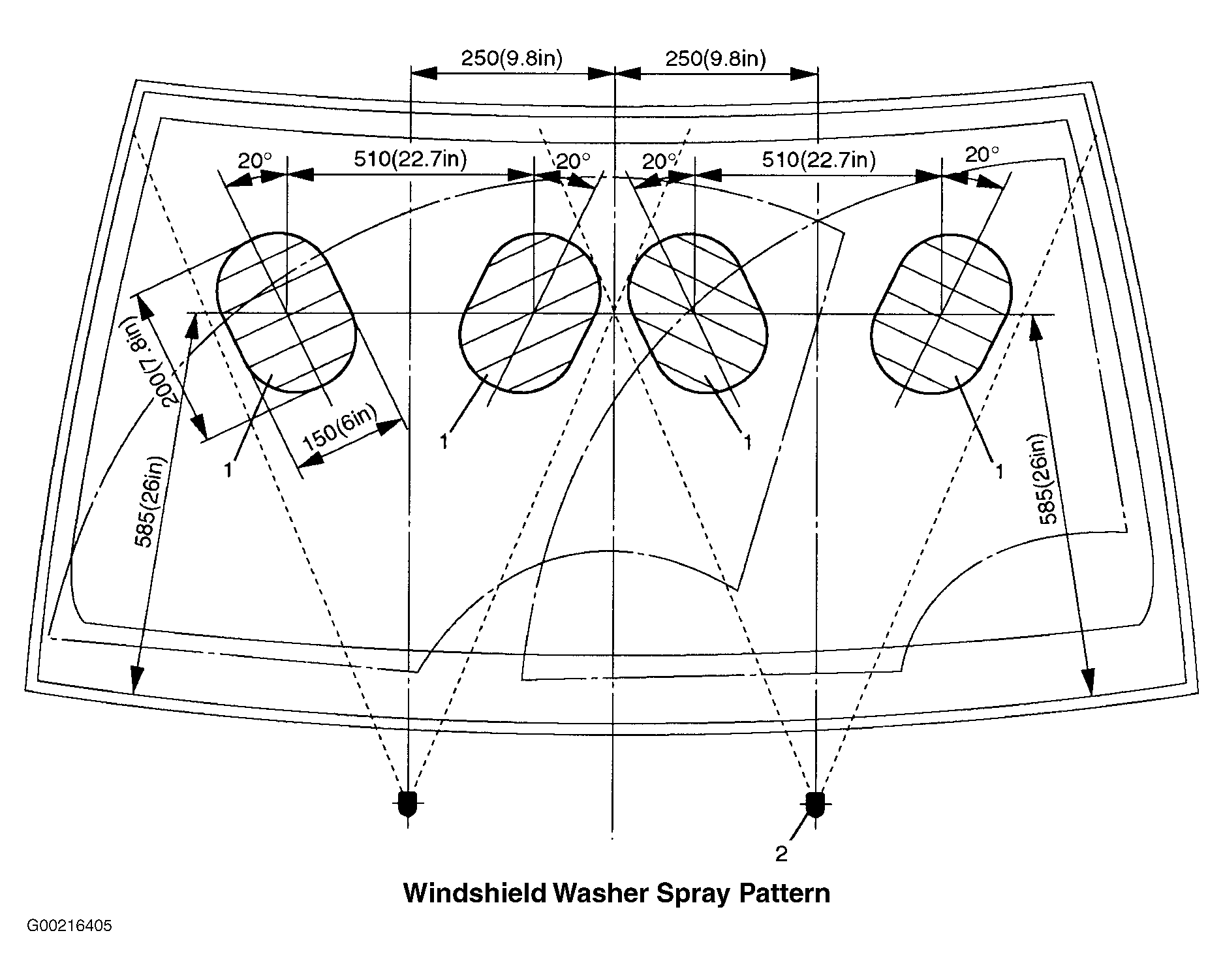

Fig 1: Identifying Windshield Washer Spray Pattern

G00216405

Courtesy of ISUZU MOTOR CO.

WINDSHIELD WASHER IDENTIFICATION

Legend
(1)	Spray Target
(2)	Washer Nozzle
