Engine Hood: Installation

To install, follow the removal steps in the reverse order noting the following points:

1. Tighten the engine hood fixing bolts to the specified torque.
   1. Torque:  10 N.m (87 lb in)
2. Check the engine hood and fender (1).
   • Clearance:  4.5 mm (0.18 in)
   • Height (step):  0.5 mm (0.02 in)
   • Adjust clearance with the hinges on the engine hood.
   • Adjust height (step) with the hood rests (2).
     Fig 1: Checking Engine Hood & Fender (1 Of 3)

     Courtesy of ISUZU MOTOR CO.

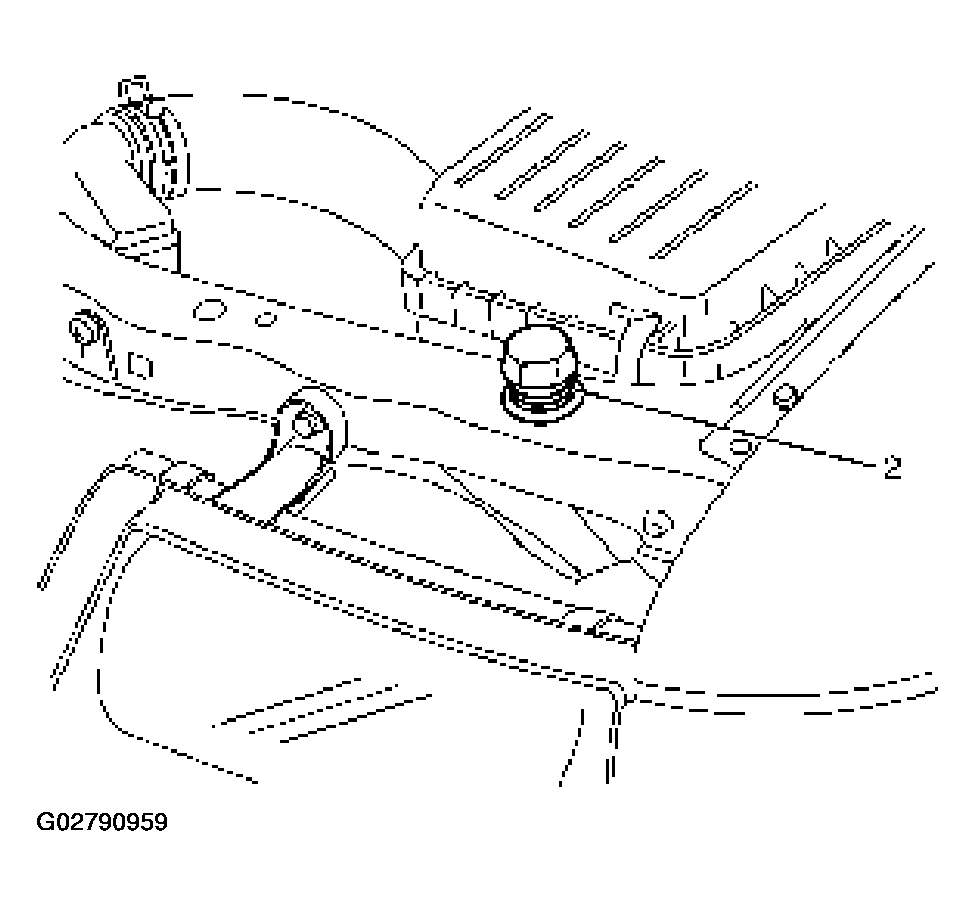

     Fig 2: Checking Engine Hood & Fender (2 Of 3)

     Courtesy of ISUZU MOTOR CO.
     Fig 3: Checking Engine Hood & Fender (3 Of 3)

     Courtesy of ISUZU MOTOR CO.
