Repair and Diagnosis
›
Brakes
›
Brakes Control Systems
›
Brake Control System
›
EHCU Connector Pin-out Checks
›
Connector List
Connector List

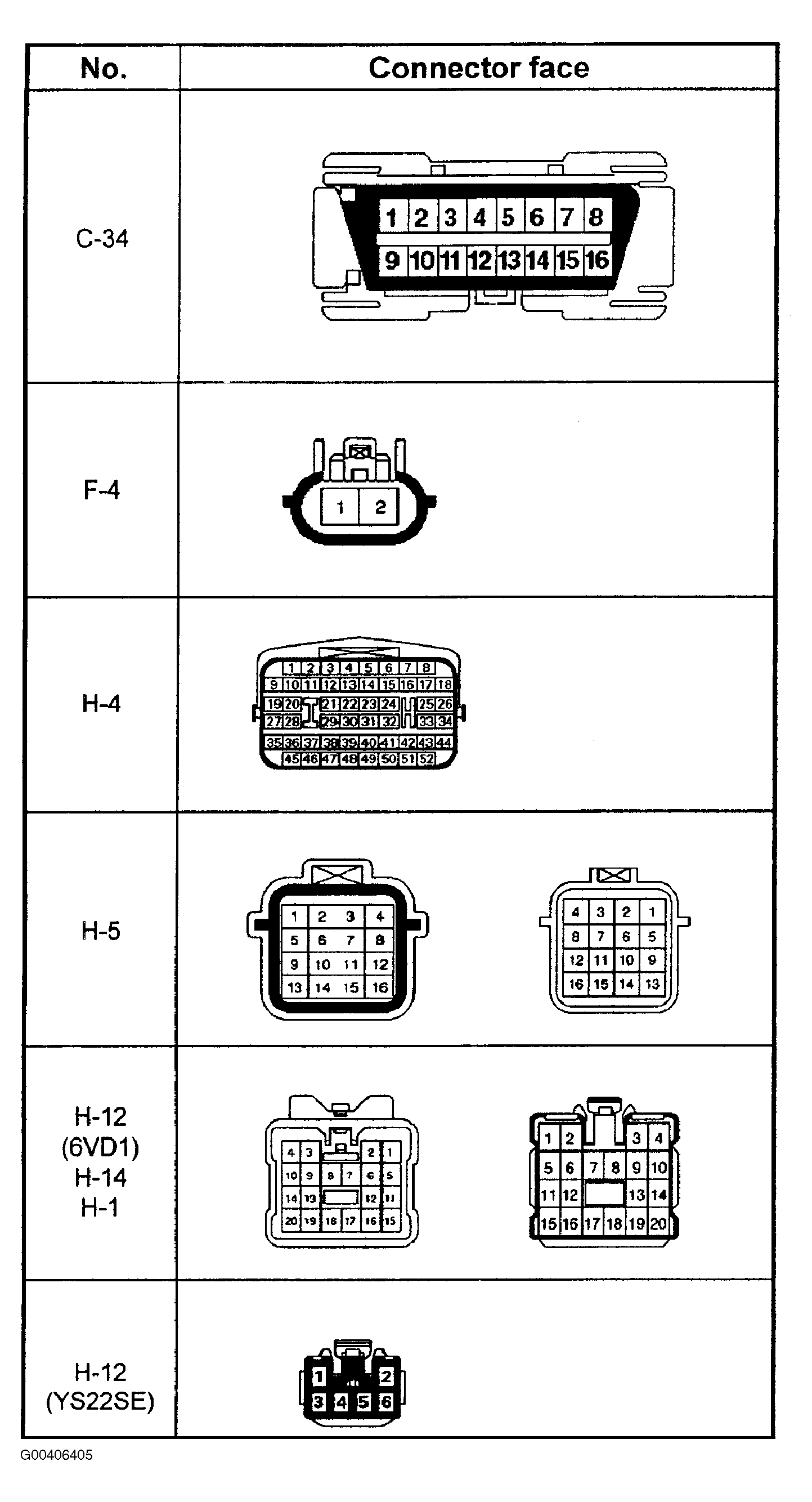

Fig 1: Connector List (1 Of 3)
Courtesy of ISUZU MOTOR CO.

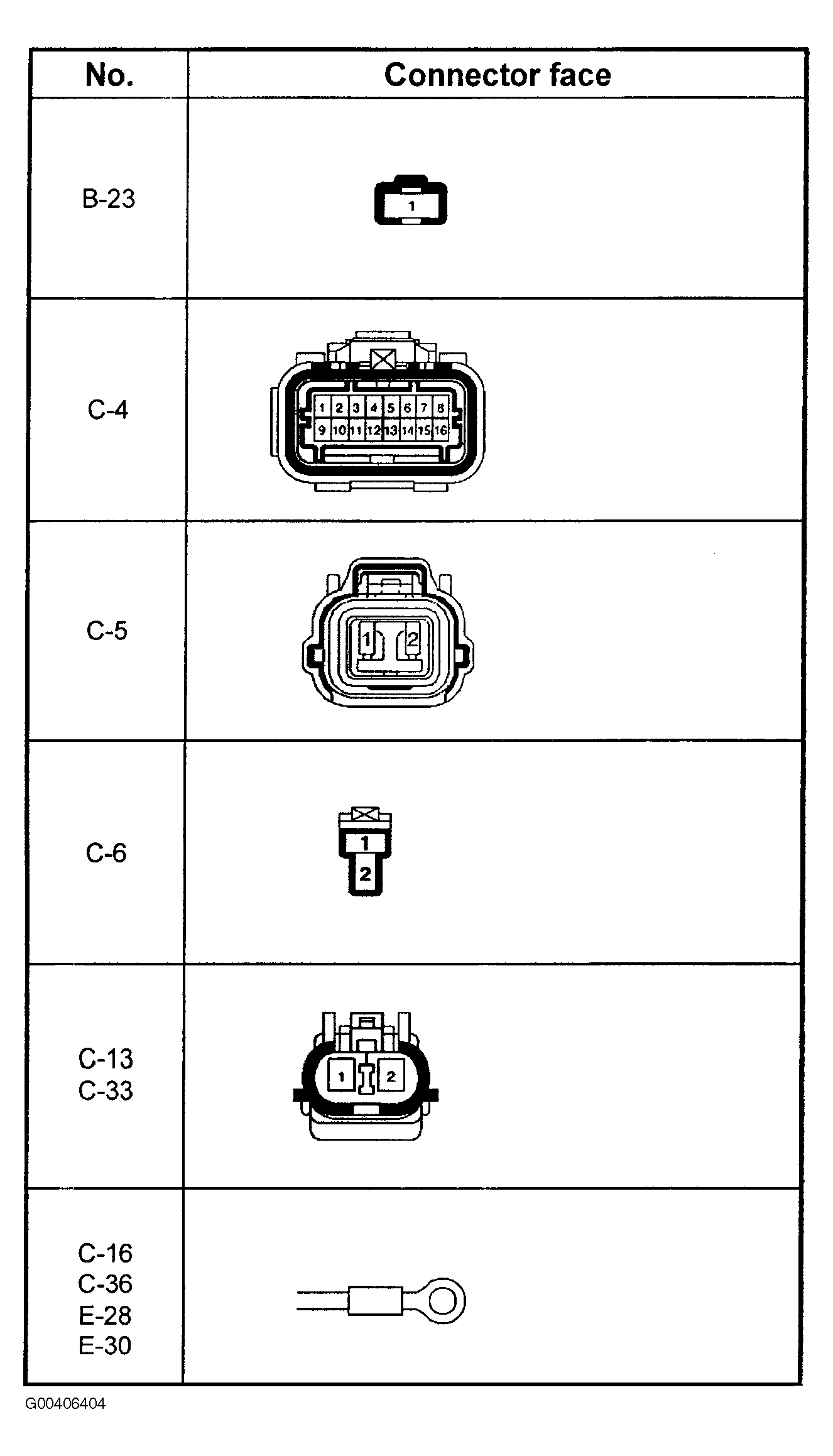

Fig 2: Connector List (2 Of 3)
Courtesy of ISUZU MOTOR CO.

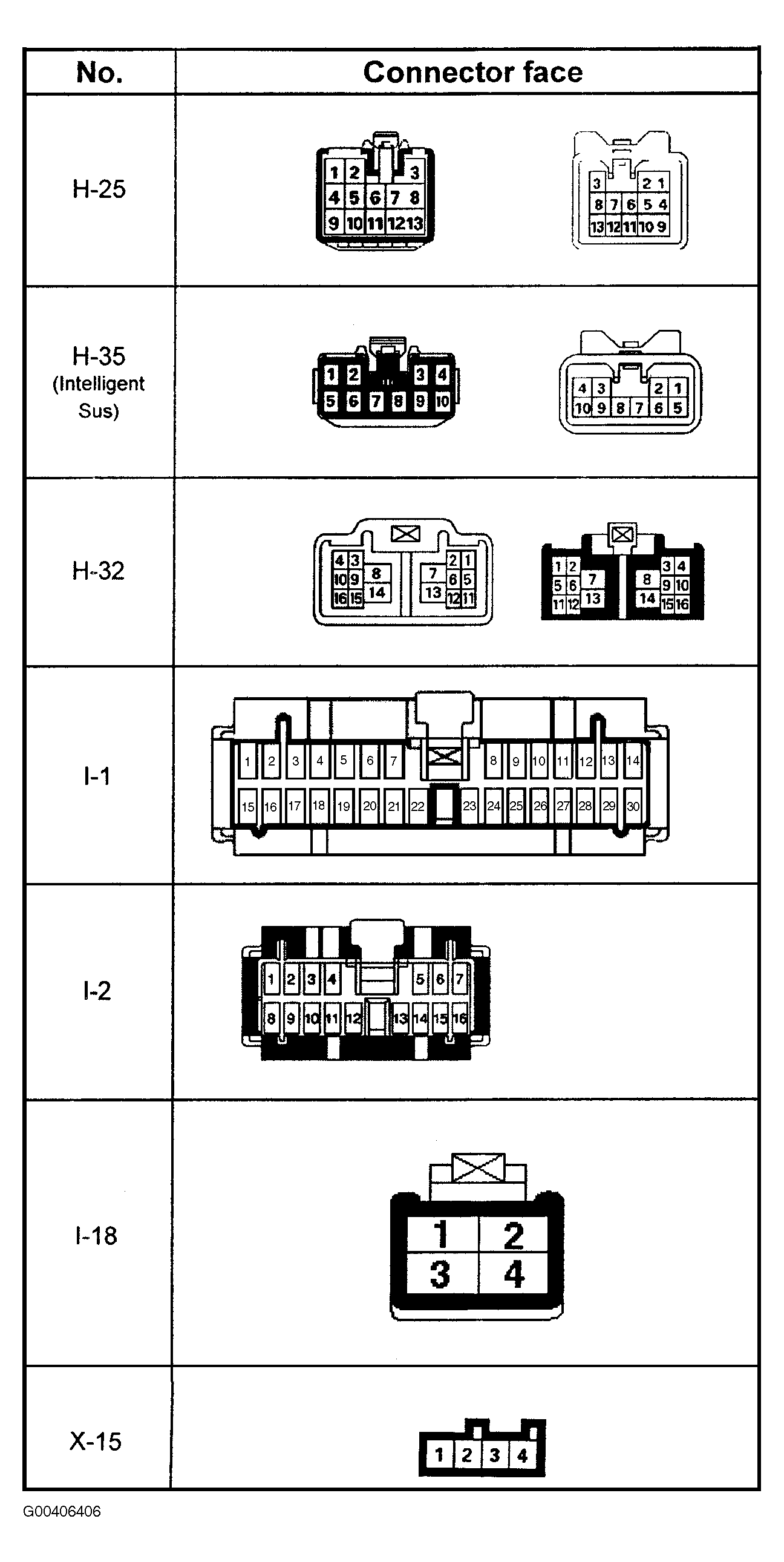

Fig 3: Connector List (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
