Front Wheel Speed Sensor and Associated Parts
Front Wheel Speed Sensor and Associated Parts

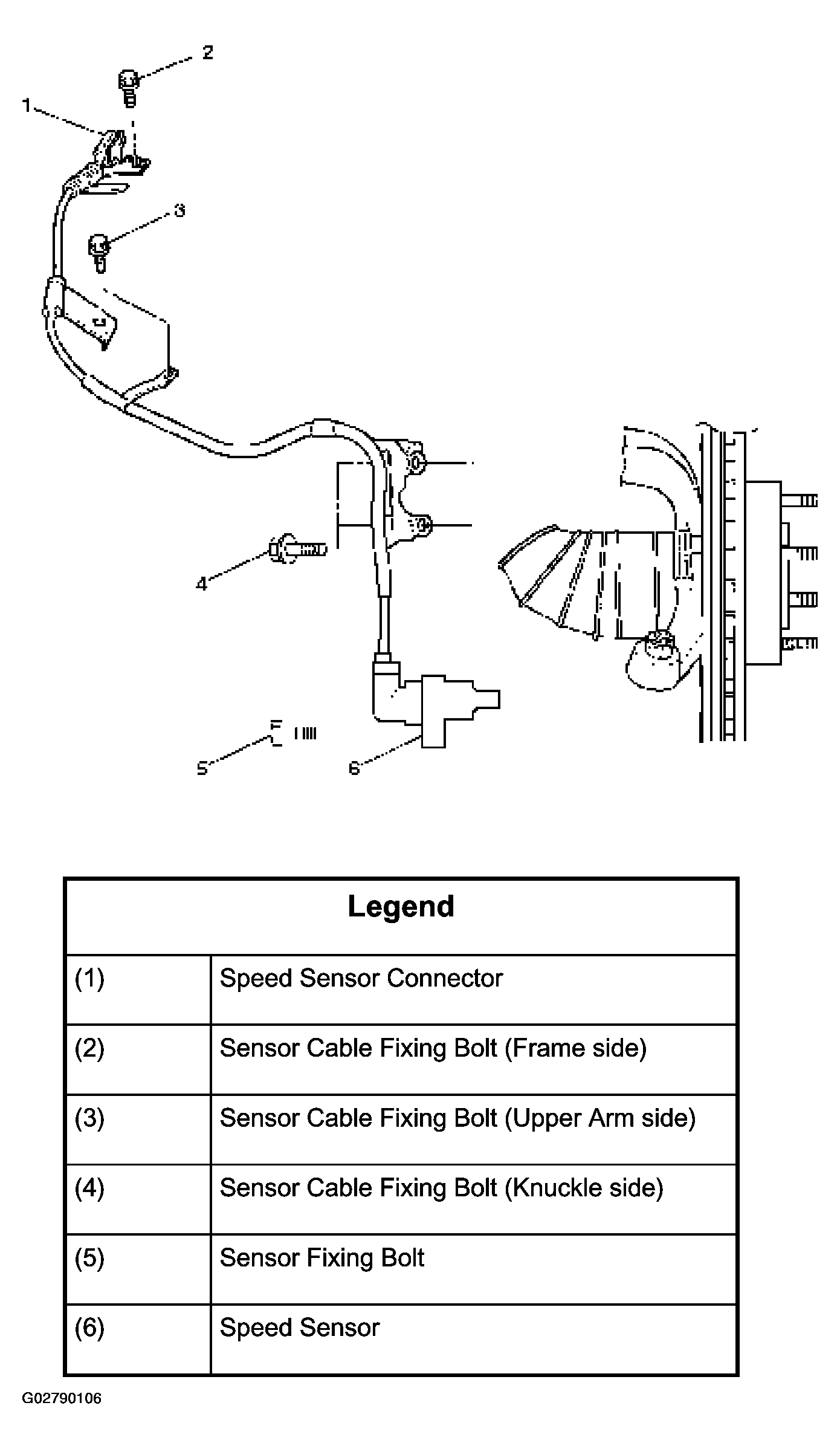

Fig 1: Locating Bolts Of Front Wheel Speed Sensor
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
