Front Drive Axle Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

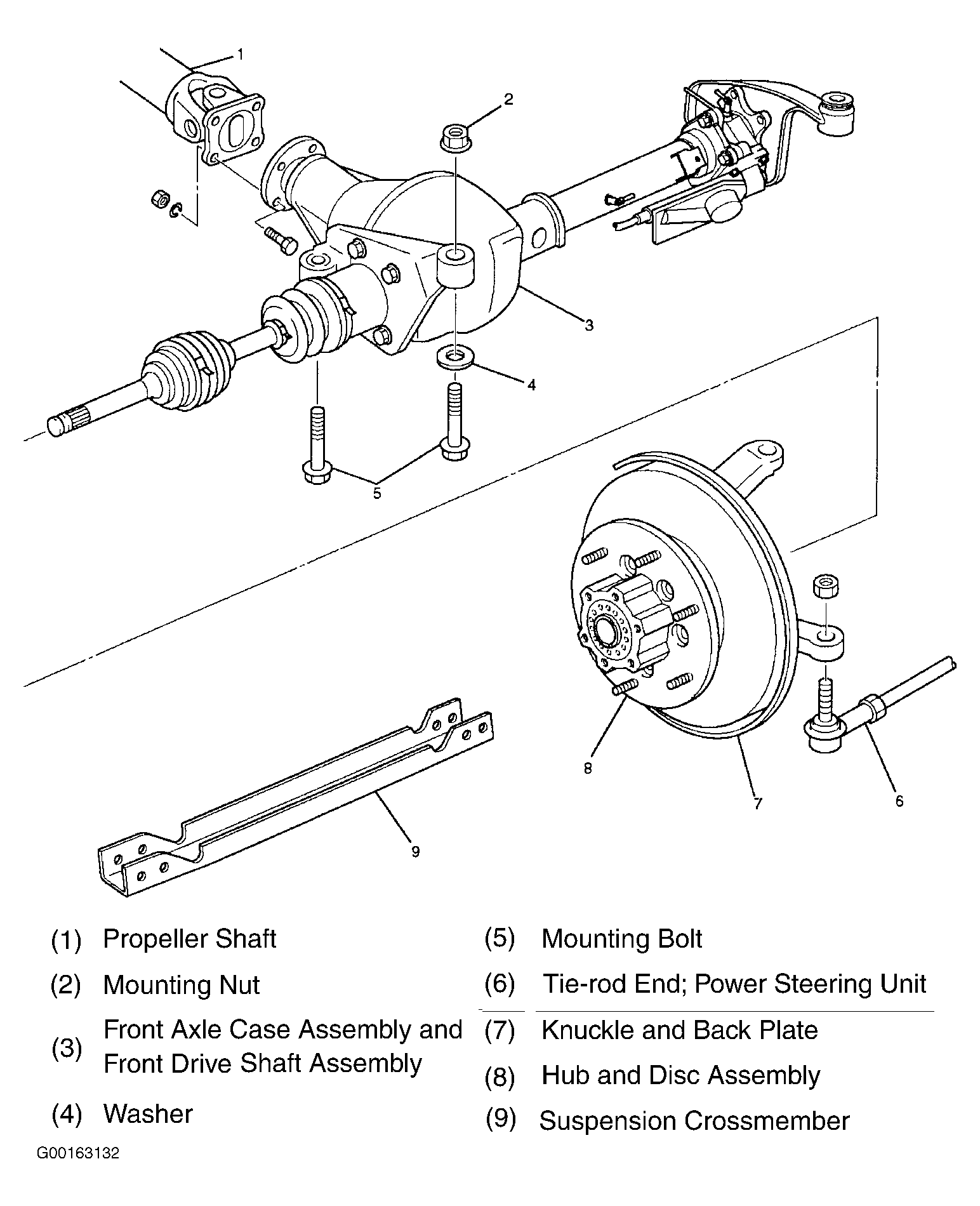

NOTE: To aid in removal and installation of front drive axle assembly, see Figure.
