Torque Specifications

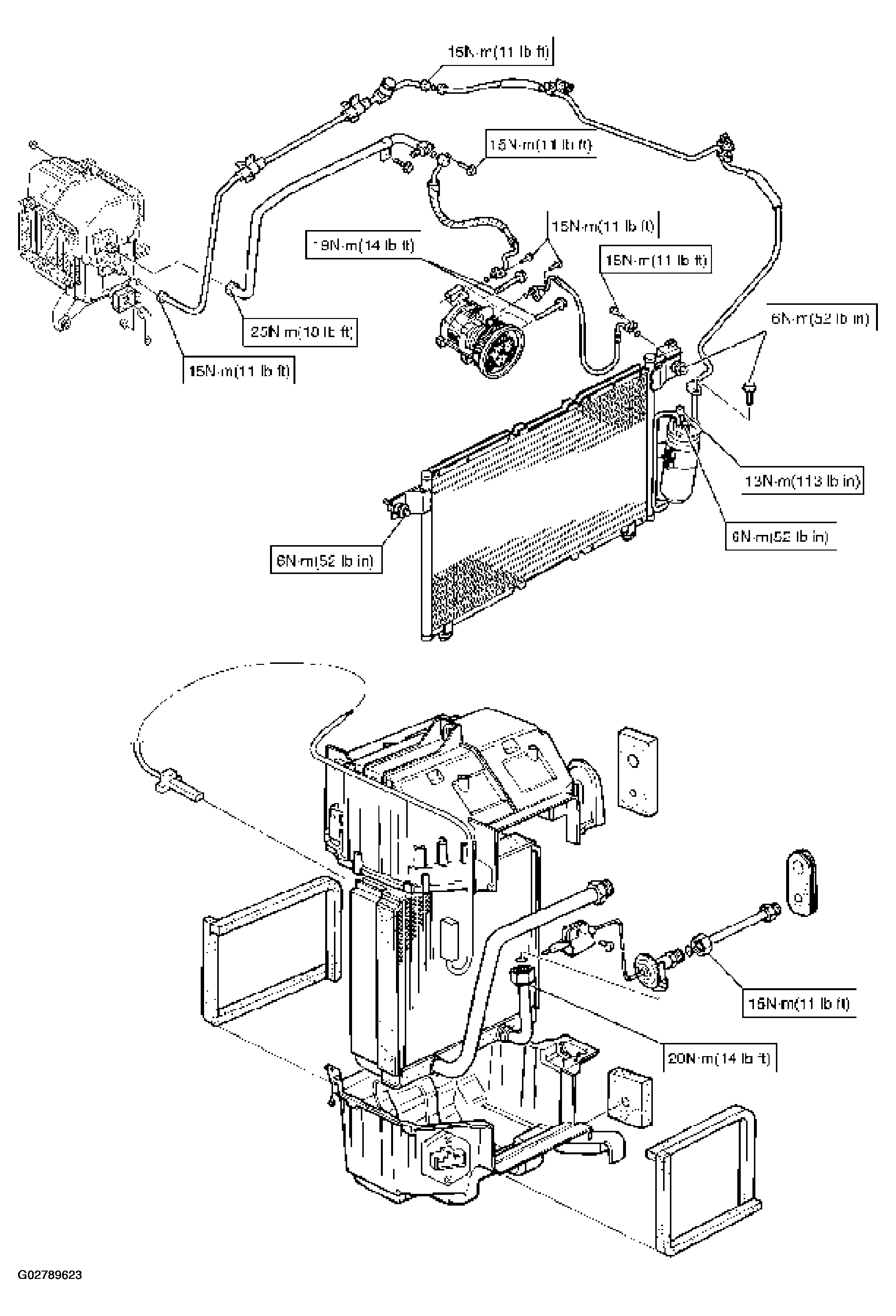

Fig 1: Main Data & Specifications Torque Specifications
G02789623Courtesy of ISUZU MOTOR CO.

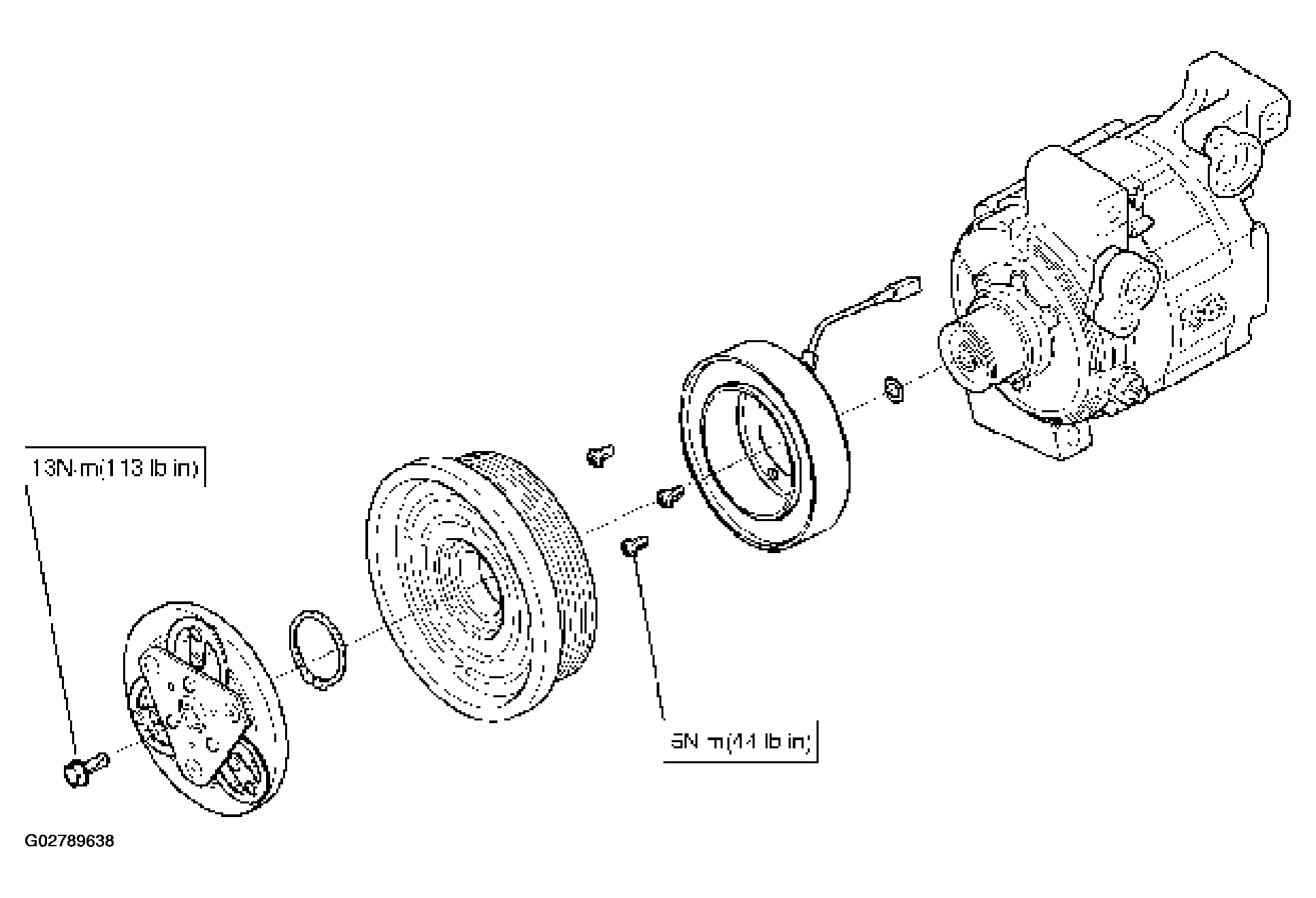

Fig 1: Tightening Torque Specifications
G02789638Courtesy of ISUZU MOTOR CO.
