Automatic Trans (4L30-E): Construction

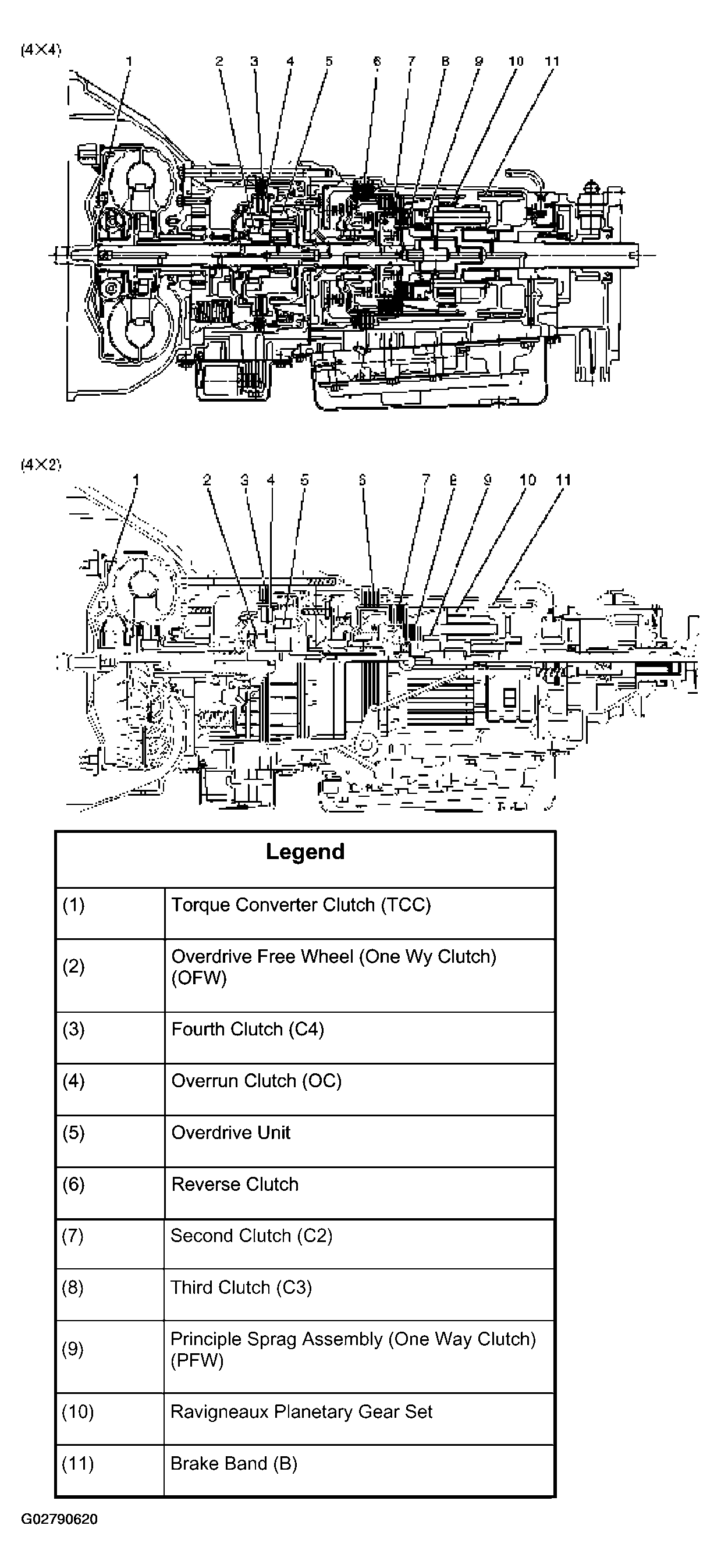

Fig 1: Identifying Automatic Transmission & Components
G02790620Courtesy of ISUZU MOTOR CO.
