Automatic Trans (4L30-E)
›
Main Case Valve Body
›
Disassembled View
Disassembled View

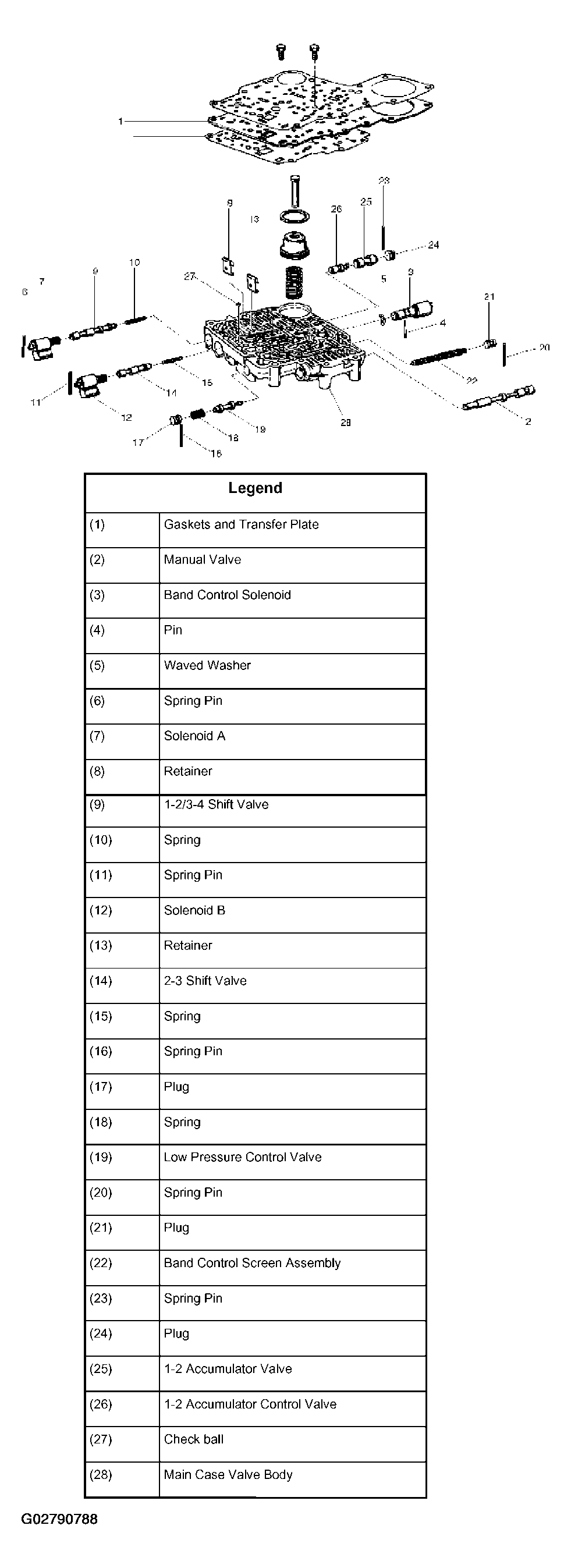

Fig 1: Disassembled View Of Main Case Valve Body
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
