Preliminary Inspection Chart
Preliminary Inspection Chart

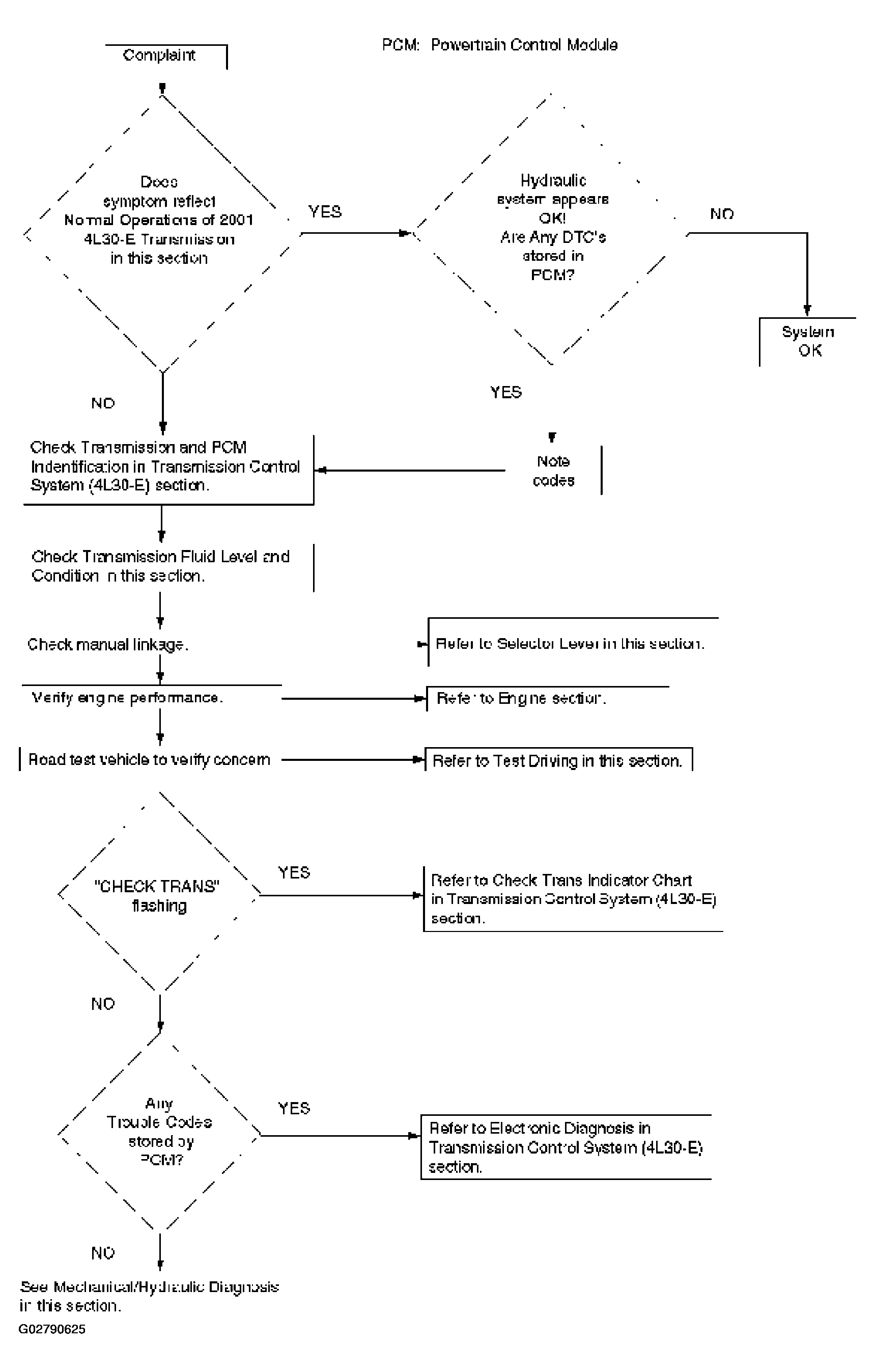

Fig 1: Preliminary Inspection Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
