Special Tools

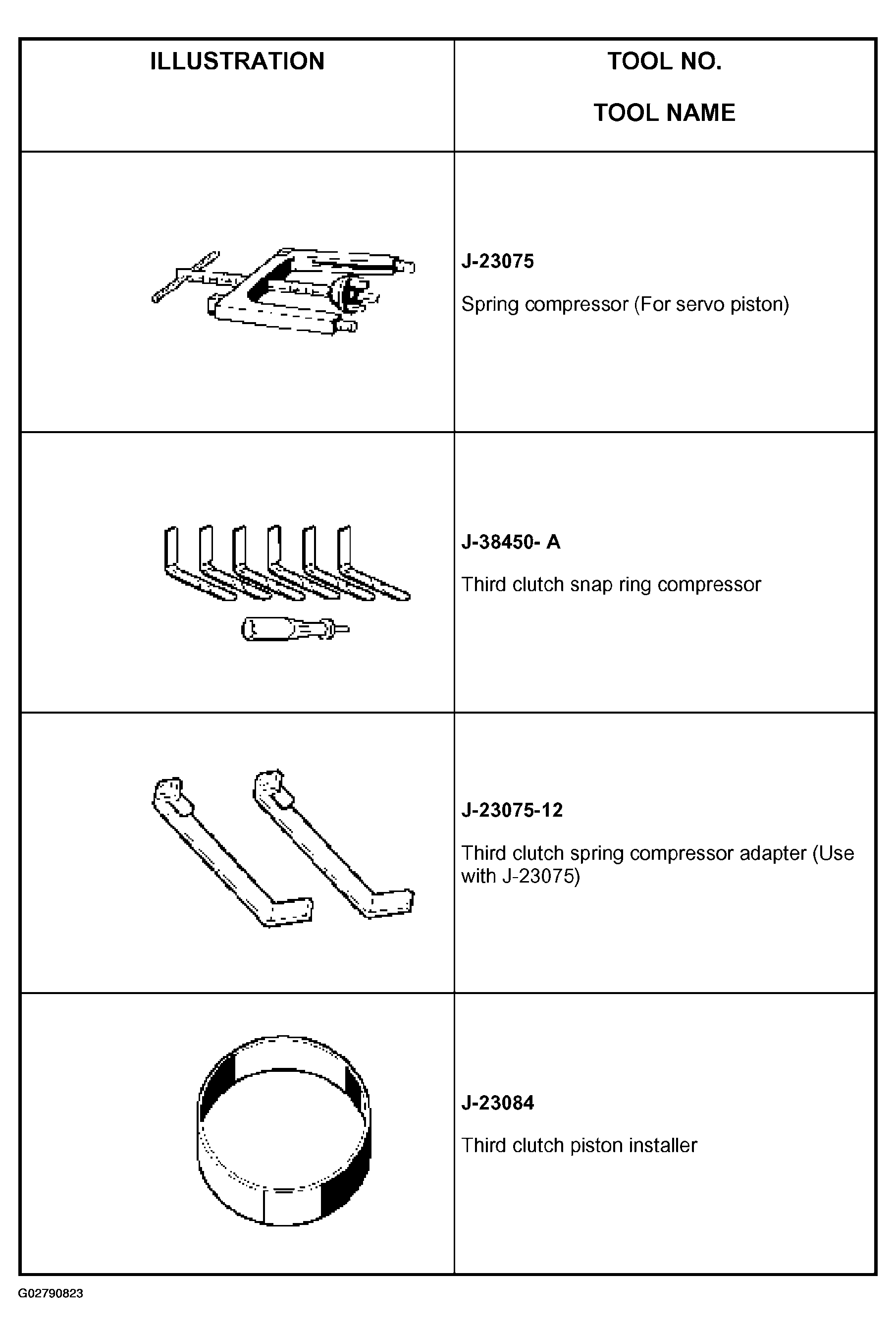

Fig 1: Identifying Special Tools (1 Of 6)

G02790823

Courtesy of ISUZU MOTOR CO.

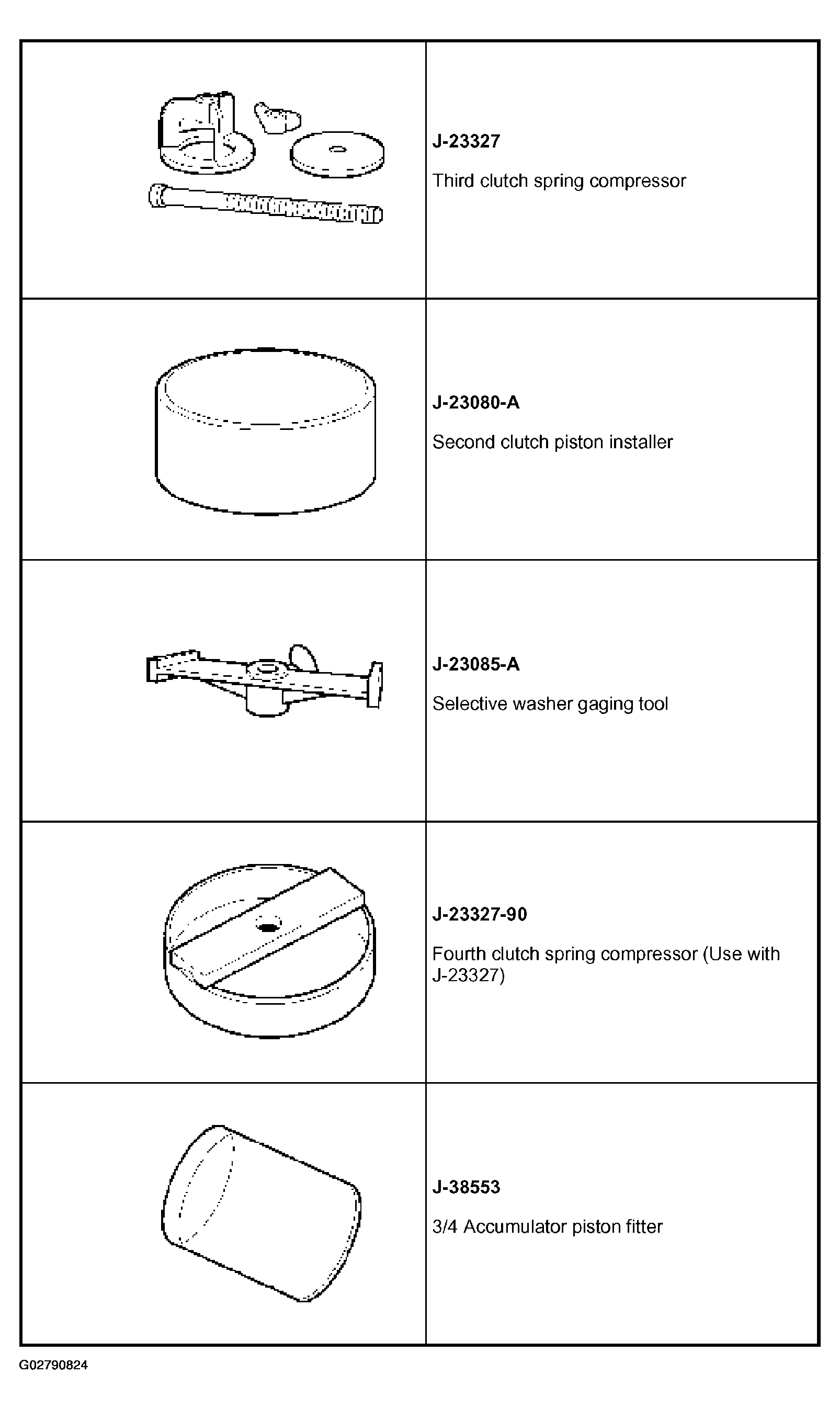

Fig 2: Identifying Special Tools (2 Of 6)

G02790824

Courtesy of ISUZU MOTOR CO.

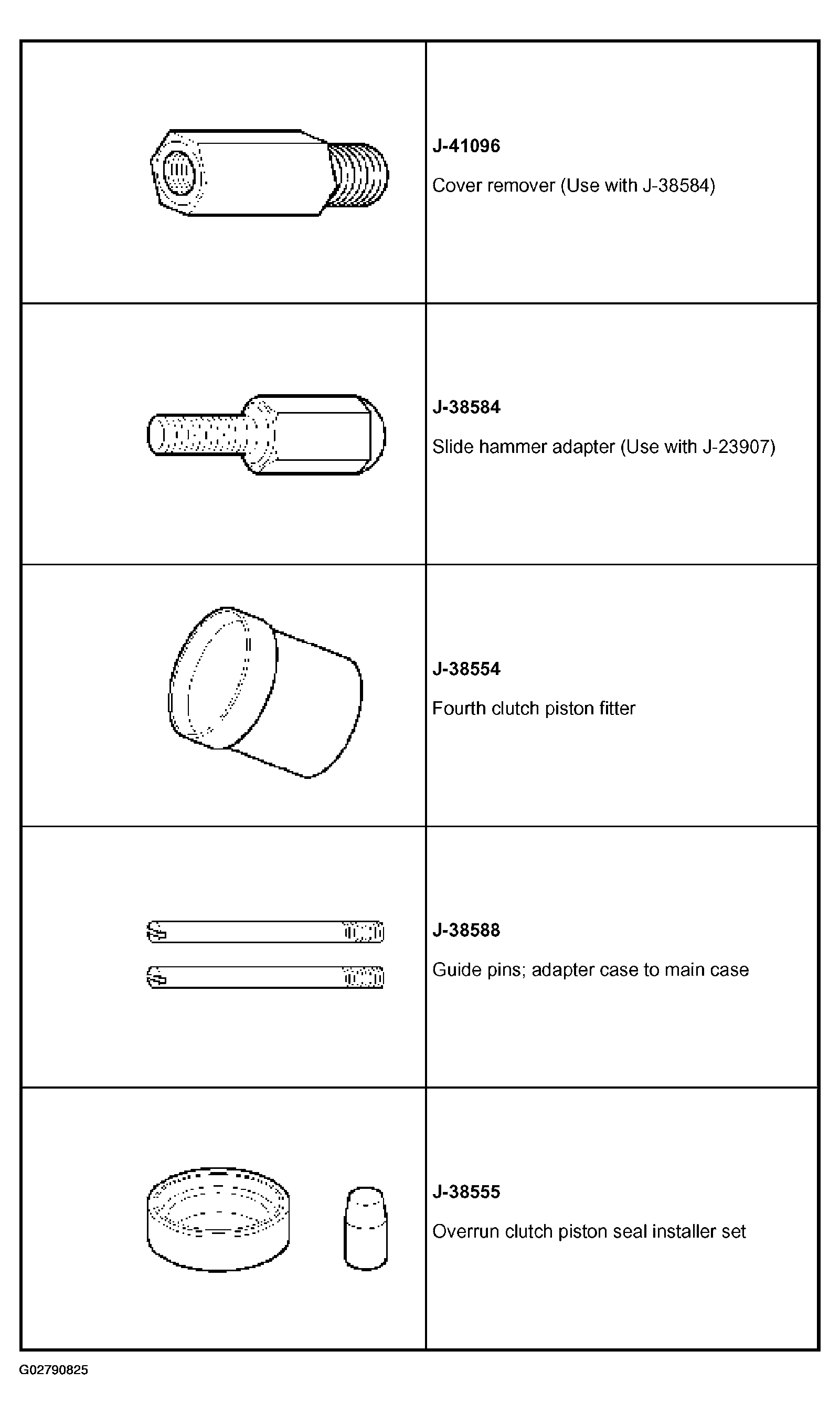

Fig 3: Identifying Special Tools (3 Of 6)

G02790825

Courtesy of ISUZU MOTOR CO.

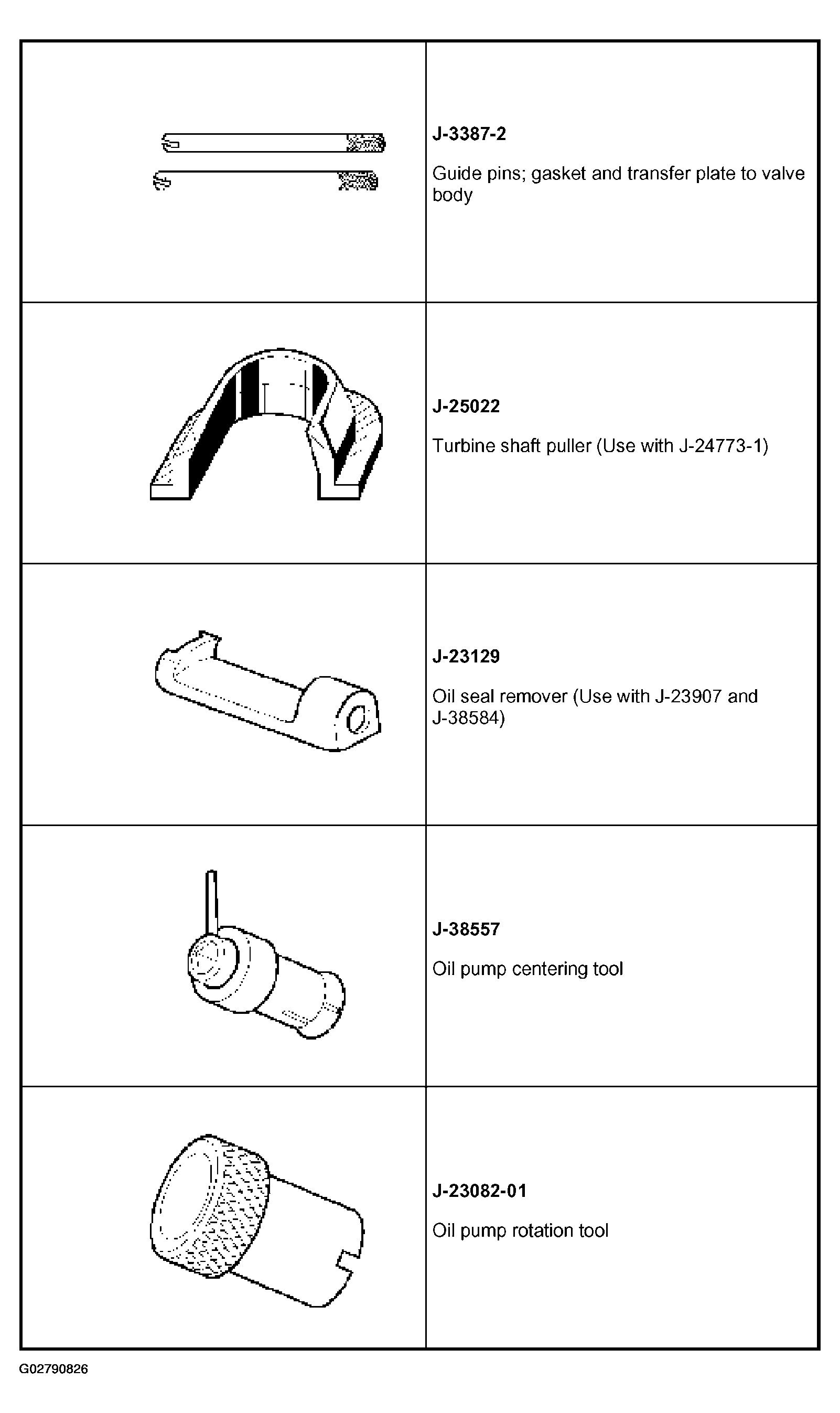

Fig 4: Identifying Special Tools (4 Of 6)

G02790826

Courtesy of ISUZU MOTOR CO.

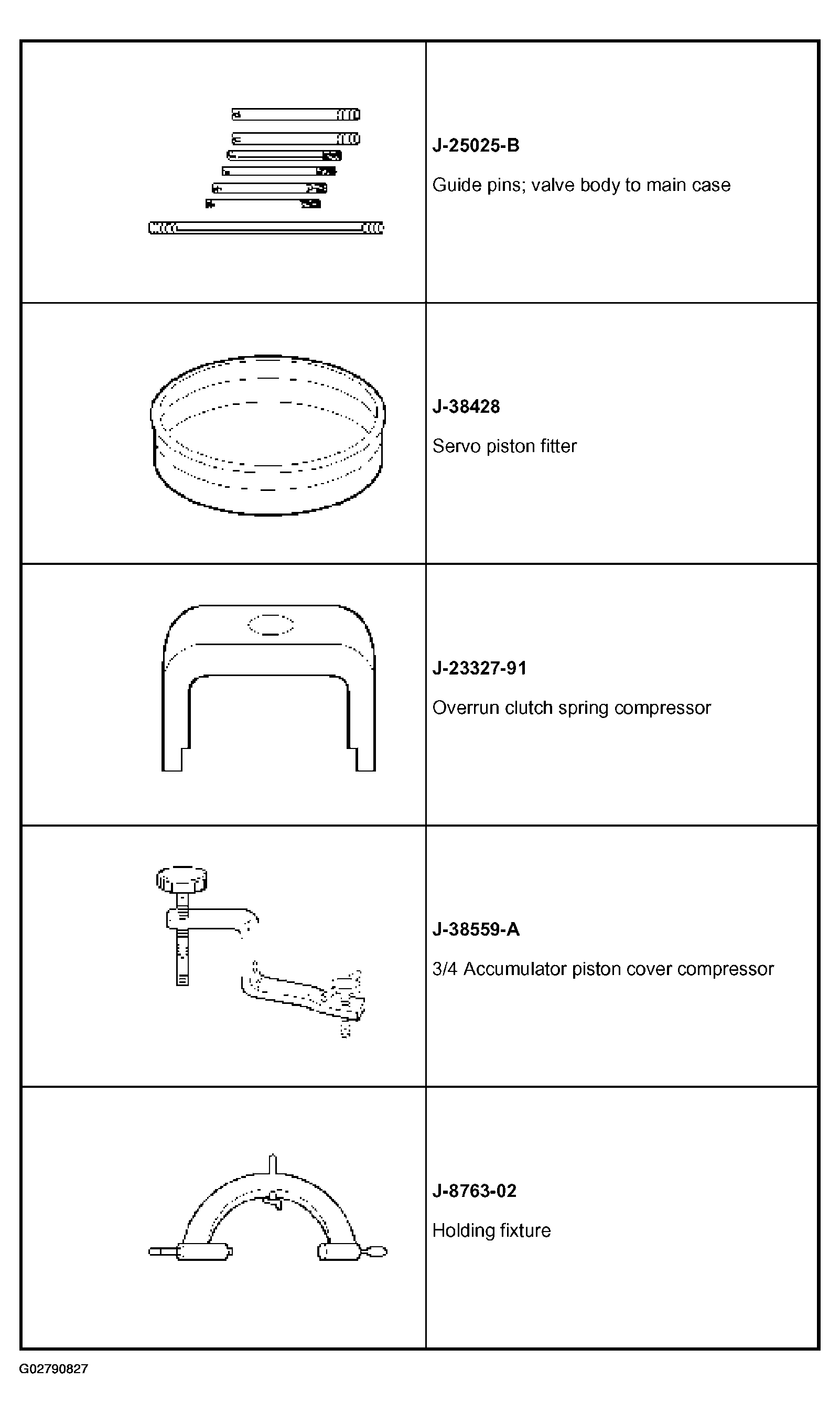

Fig 5: Identifying Special Tools (5 Of 6)

G02790827

Courtesy of ISUZU MOTOR CO.

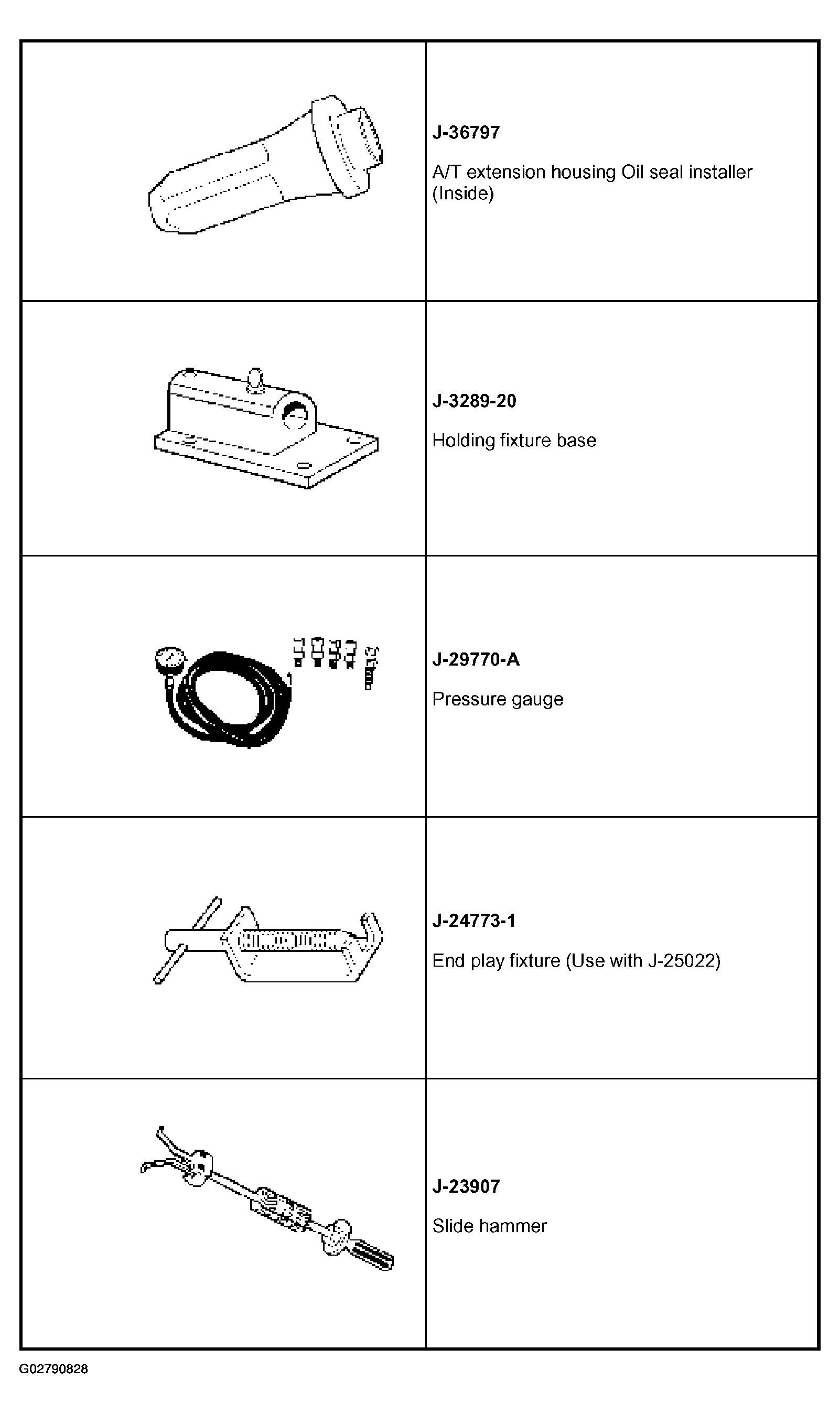

Fig 6: Identifying Special Tools (6 Of 6)

G02790828

Courtesy of ISUZU MOTOR CO.
