Sprag Unit
›
Disassembled View
Disassembled View

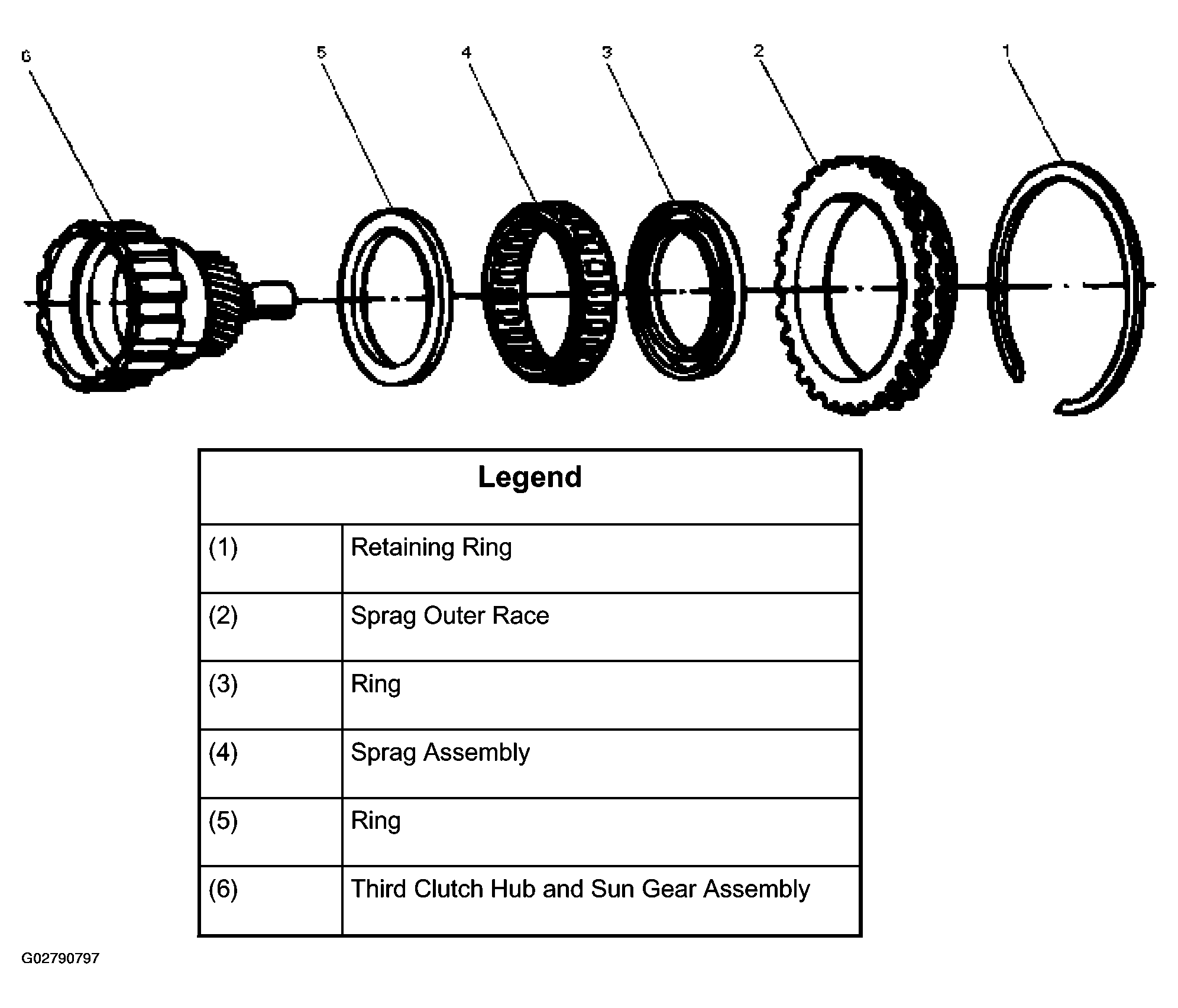

Fig 1: Disassembled View Of Sprag Unit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
