General Description
›
Functions of Input / Output Components
Functions of Input / Output Components

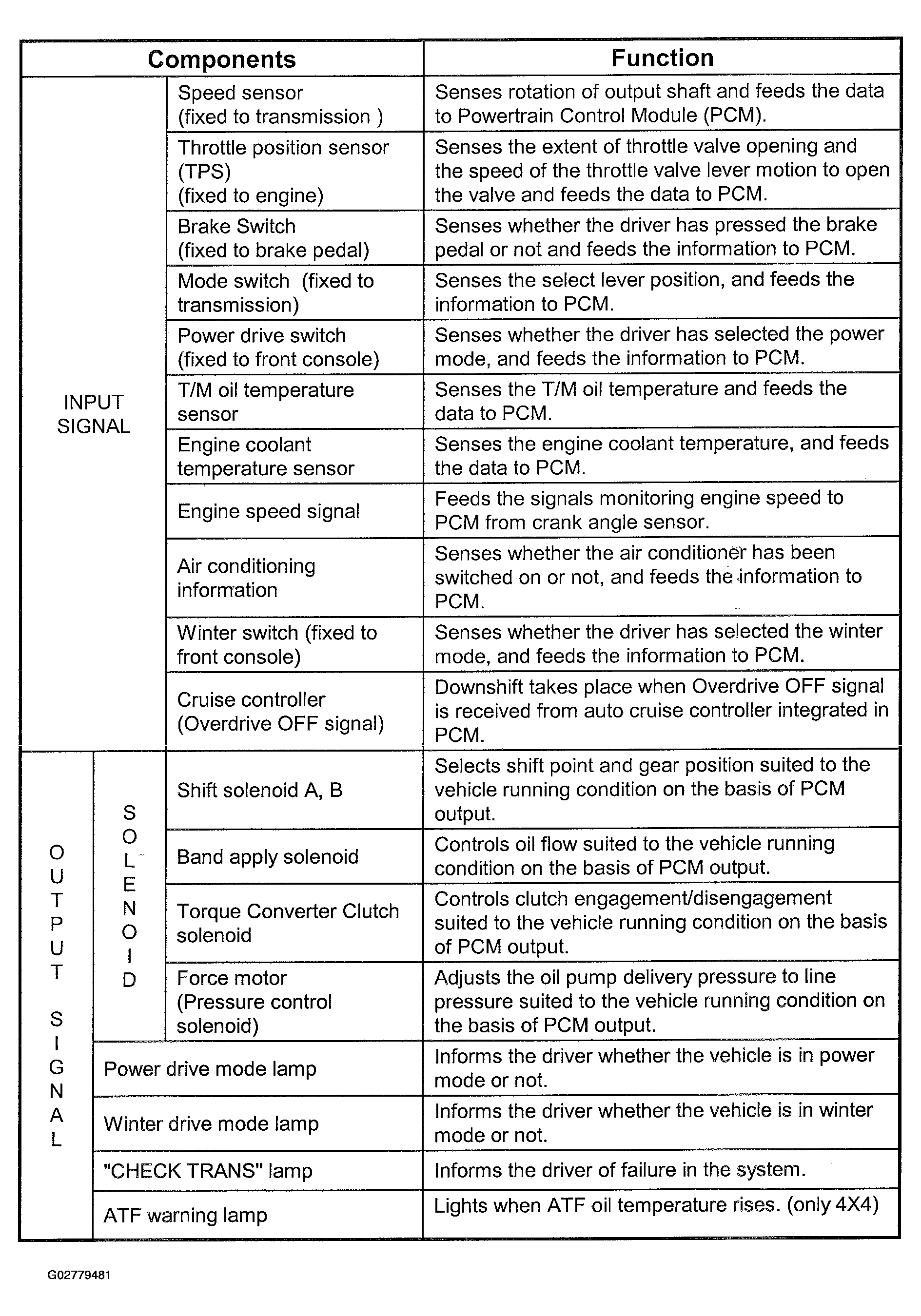

Fig 1: Functions Of Input/Output Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
