Transmission Control System (4L30-E) (HEC2.2L)
›
General Description
›
Shift Mode Control
Shift Mode Control

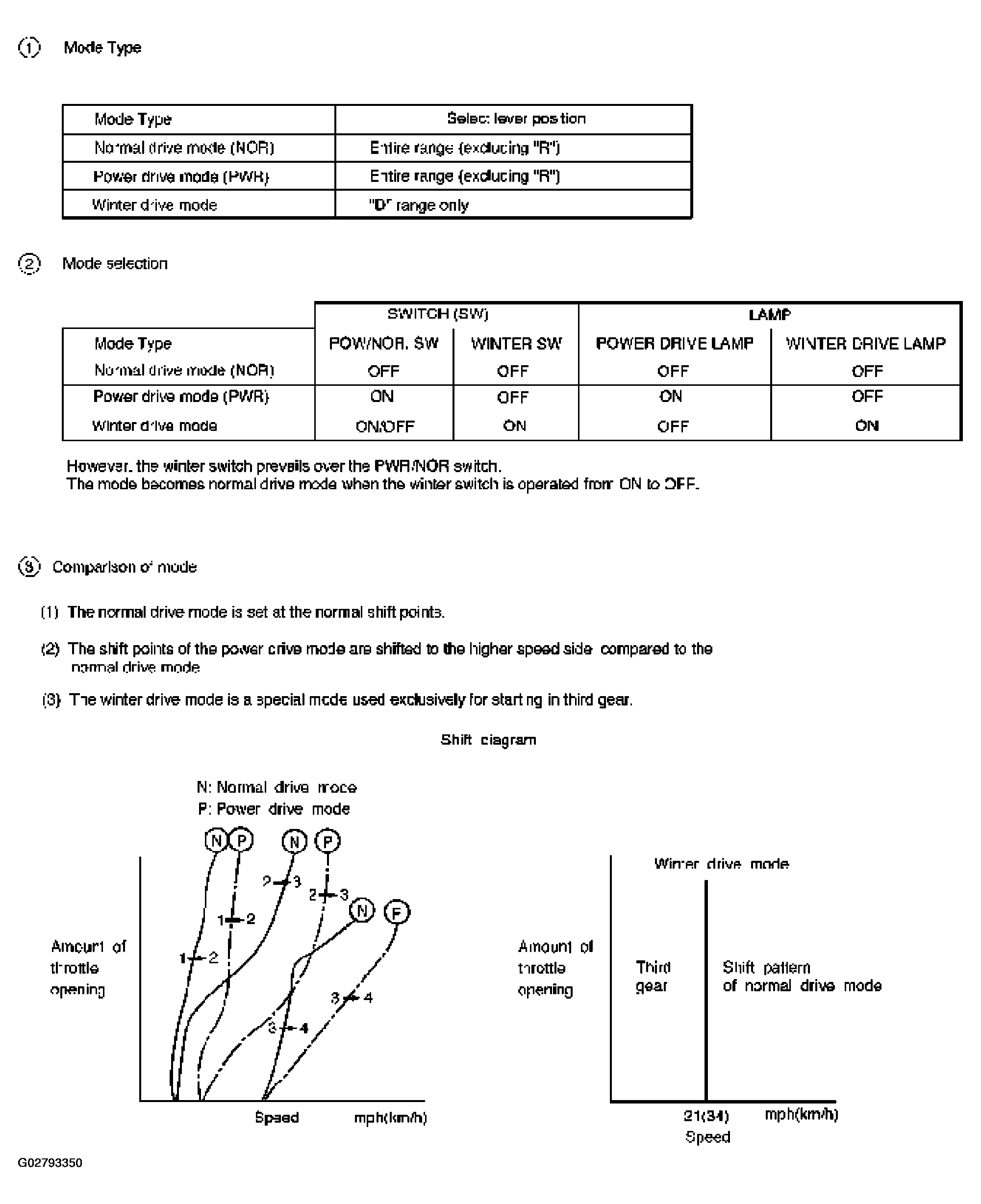

Fig 1: Identifying Shift Mode Control
Courtesy of ISUZU MOTOR CO.
