Cruise Control Main Switch: Removal

Disconnect the battery ground cable.
Remove the meter cluster assembly (1).
- Refer to the INSTRUMENT PANEL ASSEMBLY .
Remove the cruise control main switch (3).
- Disconnect the switch connector.
- To remove the cruise main switch, illumination controller and transfer switch assembly (2), push the lock from the back side of the meter cluster assembly.
- Remove the cruise main switch from the back side of the switch assembly (2).

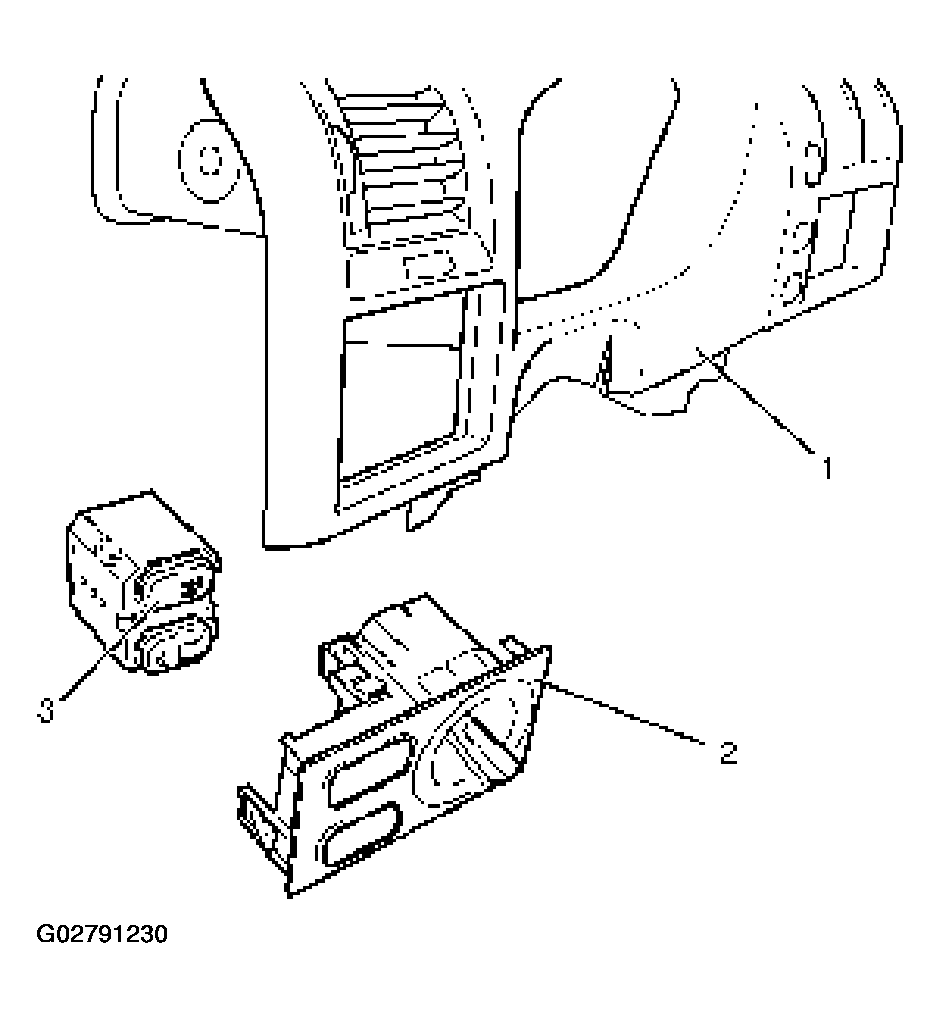

  Fig 1: Removing Cruise Main Switch From Back Side Of Switch Assembly
  Courtesy of ISUZU MOTOR CO.
