Rodeo LS, 3.2 W
›
Repair and Diagnosis
›
Brakes
›
Brakes Control Systems
›
Brake Control System
›
EHCU Connector Pin-out Checks
›
Circuit Diagram
Circuit Diagram

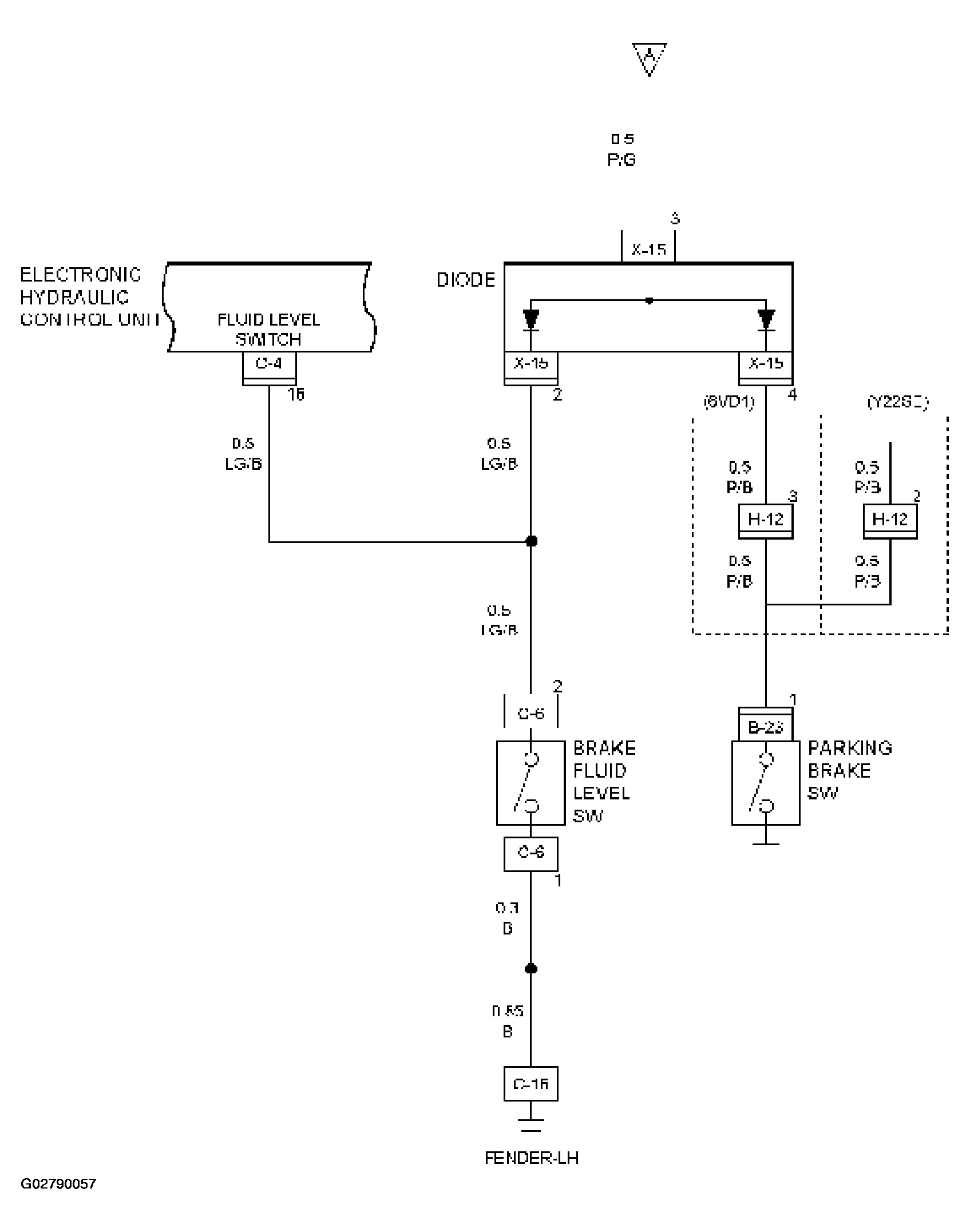

Fig 1: Circuit Diagram (1 Of 3)
Courtesy of ISUZU MOTOR CO.

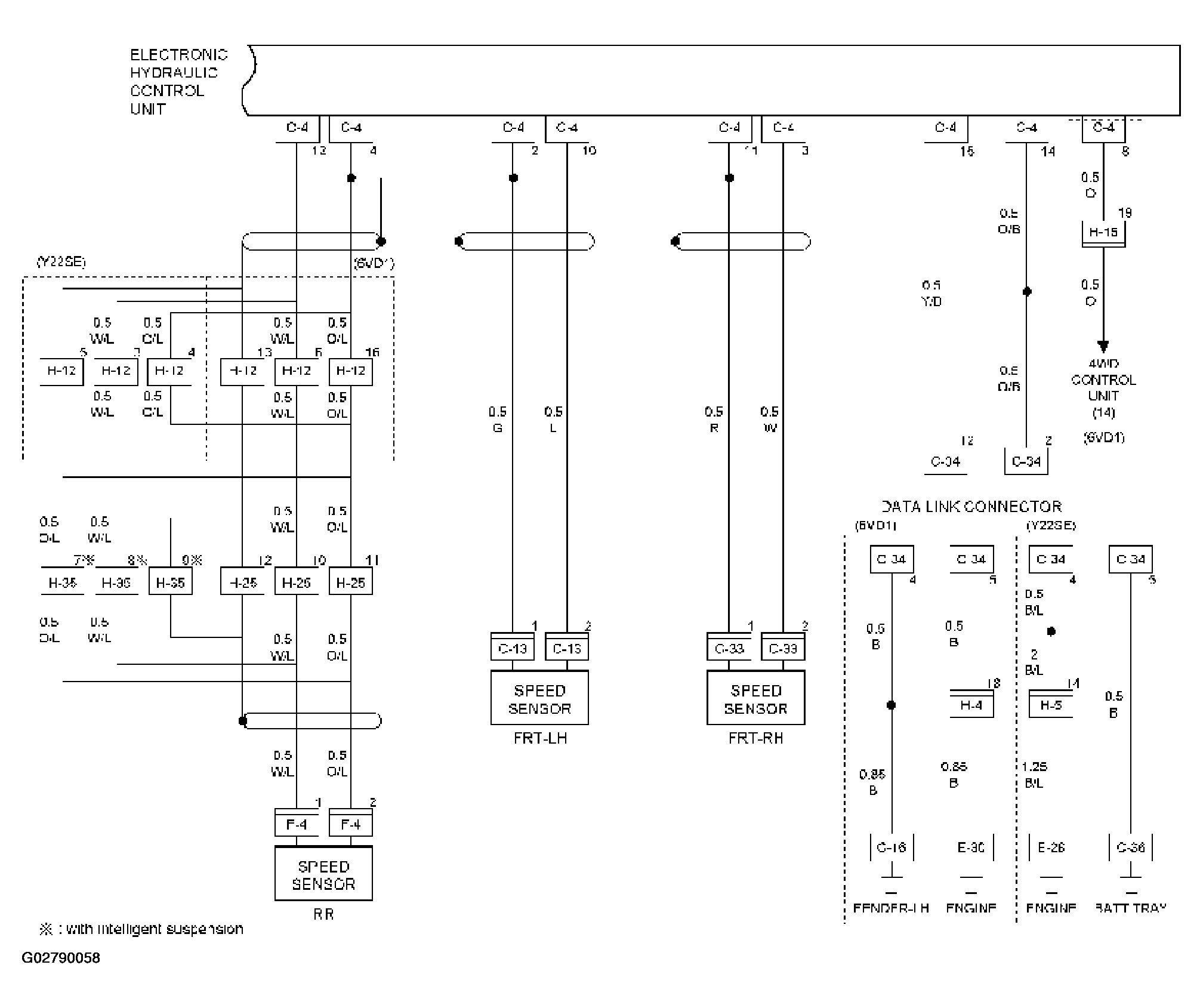

Fig 2: Circuit Diagram (2 Of 3)
Courtesy of ISUZU MOTOR CO.

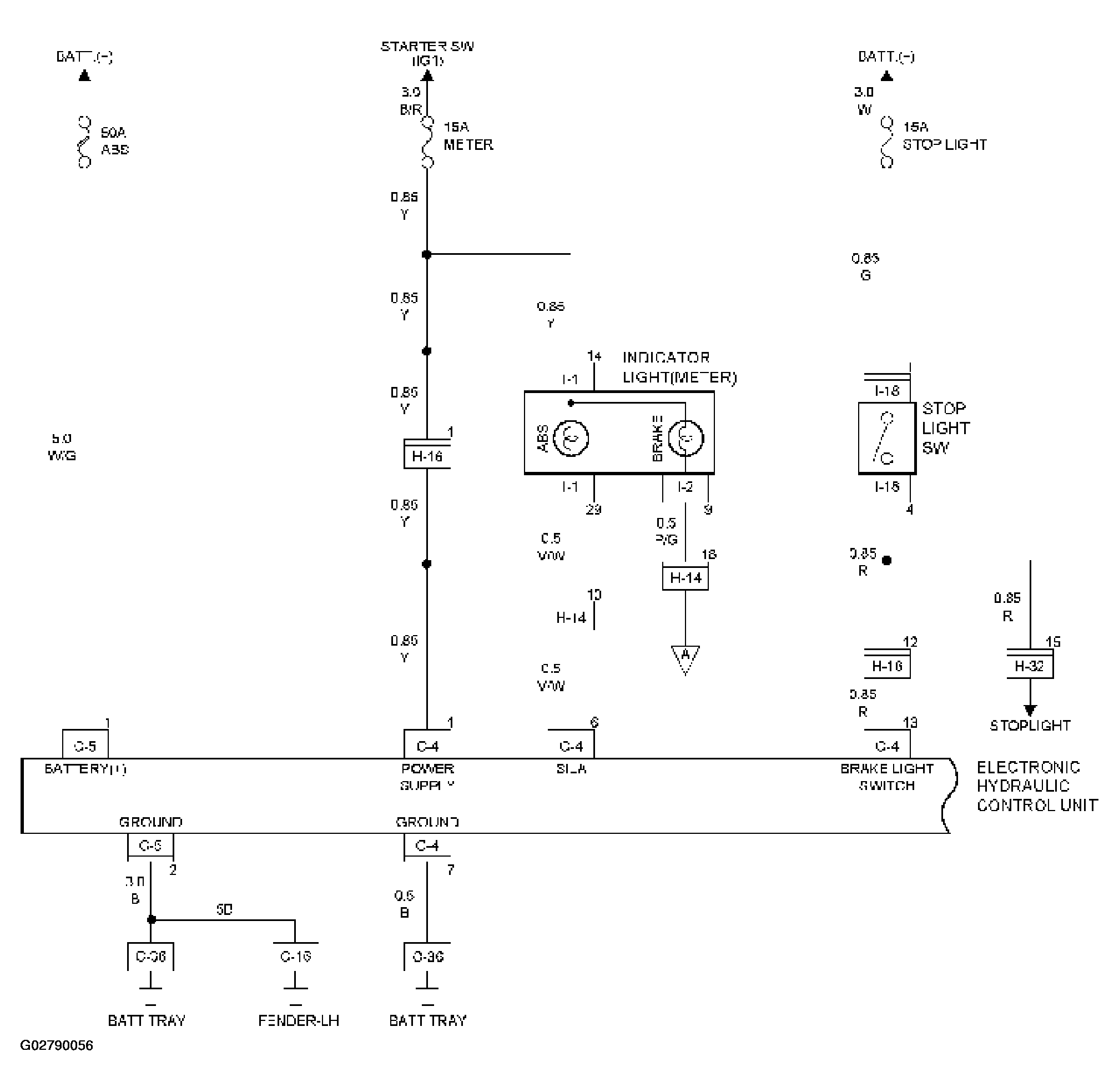

Fig 3: Circuit Diagram (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
