General Diagnosis: Notes

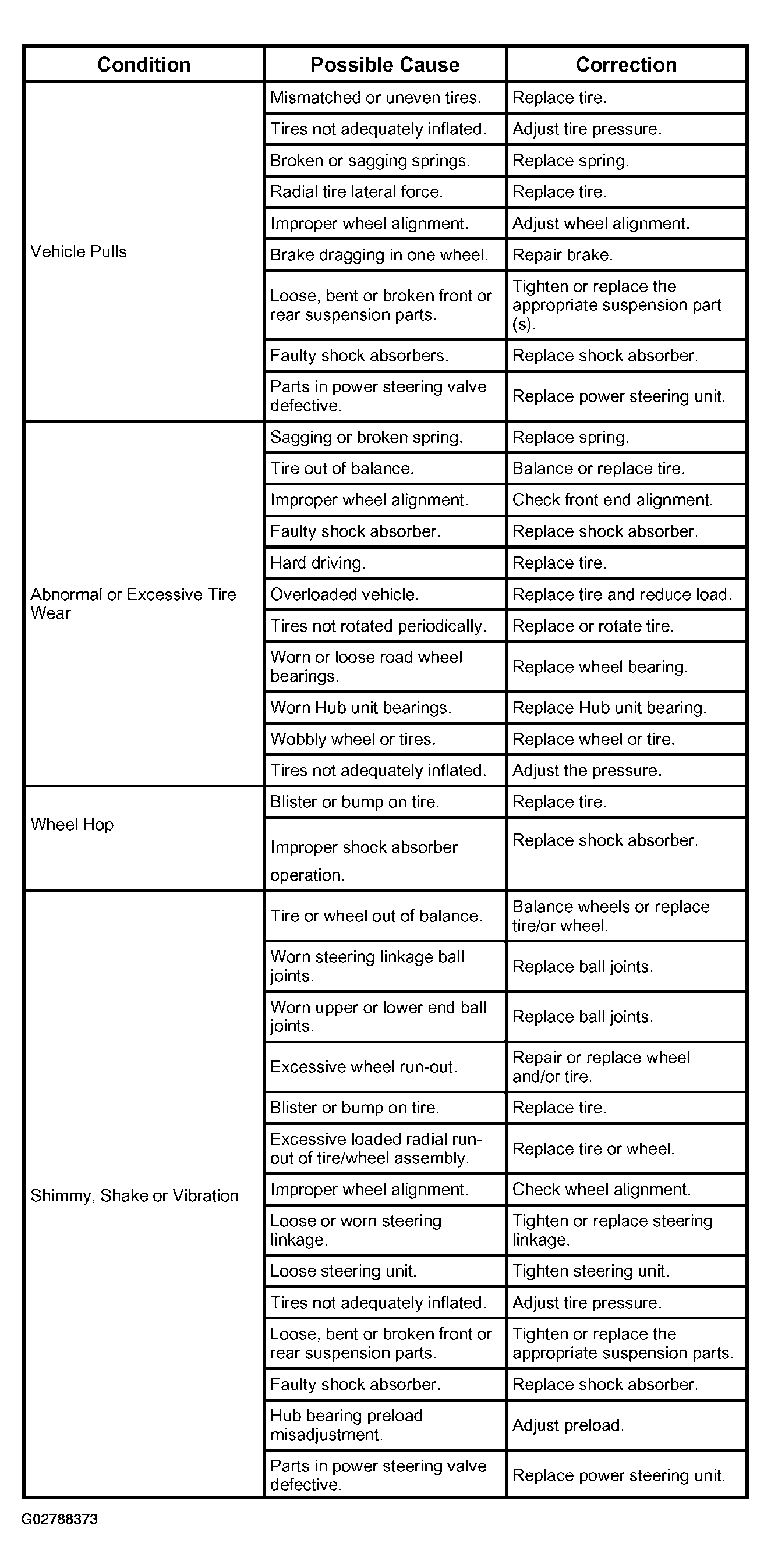

Fig 1: General Diagnosis Chart (1 Of 3)
Courtesy of ISUZU MOTOR CO.

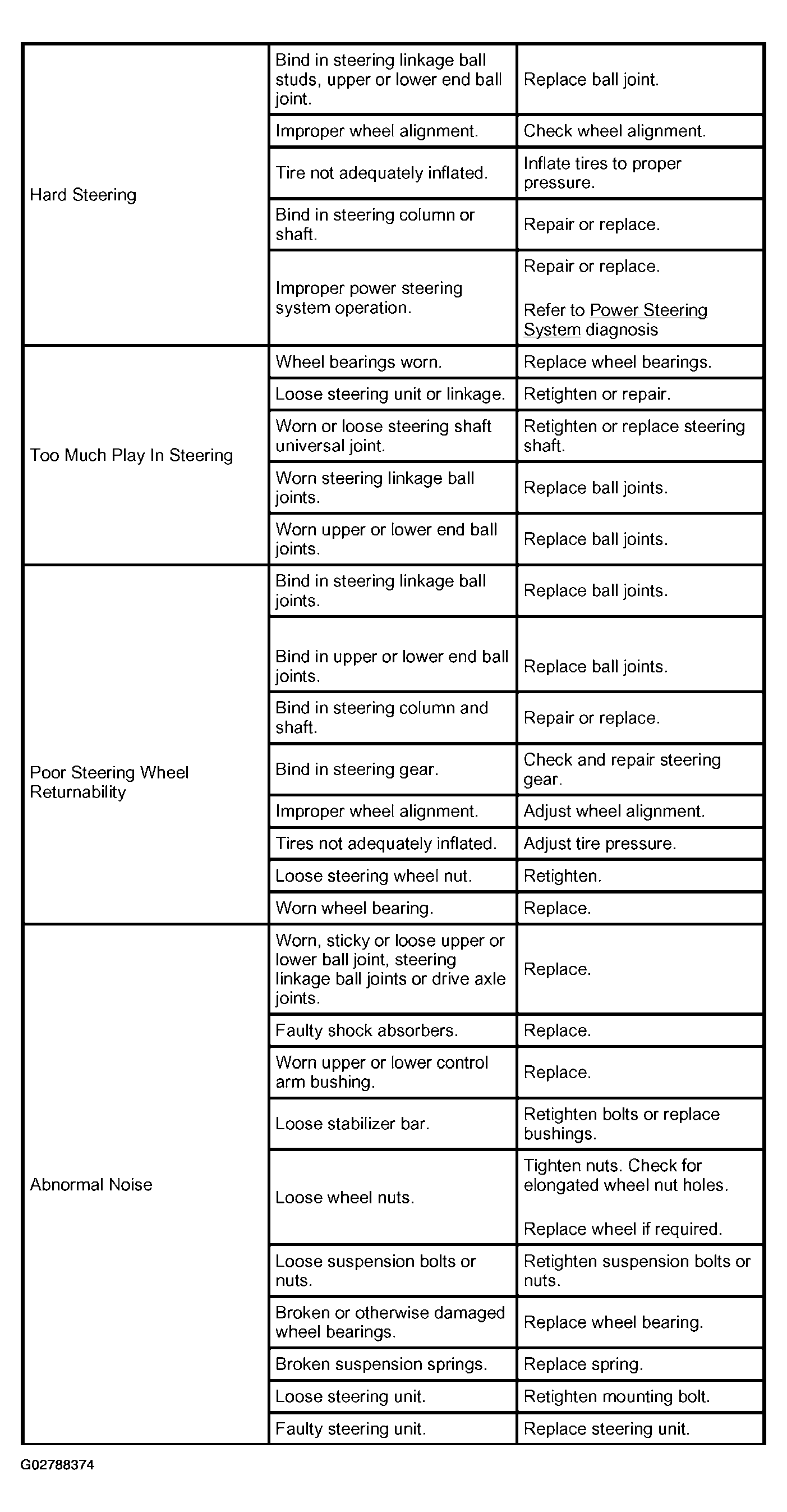

Fig 2: General Diagnosis Chart (2 Of 3)
Courtesy of ISUZU MOTOR CO.

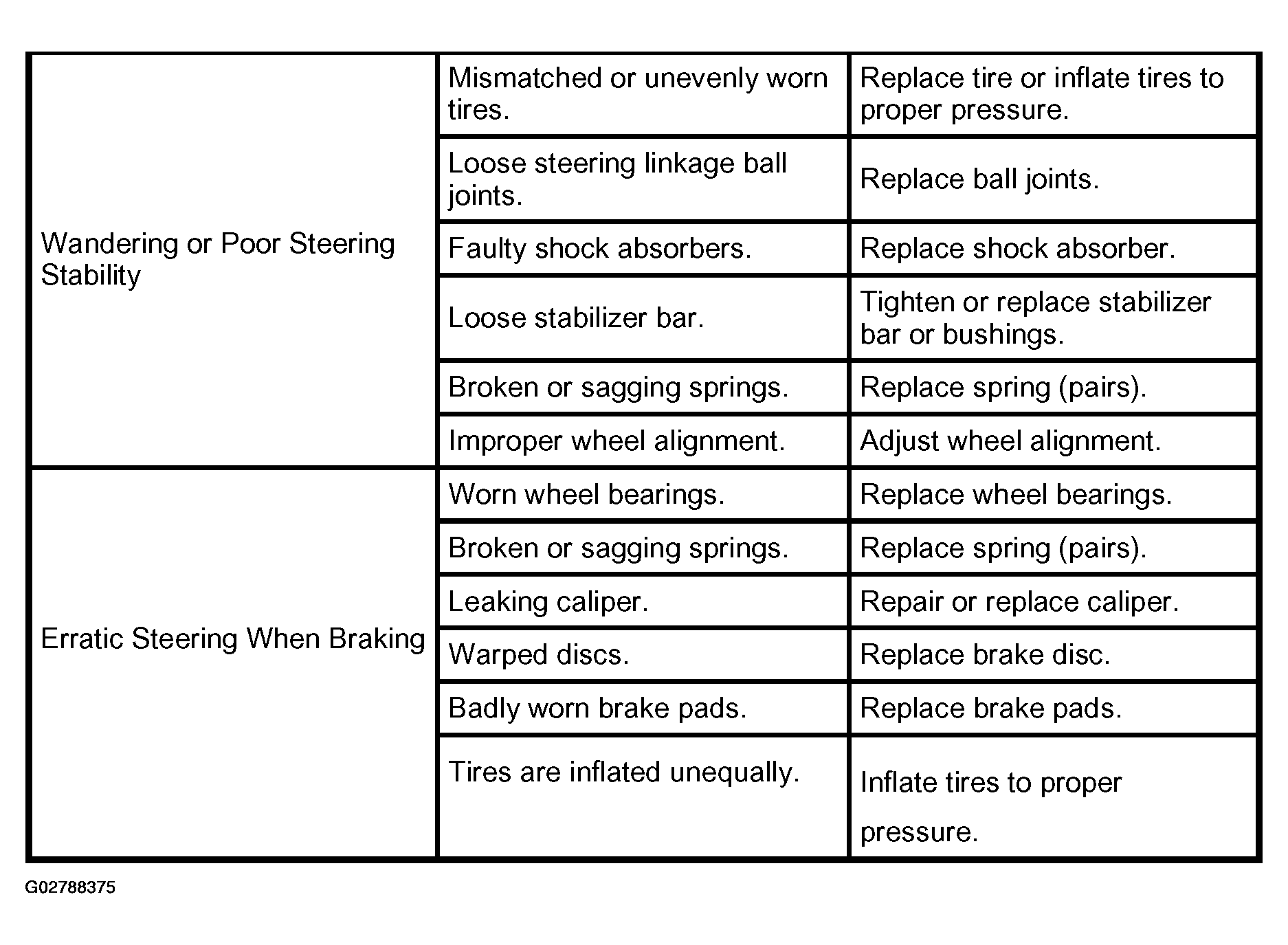

Fig 3: General Diagnosis Chart (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
