Torque Specifications

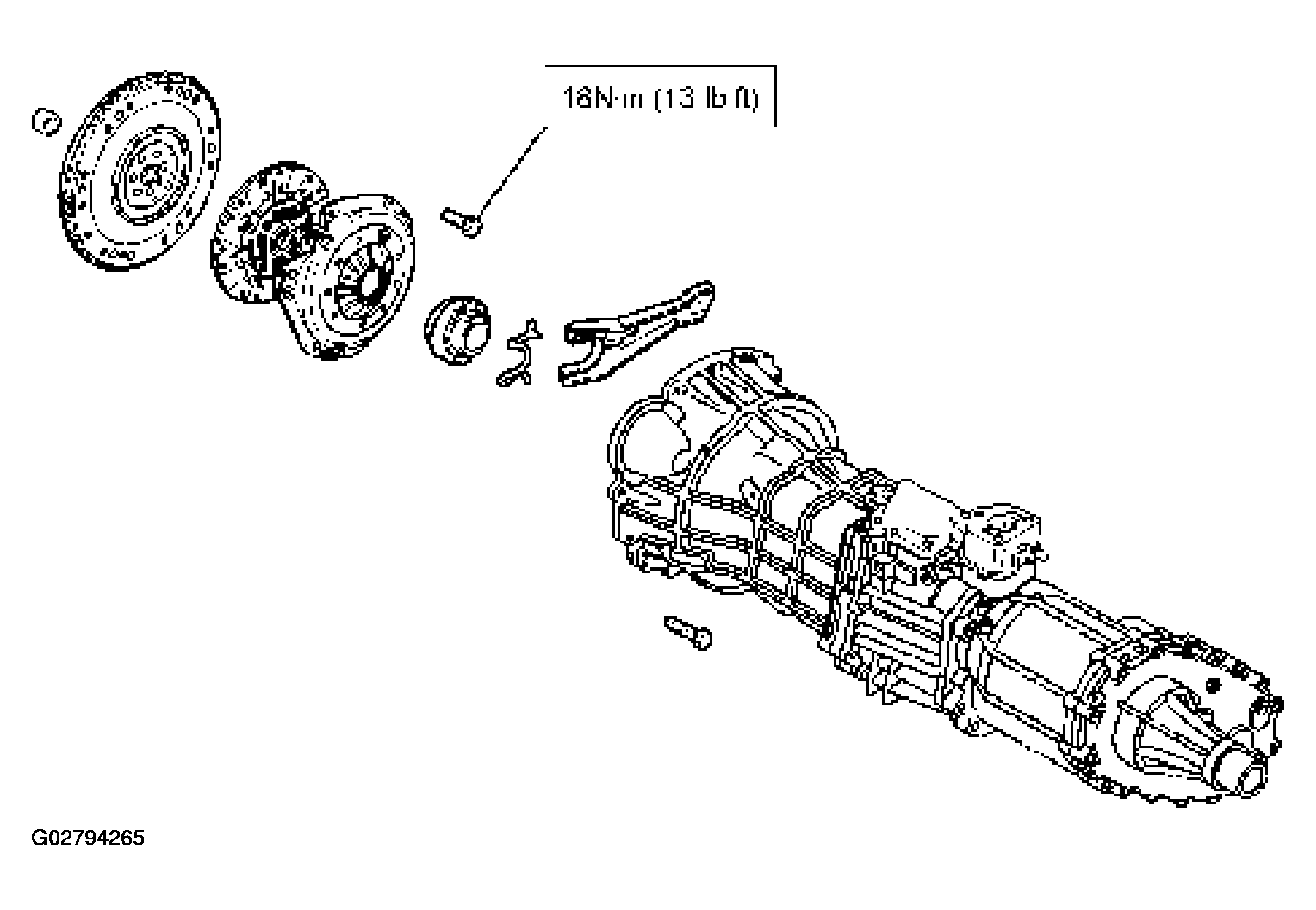

Fig 1: Clutch Torque Specifications (Y22SE)

G02794265

Courtesy of ISUZU MOTOR CO.

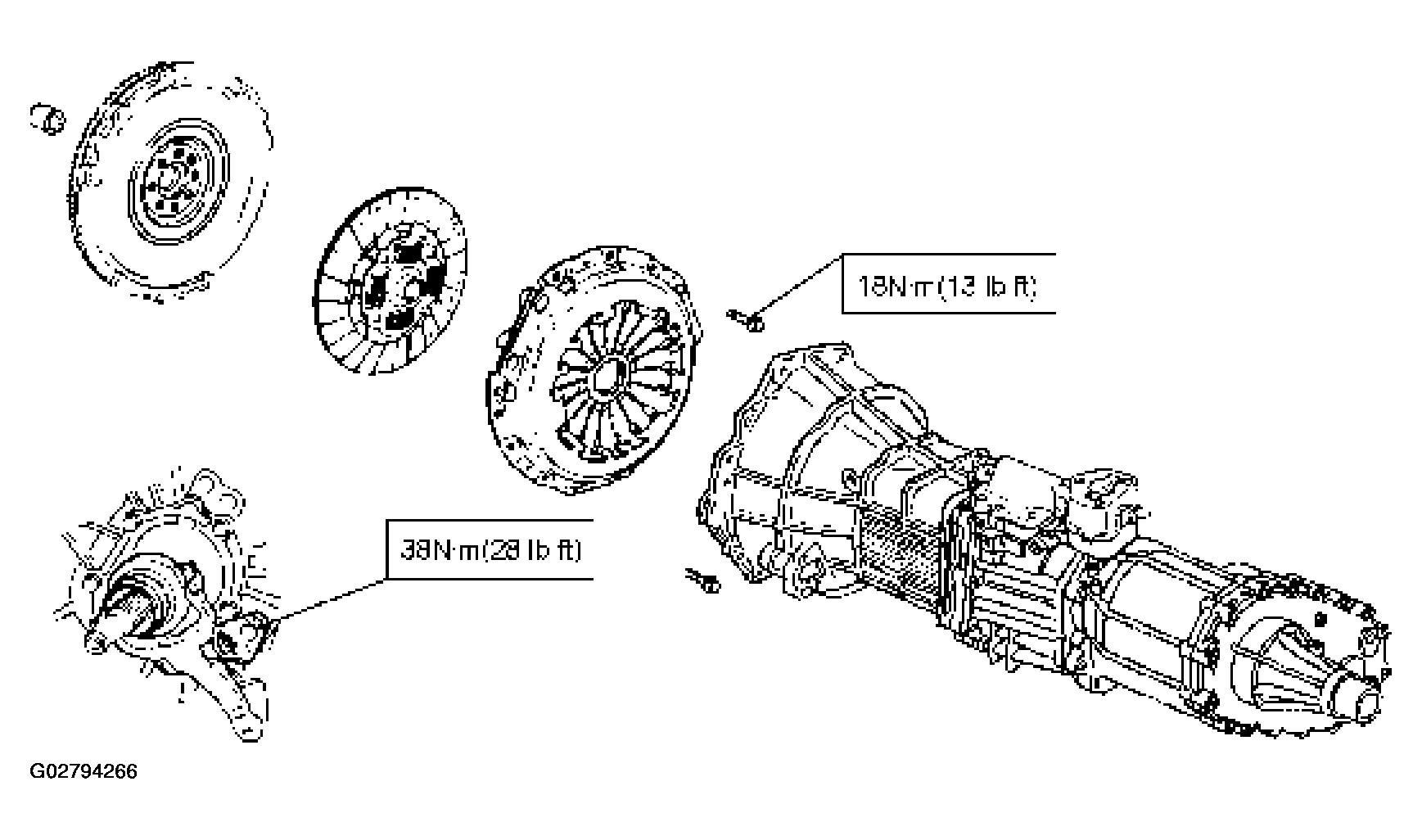

Fig 2: Clutch Torque Specifications (6VD1)

G02794266

Courtesy of ISUZU MOTOR CO.

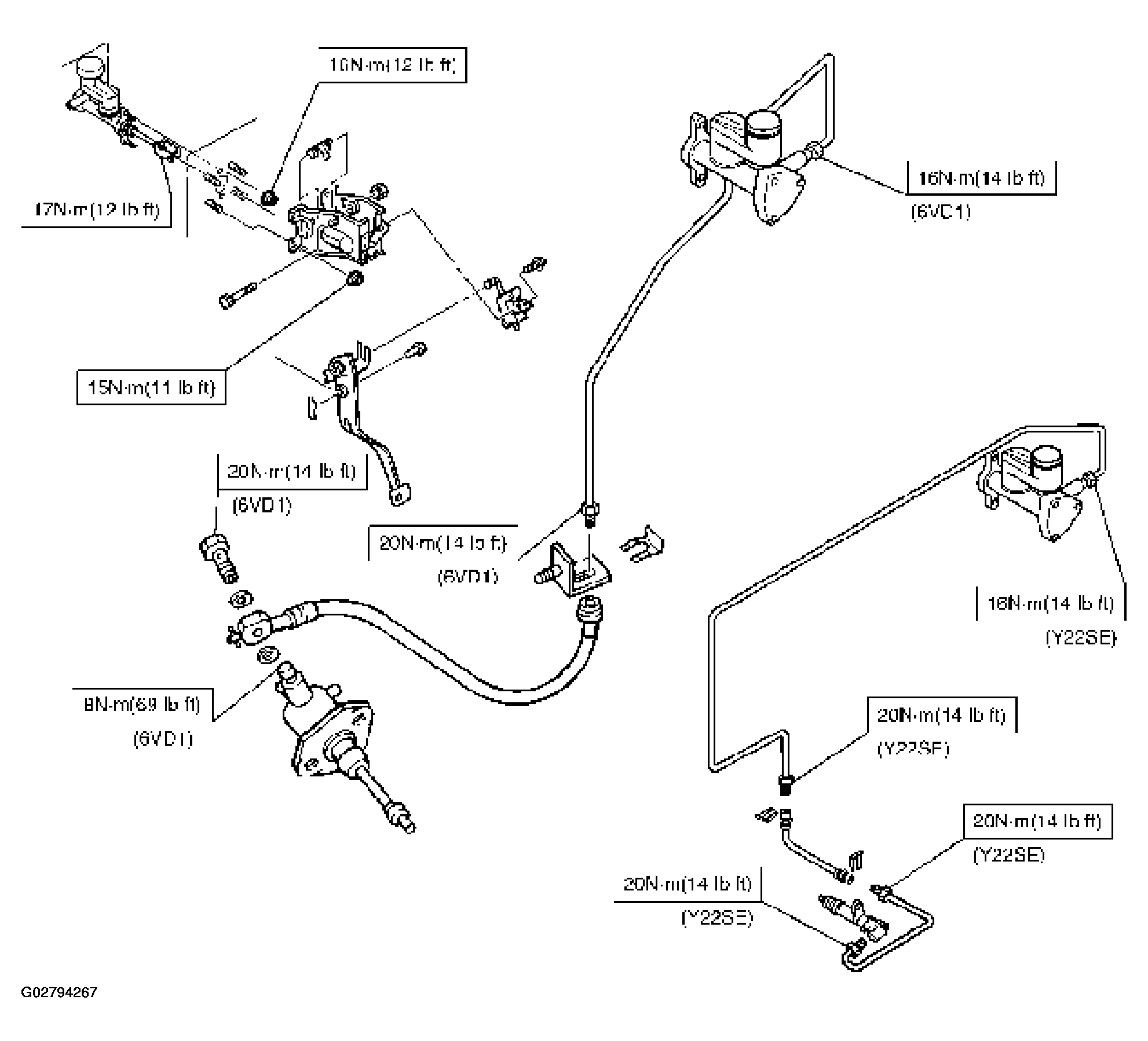

Fig 3: Clutch System Nuts And Bolts Torque Specifications

G02794267

Courtesy of ISUZU MOTOR CO.
