Removal Procedure

  1. Disconnect the negative battery cable.
  2. Disconnect the electrical harness from the accelerator position sensor.

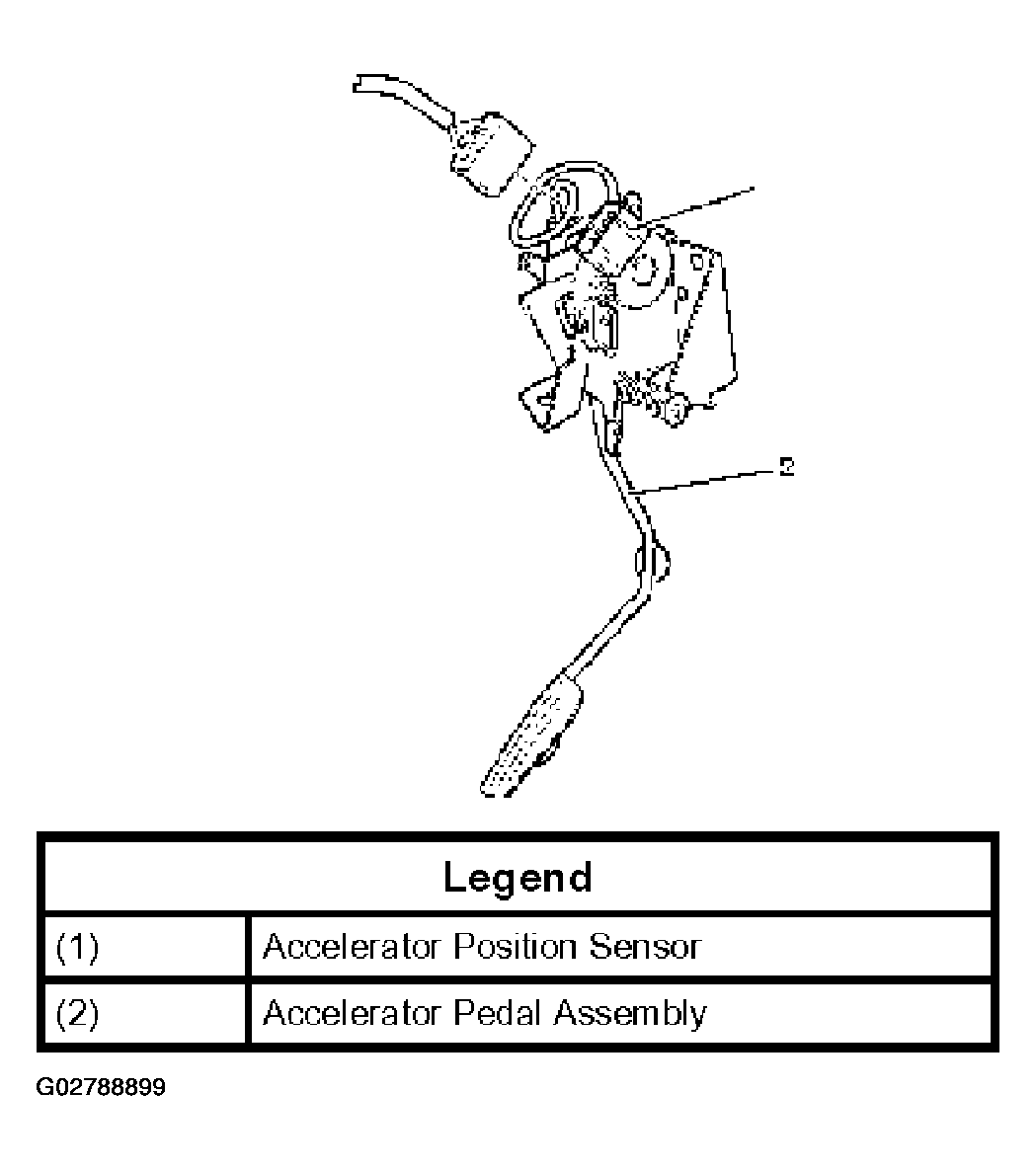

    Fig 1: Disconnecting Electrical Harness From Accelerator Position Sensor
    G02788899Courtesy of ISUZU MOTOR CO.
  3. Remove the two screws from the accelerator pedal assembly.

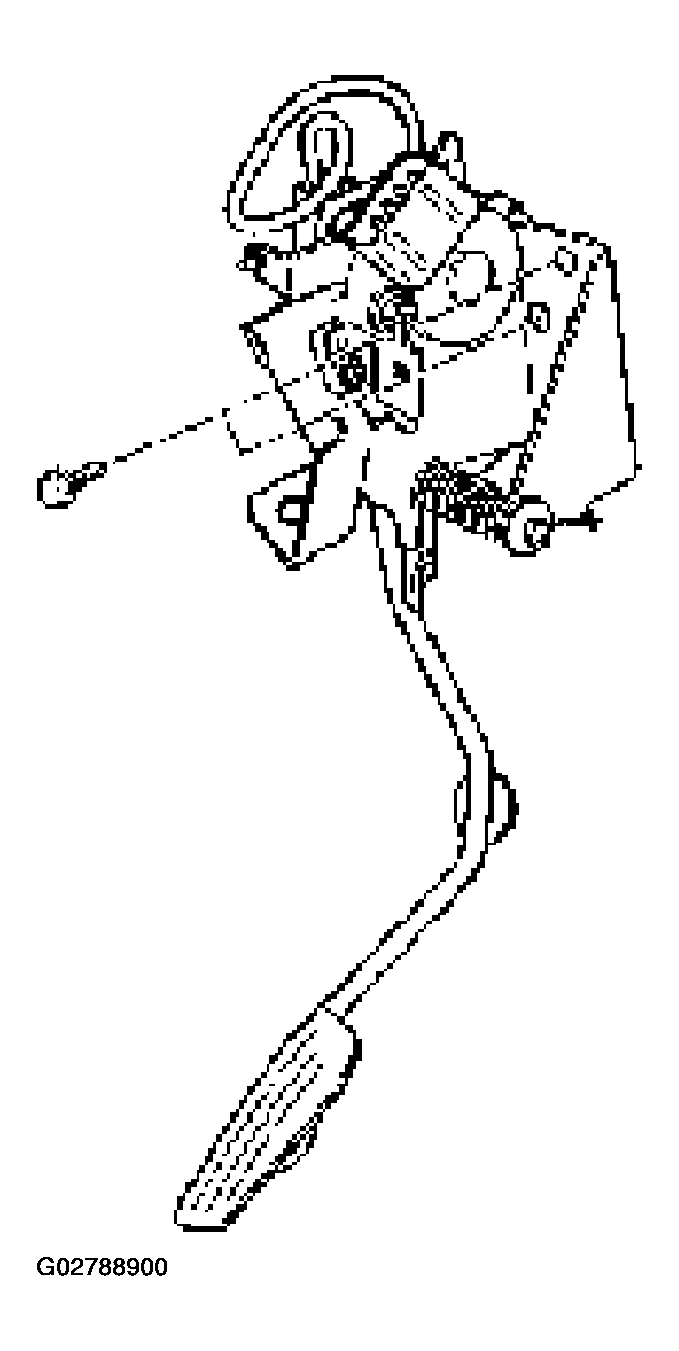

    Fig 2: Removing Screws From Accelerator Pedal Assembly
    G02788900Courtesy of ISUZU MOTOR CO.
  4. Remove the accelerator pedal assembly from the bulkhead.
