MIL/RPL Lamp Function Check: Notes

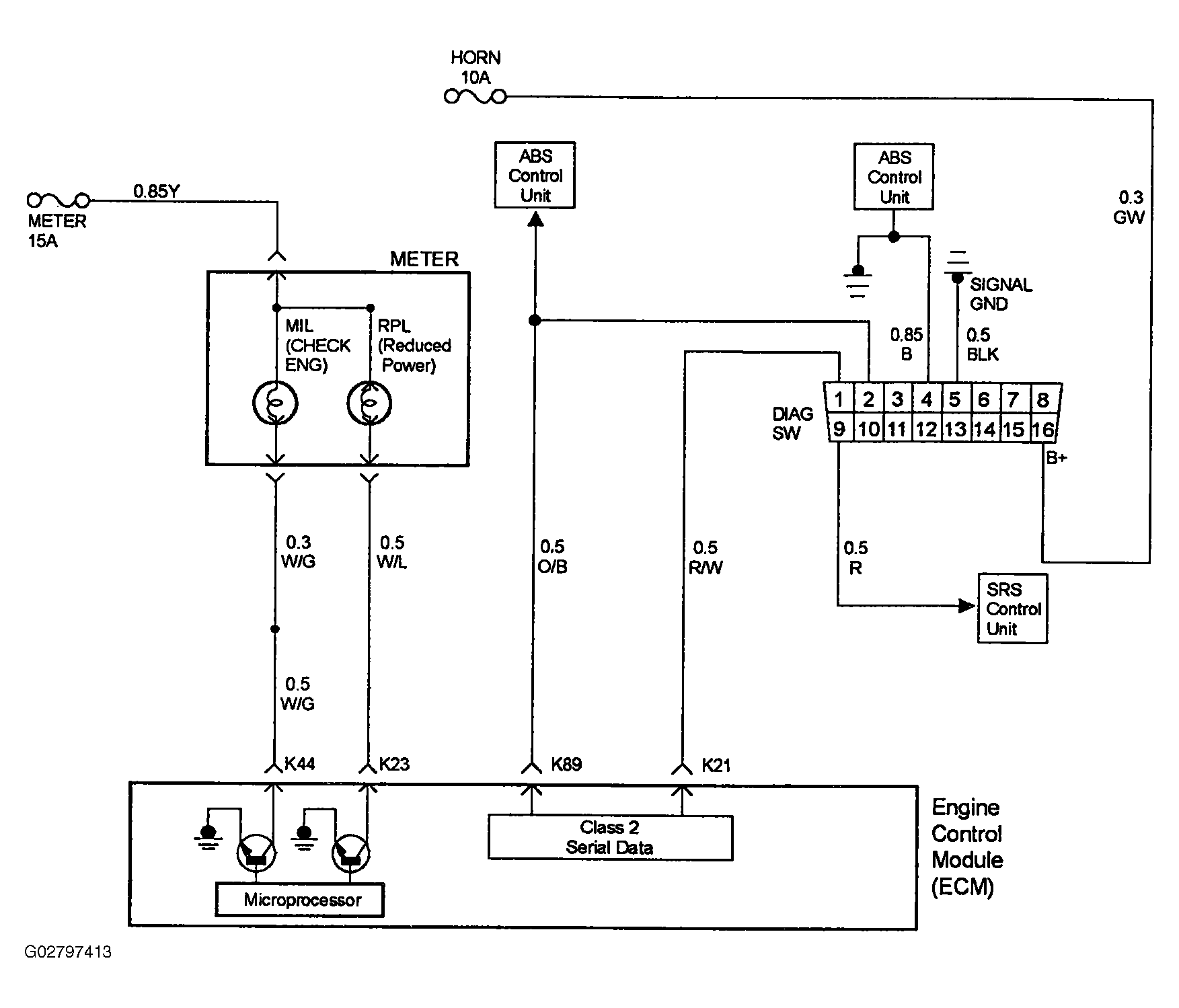

Fig 1: Identifying MIL/RPL Lamp Function Diagram
G02797413Courtesy of ISUZU MOTOR CO.
