DTC P1772: (FLASHING CODE 26) Transmission Fluid Temperature Sensor Circuit Low Input (Valve Body): Notes

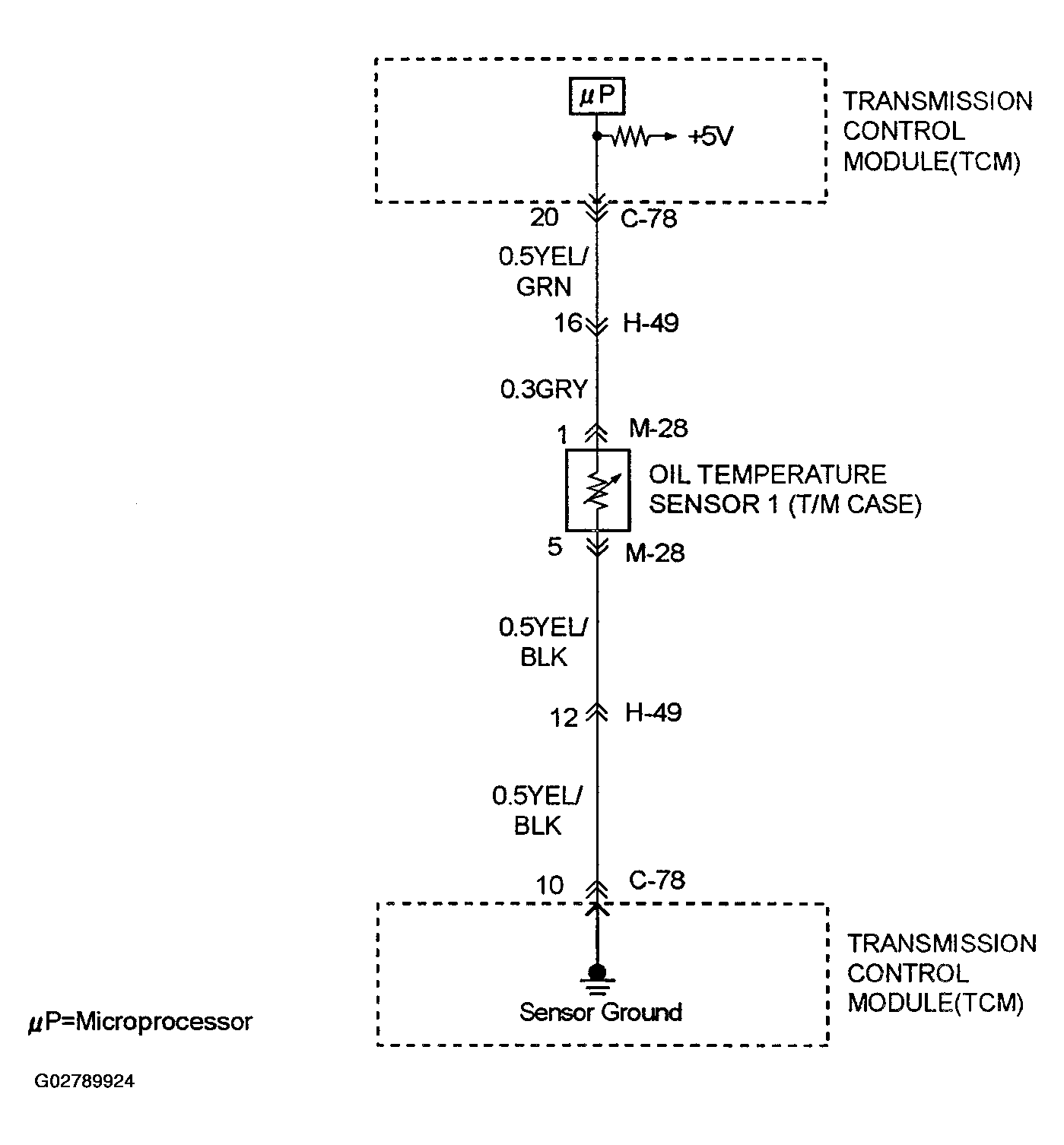

Fig 1: DTC P1772: (Flashing Code 26) Transmission Fluid Temperature Sensor Circuit Low Input (Valve Body) Wiring Diagram
G02789924Courtesy of ISUZU MOTOR CO.
