B8003 Transponder Key Problem

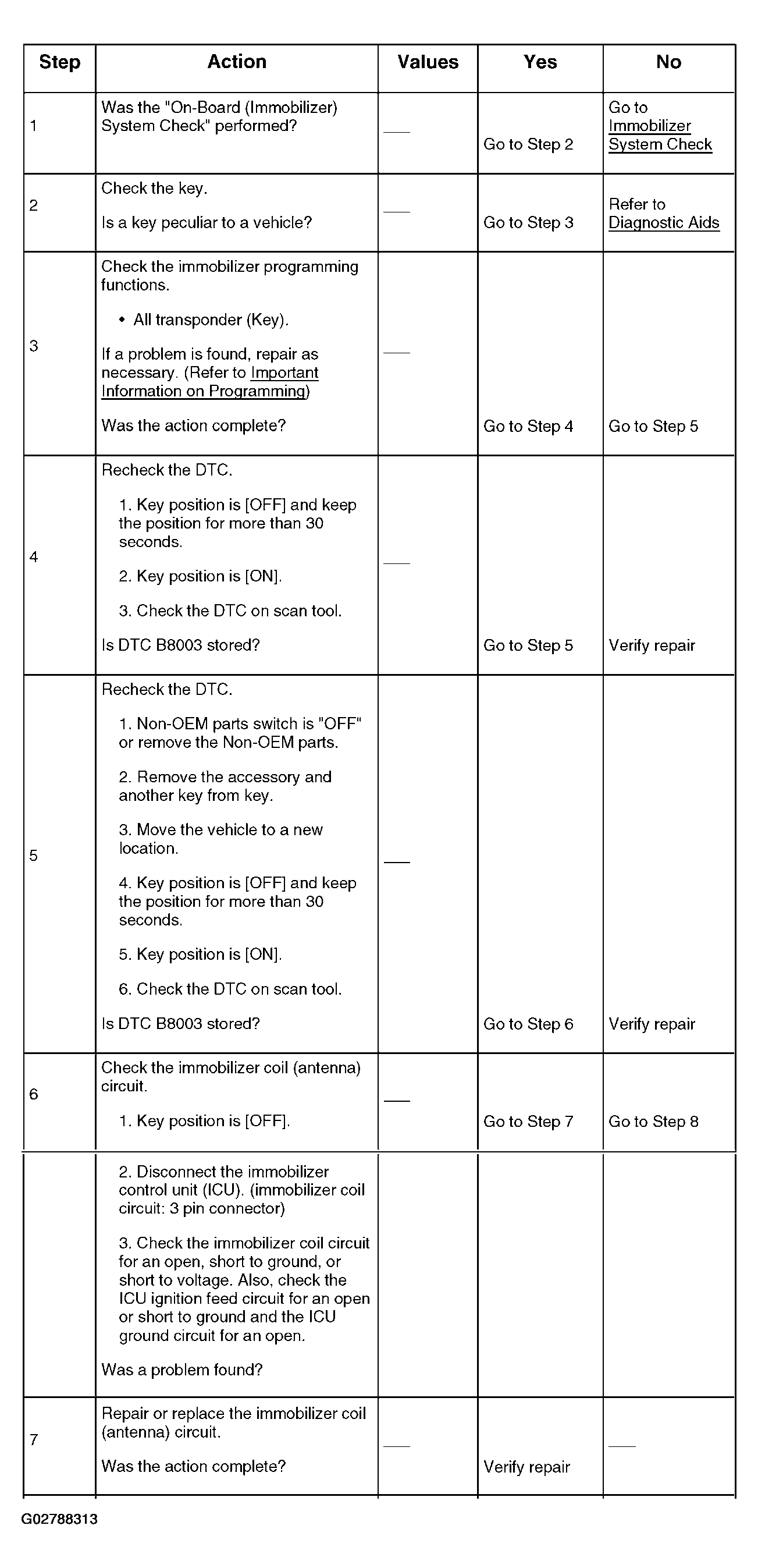

Fig 1: Diagnosis Procedure - B8003 Transponder Key Problem (1 Of 2)

Courtesy of ISUZU MOTOR CO.

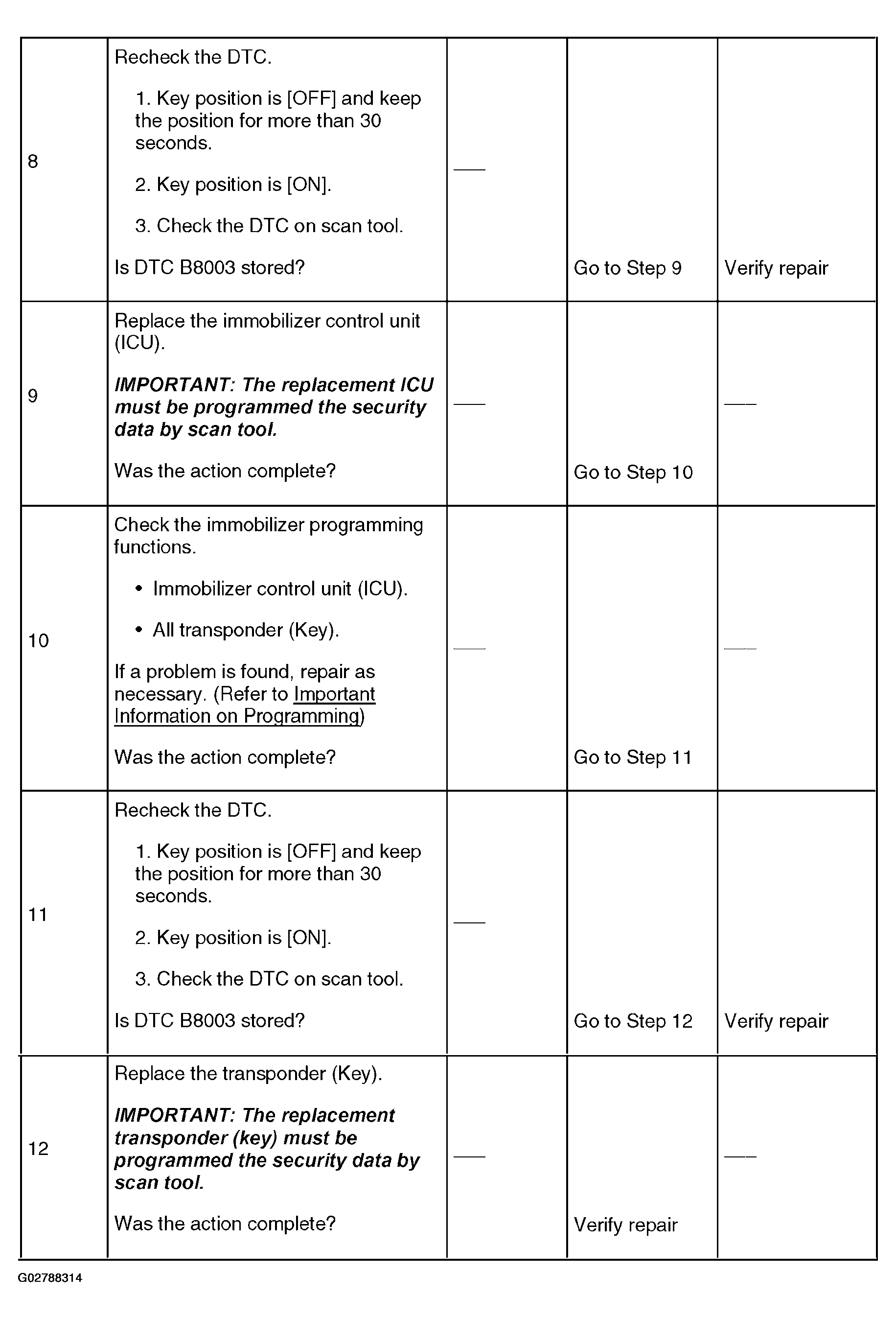

Fig 2: Diagnosis Procedure - B8003 Transponder Key Problem (2 Of 2)

Courtesy of ISUZU MOTOR CO.
