Immobilizer System Check

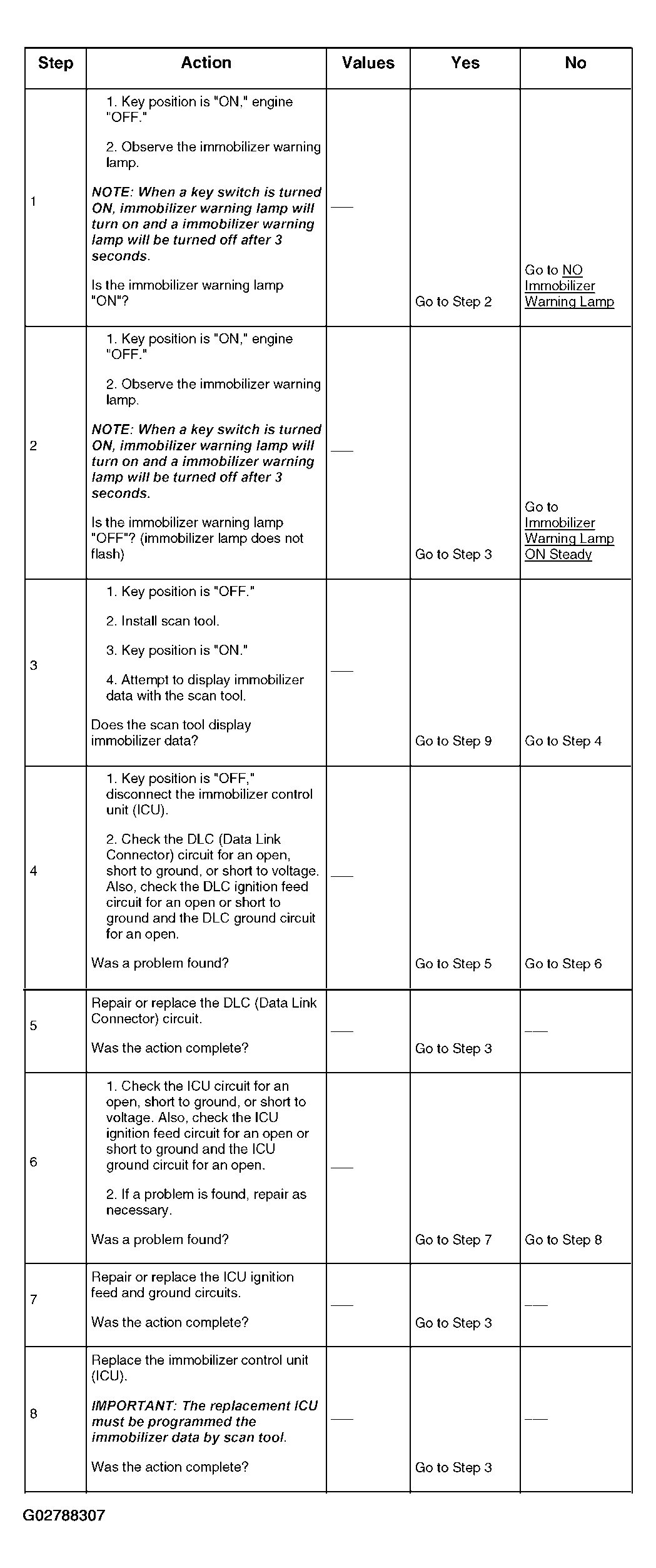

Fig 1: Diagnosis Procedure - Immobilizer System Check (1 Of 2)

Courtesy of ISUZU MOTOR CO.

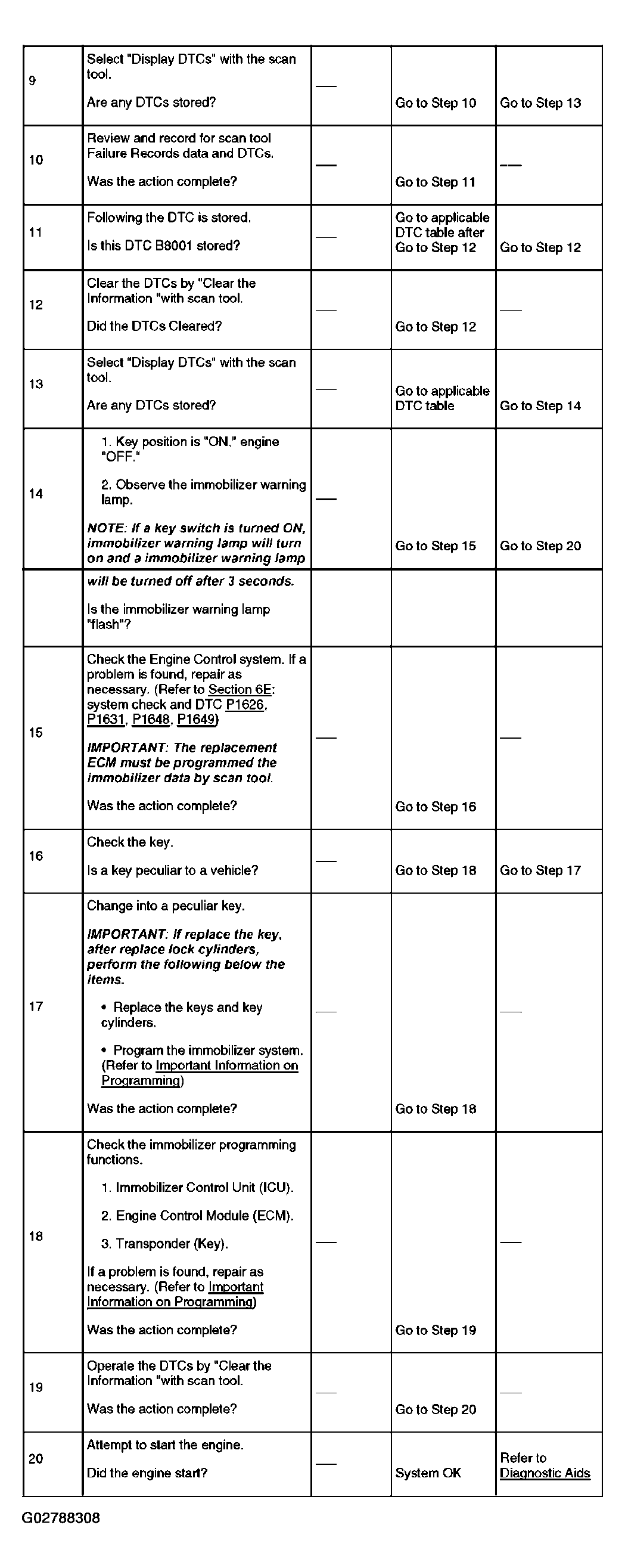

Fig 2: Diagnosis Procedure - Immobilizer System Check (2 Of 2)

Courtesy of ISUZU MOTOR CO.
