Engine Hood Lock: Installation

To install, follow the removal steps in the reverse order noting the following points:

1. Install the engine hood lock assembly (4) and temporarily tighten it.
2. Install the buffers (3).
3. Turn the buffers to adjust the height of the stepped portion between the hood (1) and the fender (2) to 1 mm (0.04 in).
4. Tighten the bolts securing the engine hood lock assembly to the specified torque.

   Torque:  10 N.m (87 lb in)

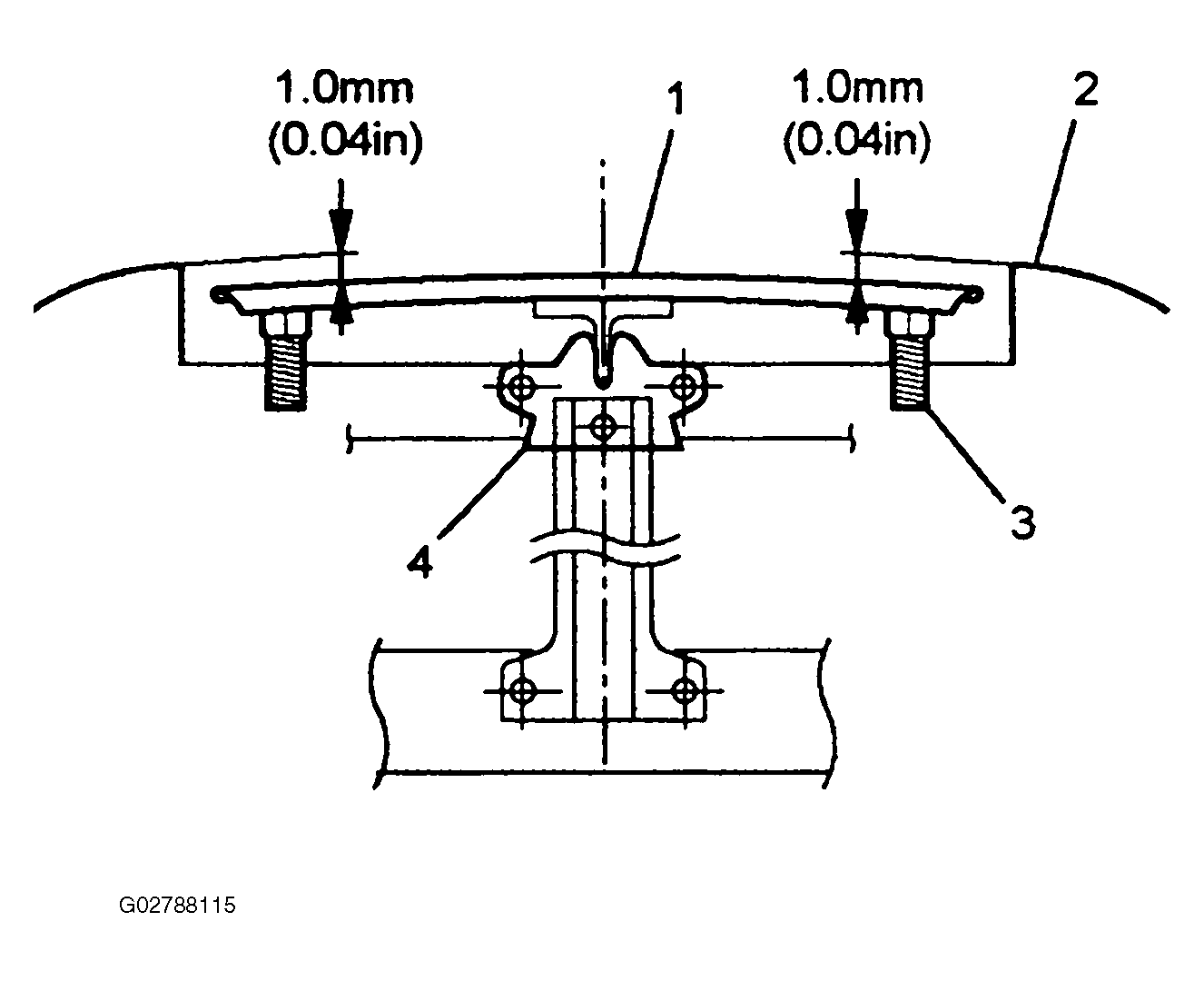

   Fig 1: Tightening Engine Lock Assembly Bolts

   Courtesy of ISUZU MOTOR CO.
5. Again turn the buffers until the stepped portion disappears (the fender and the hood are at the same level).
   Fig 2: Turning Buffers Until Stepped Portion Disappears

   Courtesy of ISUZU MOTOR CO.
6. Install the control cable to its original position, and check and see if the lock assembly and control lever work normally.
