Front Bumper: Installation
To install, follow the removal steps in reverse order noting the following points:
- Tight the front bumper back bar assembly fixing bolts to the specified torque.
Torque: 147 N.m (108 lb ft)
- Front bumper adjustment.

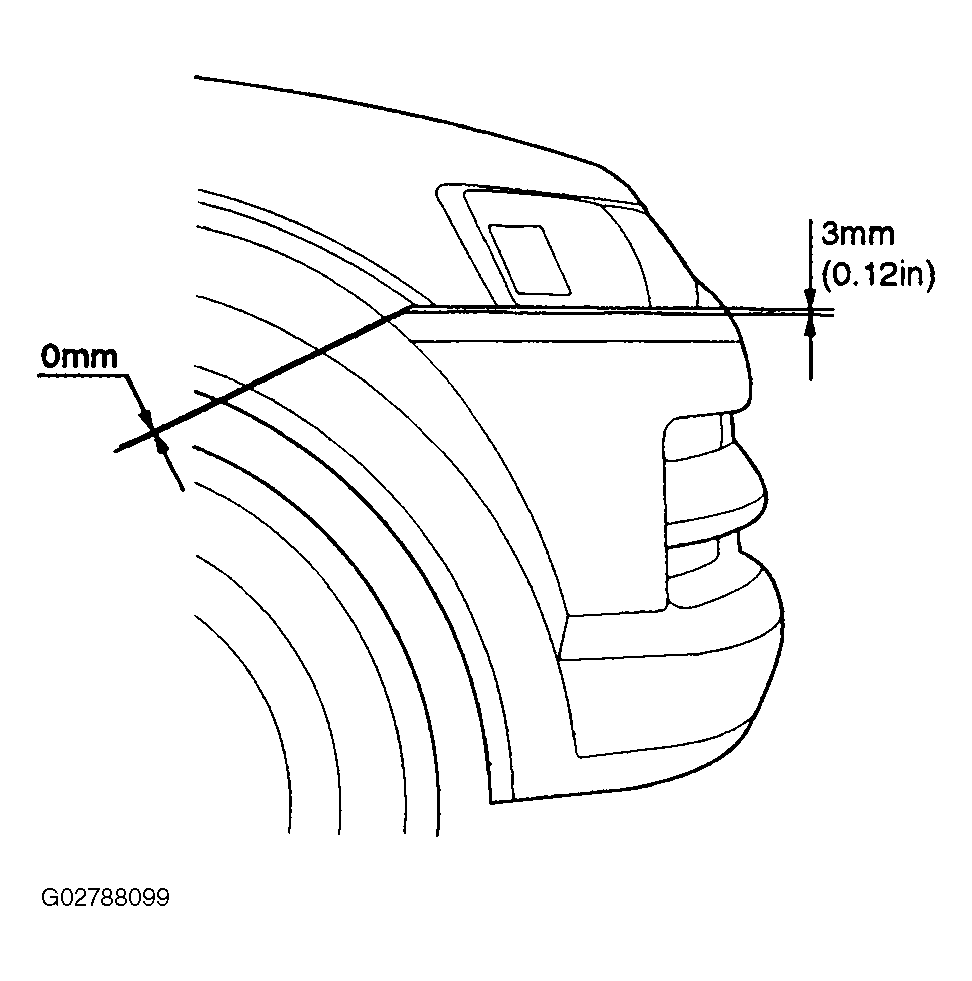

- When the bolts fixing front bumper assembly are tightened, adjustment should be made between the back bar and front side bumper so that there is a clearance of 3 mm (0.12 in) between the top of the bumper and the fender. The angled portion of the bumper must be flush with the fender.
