Front Fender Panel: Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Tighten the front fender panel fixing bolts to the specified torque.

   Torque:  7 N.m (61 lb in)

2. Check the fender and front door (1).

   Clearance:  5.0 mm (0.196 in)

   Height (step):  Flush

   Fig 1: Tightening Front Fender Panel Fixing Bolts

   Courtesy of ISUZU MOTOR CO.

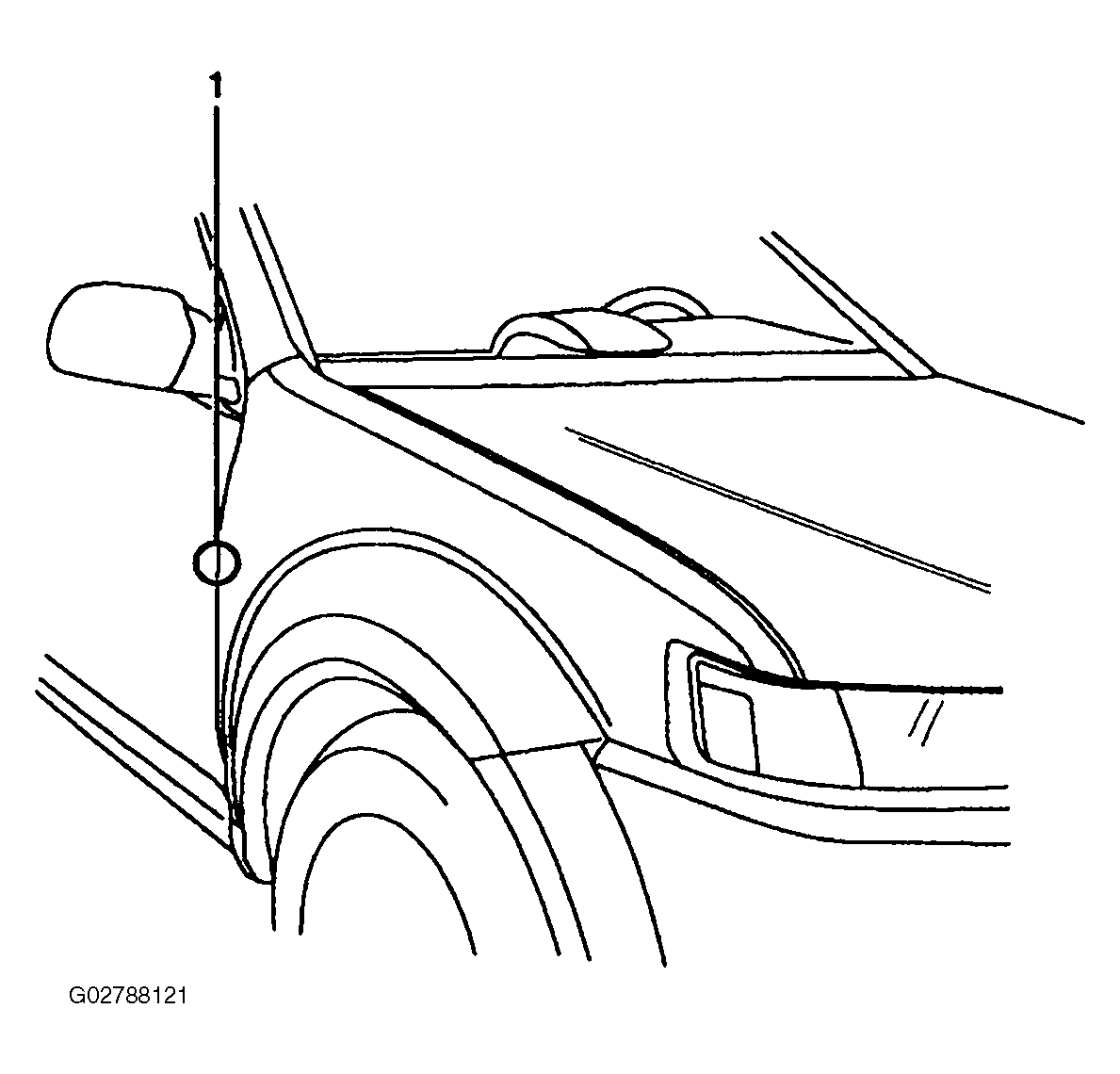

   Fig 2: Checking Fender & Front Door Clearance & Height

   Courtesy of ISUZU MOTOR CO.
