Front Fender Panel: Removal

1. Disconnect the battery ground cable.
2. Remove the front bumper fascia assembly.
   • Refer to FRONT BUMPER  .
3. Remove the front turn signal light assembly.
   • Remove the fixing screw and disconnect the connector.
   Fig 1: Removing Front Turn Signal Light Assembly

   Courtesy of ISUZU MOTOR CO.
4. Remove the rocker cover assembly.
   • Refer to LOCKER COVER AND ASSOCIATED PARTS .
5. Remove the inner liner.

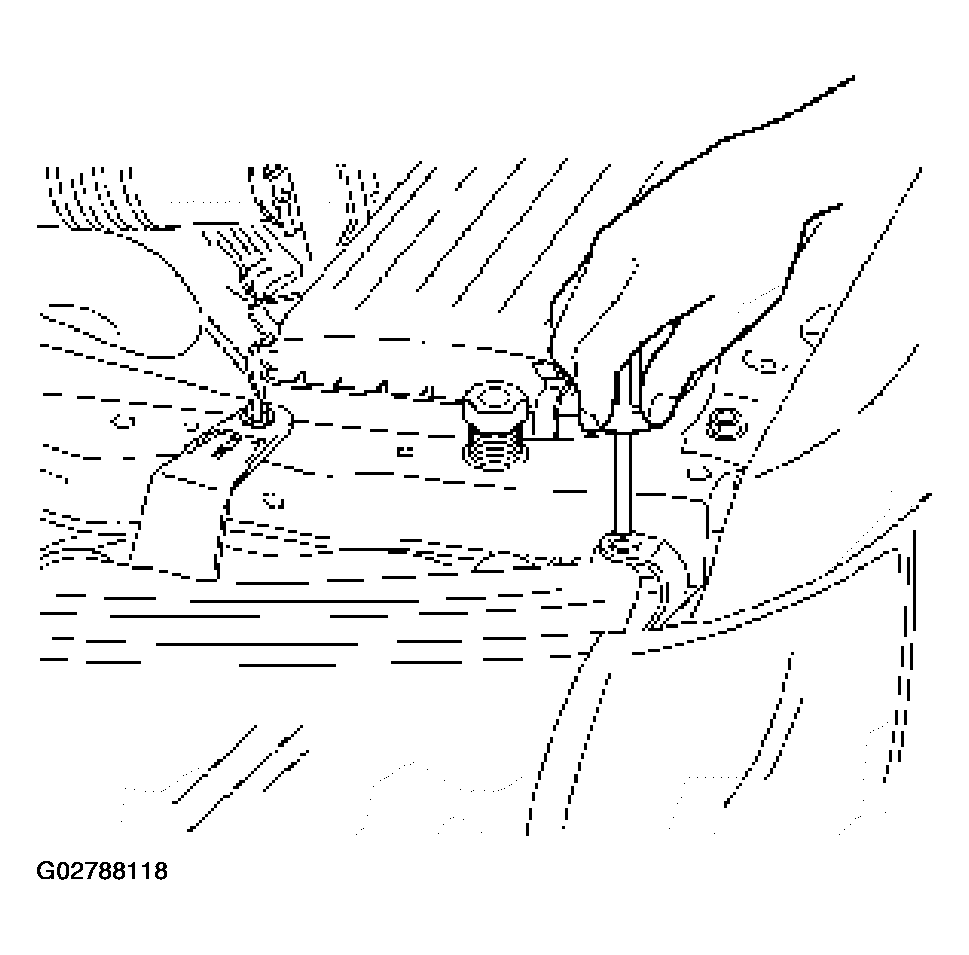

   Fig 2: Removing Inner Liner

   Courtesy of ISUZU MOTOR CO.
6. Remove the front fender panel (1).
   • Remove the eight fixing bolts.
7. Remove the engine compartment upper extension (2).

Fig 3: Removing Engine Compartment Upper Extension

Courtesy of ISUZU MOTOR CO.
