Front Wheel Speed Sensor and Associated Parts

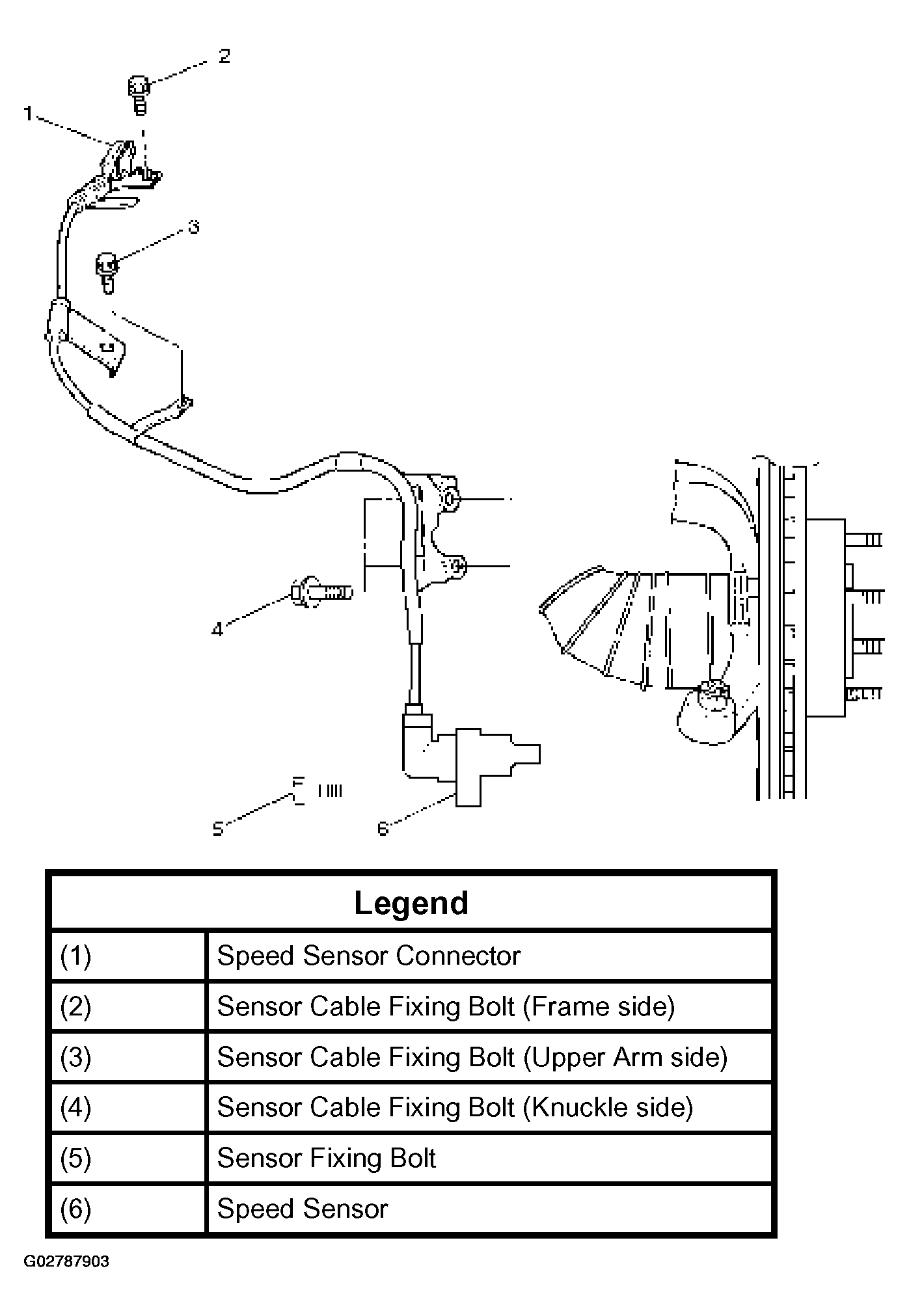

Fig 1: Identifying Front Wheel Speed Sensor & Associated Parts
G02787903Courtesy of ISUZU MOTOR CO.
