Rear Wheel Speed Sensor: Installation

  1. Install speed sensor (3).
  2. Tighten the sensor fixing bolt (2) to the specified torque.
  3. Torque:  24 N.m(17 lb ft)
  4. Connect harness connector (1).

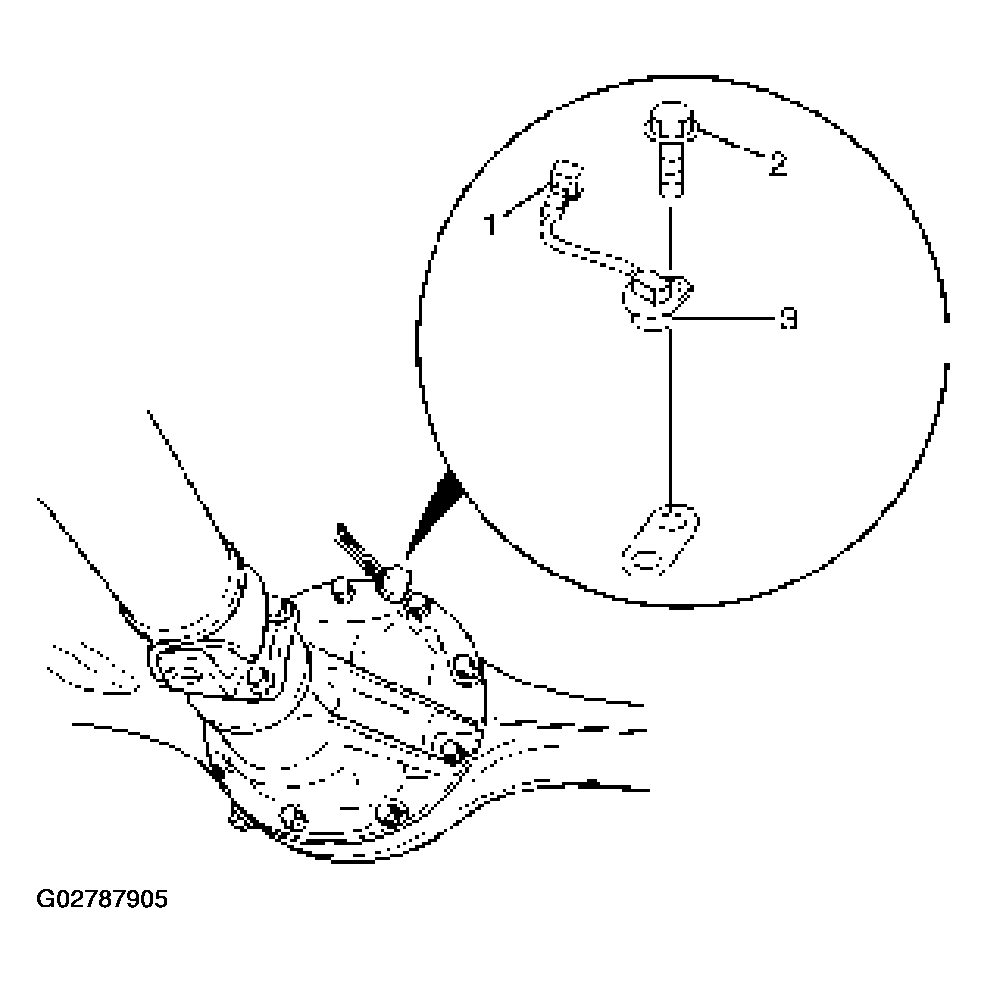

    Fig 1: Installing Rear Wheel Speed Sensor
    G02787905Courtesy of ISUZU MOTOR CO.
