Chart TC-1: Sensor Output Inspection Procedure
Chart TC-1: Sensor Output Inspection Procedure

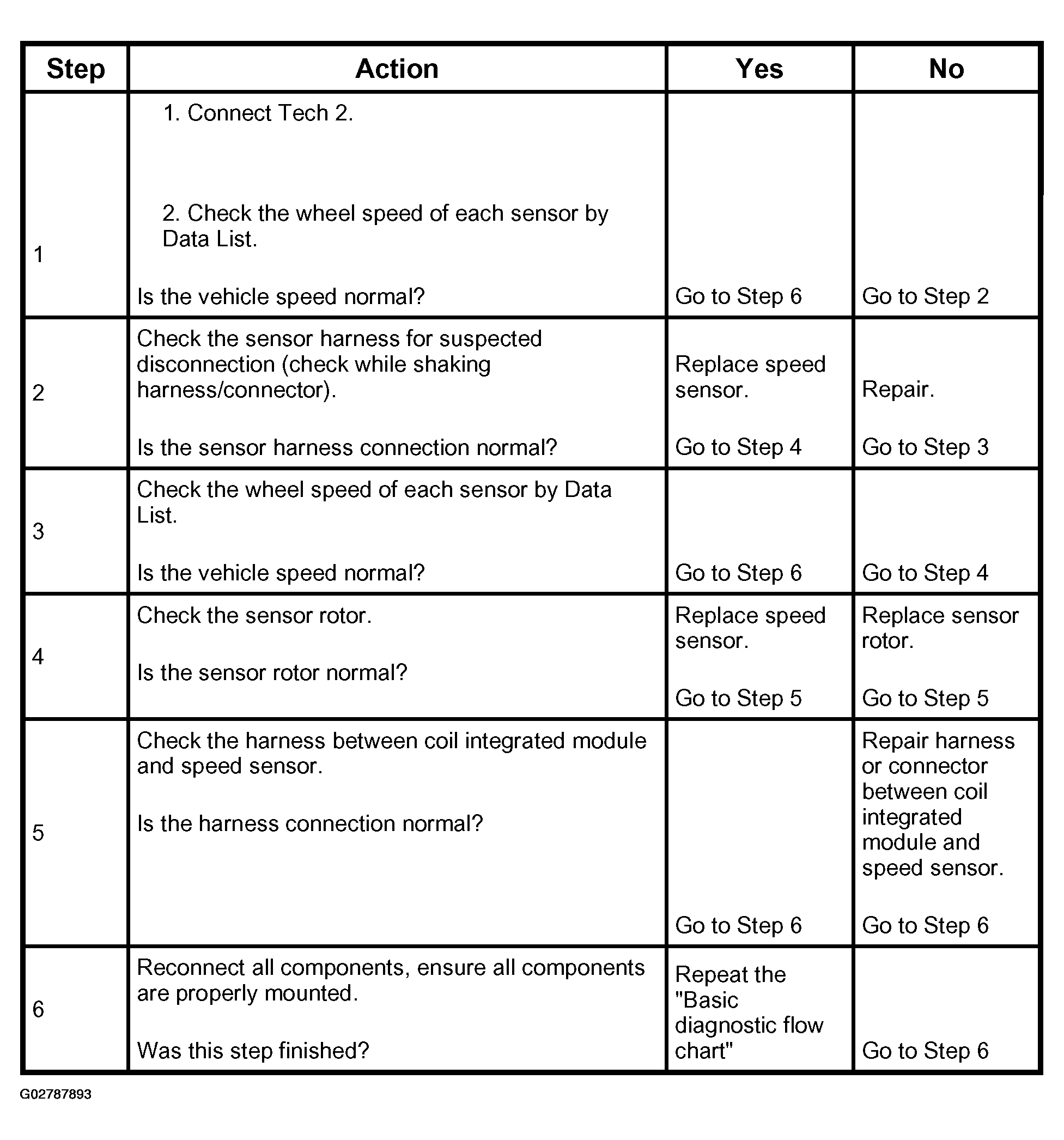

Fig 1: Unit Inspection Procedure Chart - Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
